Using the Maps app¶

About the Maps app¶

The Maps App was introduced in release 2.29 and serves as a replacement of the GIS App offering a more intuitive and user-friendly interface. The mapping engine from version 2.34 is based on WebGL technology, capable of showing thousands of features on a map simultaneously.

With the Maps app you can overlay multiple layers and choose among different basemaps. You can create thematic maps of areas and points, view facilities based on classifications, and visualize catchment areas for each facility. You can add labels to areas and points, and search and filter using various criteria. You can move points and set locations on the fly. Maps can be saved as favorites and shared with other users and groups, or downloaded as an image.

Note

To use predefined legends in the Maps app, you need to create them first in the Maintenance app.

• The layer panel on the left side of the workspace shows an overview of the layers for the current map:

• As layers are added, using the (+) Add layer button, they are arranged and managed in this panel.

• The basemap is always shown in the panel. The default basemap is OSM Light and is selected by default, unless a different basemap has been configured in the system settings. OpenStreetMap Detailed contains more map features and place names. There are 4 basemaps from Bing Maps, replacing Google Maps provided in previous versions. Bing Road and Bing Dark shows roads, borders and places. Use the dark version if the colors on your map layers are bright. Bing Aerial and Bing Aerial Labels shos satellite and detailed aerial imagery. Switch between them by selecting the desired image.

• The small arrow button to the right of the layer panel, at the top, allows the panel to be hidden or shown.

• The File button near the top left allows you to open and save maps. See using the maps file menu for more detailed information.

• The Download button next to the File button allows you to download the current map as a PNG image.

• The Interpretations button at top right opens an interpretations panel on the right side of the workspace. See viewing interpretations for more information.

• The + and - buttons on the map allow you to zoom in and out of the map respectively. The mouse scroll wheel zoom is continuous, allowing us to fit the map perfectly to your content.

• The rotate map button (triangle arrows) allows you to rotate and tilt the map to enhance the view of your data. Press the button (or the Control key on your keyboard) while moving your mouse to change the map view. Click to button again to reset the view.

• Fullscreen (four arrows) allows you to view the map in fullscreen. To exit fullscreen click the button again or the escape key on your keyboard.

• Zoom to content (bounded magnifying glass symbol) automatically adjusts the zoom level and map center position to put the data on your map in focus.

• Search (magnifying glass symbol) allows searching for and jumping to a location on the map.

• The ruler button allows you to measure distances and areas on the map.

• Right-click on the map to display the longitude and latitude of that location.

Basemaps

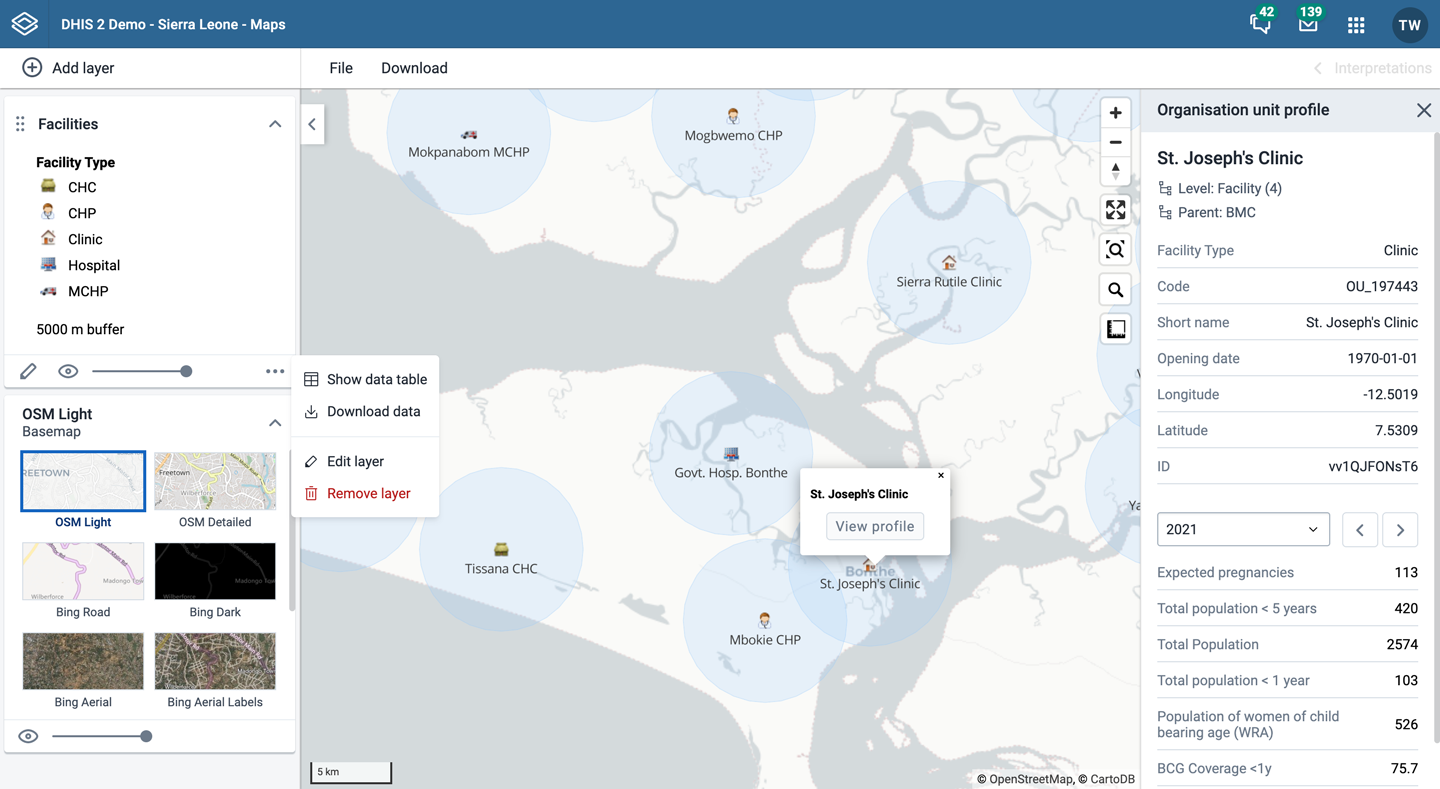

Basemap layers are represented by layer cards in the layer panel such as:

Along the top of the basemap card from left to right are:

• The title of the selected basemap

• An arrow symbol to collapse and expand the basemap card

In the middle of the basemap card is the list of available basemaps. The current basemap is highlighted.

Along the bottom of the basemap card is:

• An eye symbol for toggling the visibility of the layer

• A slider for modifying the layer transparency

Create a new map¶

1. In the Apps menu, click Maps. The DHIS2 Maps window opens.

2. Click the (+) Add layer button in the top left. You are presented with the layer selection dialog:



3. Select a layer to add to the current map. Possible options are:

   • Thematic

   • Events

   • Tracked entities

   • Facilities

   • Org units

   In addition, there are several layers provided by Google Earth Engine and other services:

   • Population

   • Population age groups

   • Building footprints

   • Elevation

   • Precipitation

   • Temperature

   • Landcover

   Labels overlay is an external layer defined in the Maintenance app.

Manage thematic layers¶

Thematic maps represent spatial variation of geographic distributions. Select your desired combination of indicator/data element, period and organisation unit level. If your database has coordinates and aggregated data values for these organisation units, they will appear on the map.

Note

You must generate the DHIS2 analytics tables to have aggregated data values available.

Thematic layers are represented by layer cards in the layer panel such as:

Along the top of the thematic card from left to right are:

• A grab field to allow dragging and re-ordering layers with the mouse

• The title and period associated with the layer

• An arrow symbol to collapse and expand the thematic card

In the middle of the thematic card is a legend indicating the value ranges displayed on the layer.

Along the bottom of the thematic card from left to right are:

• An edit (pencil) button to open the layer configuration dialog

• An eye symbol for toggling the visibility of the layer

• A slider for modifying the layer transparency

• A more actions (three dots) button with additional options:

• A data table toggle button to show or hide the data table associated with the layer

• Download data allows you to download the data for this layer in GeoJSON format for use in other mapping software

• Edit layer is the same as edit button above

• Remove layer will remove this layer from the current map.

Create a thematic layer¶

To create an event layer, choose Thematic on the Add layer selection. This opens the Events layer configuration dialog.

1. In the DATA tab:



   • Select a data type and then select respectively the group and the target element. The available fields depend on the type of item selected.

   • Select a value from the Aggregation type field for the data values to be shown on the map. By default, "By data element" is selected. Alternative values are: Count; Average; Sum; Standard deviation; Variance; Min; Max. See also Aggregation operators.

   • Only show completed events: Includes only completed events in the aggregation process. This is useful when you want to exclude partial events in indicator calculations. Available for indicators, program indictors and event data items.

2. In the PERIOD tab



   • select the time span over which the thematic data is mapped. You can select either a relative or a fixed period.

   • Relative period

     In the Period type field select Relative, then select one of the relative periods, for example Last year or Last 12 months, in the Period field.

     A default relative period for analysis can be set in the Systems Settings app.

     If you select a relative period covering multiple years/months/weeks/days the layer can be displayed as

     • Single (aggregate)

     Show aggregate values for the relative period selected (default).

     • Timeline

     Includes a timeline allowing you to step through the periods. Only one timeline layer can be added to the same map.

     • Split map views

     Show multiple maps allowing you to compare different periods side by side. Supported for relative periods with 12 items or below. Can not be combined with other layer types.

   • Fixed period

     In the Period type field select period length, then select the target in the Period field.

   • Start/end dates

     In the Period type field select Start/end dates and fill in a start date and an end date.

3. In the ORG UNITS tab:



   • Select the organisation units you want to include in the layer. It is possible to select either

   • One or more specific organisation units, organisation unit levels in the hierarchy, organisation unit groups, or

   • A relative level in the organisation unit hierarchy, with respect to the user. By selecting a User organisation unit the map data will appear differently for users at different levels in the organisation unit hierarchy.

   • Use associated geometry: This dropdown will only show if there are any additional geometry available for your organisation units. This is typically used to show facility catchment areas.

4. In the FILTER tab:



   • Click ADD FILTER and select an available data item to add a new filter to the data set.

   • Select a data dimension from the dropdown box. You can reduce the number of dimensions shown by using the search field. Click on the name to select a dimension.

   • When a dimension is selected you get a second dropdown with dimension items. Check the items you want to include in the filter.

   Multiple filters may be added. Click the trash button on the right of the filter to remove it.

5. In the STYLE tab:



   • Select either Choropleth or Bubble maps.

   • Choropleth will assign a color to each org unit shape according to the data value. This is the recommended technique if the data is normalised (per capita).

   • Bubble map will show data values as proportional circles. Use this technique if the data is not normalised (absolute numbers). The circles are placed in the center of each org unit.

   • Set the Low radius and High radius for the proportional circles or the point facilities. The circles will be scaled between low and high radius according to the data value. The radius needs to be between 0 and 50 px.

   • Show labels: Allows org unit names to be shown on the layer. Font size, weight, style and color can be modified here.

   • Show no data: By default org units with missing data values will not show on the map. Check this box if you want to show them with a color. Click the color to change it.

   • Select the legend type:

   • Automatic color legend: the application will create a legend for you based on what classification method, number of classes and the color scale you select. Set Classification to either:

     • Equal intervals

     the range of each interval will be (highest data value - lowest data value / number of classes)

     • Equal counts

     the legend creator will try to distribute the organisation units evenly.

   • Predefined color legend: Select between the predefined legends.

   • Single color legend: Select the color of the bubbles or circles. Only available for bubble maps.

6. Click ADD LAYER.

Modify a thematic layer¶

1. In the layer panel, click the edit (pencil) icon on the thematic layer card.

2. Modify the setting on any of the tabs as desired.

3. Click UPDATE LAYER.

Filter values in a thematic layer¶

Thematic layers have a data table option that can be toggled on or off from the thematic layer card.

The data table displays the data forming the thematic layer.

• clicking on a title will sort the table based on that column; toggling between ascending and descending.

• entering text or expressions into the filter fields below the titles will apply those filters to the data, and the display will adjust according to the filter. The filters are applied as follows:

• NAME

  filter by name containing the given text

• VALUE

  filter values by given numbers and/or ranges, for example: 2,>3&\<8

• LEGEND

  filter by legend containing the given text

• RANGE

  filter by ranges containing the given text

• LEVEL

  filter level by numbers and/or ranges, for example: 2,>3&\<8

• PARENT

  filter by parent names containing the given text

• ID

  filter by IDs containing the given text

• TYPE

  filter by GIS display types containing the given text

• COLOR

  filter by color names containing the given text

Note

Data table filters are temporary and are not saved with the map layers as part of the favourite.

Search for an organisation unit¶

The NAME filter field in the data table provides an effective way of searching for individual organisation units.

Open organisation unit profile¶

You can open the organisation unit profile in three ways:

1. Click on any of the organisasjon units shown on the map, and click the View profile button in the popup.

2. Right-click one of the organisation units on the map, and select View profile from the menu.

3. Click on an organisation unit row in the data table.

Navigate between organisation hierarchies¶

When there are visible organisation units on the map, you can easily navigate up and down in the hierarchy without using the level/parent user interface.

1. Right-click one of the organisation units.

2. Select Drill up one level or Drill down one level.

   The drill down option is disabled if you are on the lowest level or if there are no coordinates available on the level below. Likewise the drill up option is disabled from the highest level.

Remove thematic layer¶

To clear all data in a thematic layer:

1. In the layer card to the left, click the more actions (three dots) icon and then on Remove layer.

   The layer is removed from the current map.

Manage event layers¶

The event layer displays the geographical location of events registered in the DHIS2 tracker. Provided that events have associated point or polygon coordinates, you can use this layer to drill down from the aggregated data displayed in the thematic layers to the underlying individual events or cases.

You can also display aggregated events for facilities or organisation units. You do this through a thematic layer using event data items. This is useful when you only have the coordinates for the Org Unit under which the events are recorded.

Event layers are represented by layer cards in the layer panel such as:

Along the top of the event card from left to right are:

• A grab field to allow dragging and re-ordering layers with the mouse

• The title and period associated with the layer

• An arrow symbol to collapse and expand the event card

In the middle of the event card is a legend indicating the styling of the layer.

Along the bottom of the event card from left to right are:

• An edit (pencil) button to open the layer configuration dialog

• An eye symbol for toggling the visibility of the layer

• A slider for modifying the layer transparency

• A more actions (three dots) button with additional options:

• A data table toggle button to show or hide the data table associated with the layer

• Download data allows you to download the data for this layer in GeoJSON format for use in other mapping software

• Edit layer is the same as edit button above

• Remove layer will remove this layer from the current map.

Create an event layer¶

To create an event layer, choose Events on the Add layer selection. This opens the Events layer configuration dialog.

1. In the DATA tab:



   • Select a program and then select a program stage. The Stage field is only shown once a program is selected.

   If there is only one stage available for the selected program, the stage is automatically selected.

   • Select a value from the Coordinate field for the positions shown on the map. By default, "Event location" is selected. Depending on the data elements or attributes that belong to a program, other coordinates such as "Household position" are available.

   • By default all events with coordinates are shown on the map. Use the Event status field to only show events having one status: Active, Completed, Schedule, Overdue or Skipped.

2. In the PERIOD tab



   • select the time span for when the events took place. You can select either a fixed period or a relative period.

   • Relative period

     In the Period field, select one of the relative periods, for example This month or Last year.

     A default relative period for analysis can be set in the Systems Settings app.

   • Fixed period

     In the Period field, select Start/end dates and fill in a start date and an end date.

3. In the ORG UNITS tab:



   • Select the organisation units you want to include in the layer. It is possible to select either

   • One or more specific organisation units, or

   • A relative level in the organisation unit hierarchy, with respect to the user. By selecting a User organisation unit the map data will appear differently for users at different levels in the organisation unit hierarchy.

4. In the FILTER tab:



   • Click ADD FILTER and select an available data item to add a new filter to the data set.

   • For data item of type option set, you can select any of the options from the dropdown box by using the down-wards arrow or by start typing directly in the box to filter for options.

   • For data item of type number, you can select operators like equal, not equal, greater than or less than.

   • For data item of type boolean (yes/no), you can check the box if the condition should be valid or true.

   • For data item of type text you will get two choices: Contains implies that the query will match all values which contains your search value, and Is exact implies that only values which is completely identical to your search query will be returned.

   Multiple filters may be added. Click the trash button on the right of the filter to remove it.

5. In the STYLE tab:



   • Select Group events to group nearby events (cluster), or View all events to display events individually.

   • Select a color for the event or cluster points.

   • Select the radius (between 1 and 20) for the events.

   • Select Show buffer to display visual buffer around each event. The radius of the buffer can be modified here. This option is only available if you select View all events above.

   • Select a Style by data element to colorise the events according to a data value. If you also select to group events, the culsters will be displayed as small donut charts showing the distribution of the data values. The options varies for different data types:

   • Option sets: Select a color for each option in an option set. You can set default colors for an option in the Maintenance app.

   • Numbers: You can style a numeric data element in the same way as thematic layers using automatic or predefined legends.

   • Booleans: Select a color for true/yes and another for false/no.

6. Click ADD LAYER.

Modify an event layer¶

1. In the layer panel, click the edit (pencil) icon on the event layer card.

2. Modify the setting on the DATA, PERIOD, FILTER, ORG UNIT and STYLE tabs as desired.

3. Click UPDATE LAYER.

Listing and filtering events¶

Event layers have a data table option that can be toggled on or off from the event layer card.

The data table displays the data forming the event layer.

• clicking on a title will sort the table based on that column; toggling between ascending and descending.

• entering text or expressions into the filter fields below the titles will apply those filters to the data, and the display will adjust according to the filter. The filters are applied as follows:

• ID

  filter by event IDs containing the given text

• ORG UNIT

  filter by org unit name containing the given text

• EVENT TIME

  filter by event time containing the given text

• TYPE

  filter by GIS display types containing the given text

• Style by data element: If events are styled by a data element (e.g. gender) both the data value and the color can be filtered.

• Display in reports: Data elements checked to display in reports will be shown in separate columns (see below how to add them).

• Numeric data values can be filtered by given numbers, and/or ranges, for example: 2,>3&\<8

Note

Data table filters are temporary and are not saved with the map layers as part of the favourite.

Modify information in event data table and popups¶

You can modify the information displayed in the event pop-up window.

1. Open the Maintenance app.

2. Select Program.

3. Click the program you want to modify and select 2 Assign data elements.

4. For every data element you want to display in the pop-up window, select corresponding Display in reports.

5. Click Save.

Download raw event layer data¶

The raw data for event layers can be downloaded in GeoJSON format for more advanced geo-analytics and processing in desktop GIS software such as QGIS. The downloaded data includes all individual events as GeoJSON features, including attributes for each data element selected for Display in reports.

• In the layer card to the left, click the more actions (three dots) icon and then on Download data

• Select the ID format to use as the key for Data Element values in the downloaded GeoJSON file. There are three options available:

• ID - Use the unique ID of the data element

• Name - Use the human-friendly name of the data element (translated)

• Code - Use the code of the data element

• Select whether or not to Use human-readable keys for other Event attributes, such as Program Stage, Latitude, Longitude, Event Data, and Organization Unit ID, Name, and Code. When this option is not selected these values will be the computer-friendly ID instead of the human-readable (and translated) name.

• Click the DOWNLOAD button to generate and download a GeoJSON file. The data will be requested from the DHIS2 server and processed by the maps application. This operation may take several minutes to complete.

• Once the GeoJSON file has been downloaded it can be imported into most standard GIS software applications.

Note that the downloaded data does not include style information as it is not natively supported by the GeoJSON format. Styles can optionally be recreated in external GIS applications using the attributes of each feature.

Clear event layer¶

To clear all event layer data in a map:

1. In the layer card to the left, click the more actions (three dots) icon and then on Remove layer.

   The layer is removed from the current map.

Manage tracked entity layers¶

The tracked entity layer displays the geographical location of tracked entities registered in the DHIS2. Provided that tracked entities have associated point or polygon coordinates, you can explore these on a map.

Tracked entity layers are represented by layer cards in the layer panel such as:

Along the top of the tracked entity card from left to right are:

• A grab field to allow dragging and re-ordering layers with the mouse.

• The title and period associated with the layer.

• An arrow symbol to collapse and expand the tracked entity card.

In the middle of the tracked entity card is a legend indicating the styling of the layer.

Along the bottom of the tracked entity card from left to right are:

• An edit (pencil) button to open the layer configuration dialog

• An eye symbol for toggling the visibility of the layer

• A slider for modifying the layer transparency

• A more actions (three dots) button with additional options:

• Edit layer is the same as edit button above

• Remove layer will remove this layer from the current map.

Create a tracked entity layer¶

To create an tracked entity layer, choose Tracked entities on the Add layer selection. This opens the Tracked entity layer configuration dialog.

1. In the DATA tab:



   • Select the Tracked Entity Type you want to show on the map.

   • Select a Program where the tracked entities belong.

   • Use the Program status field to select the enrollment status of tracked entities to include: All, Active, Completed or Cancelled.

   • Set the Follow up status of the tracked entity for the given program.

2. In the Relationships tab



   Caution

   Displaying tracked entity relationships in Maps is an experimental feature

   • If a Tracked Entity Type with has been selected, you can select the Display Tracked Entity relationships checkbox

   • Once checked, you can select the type of relationship to display on the map from the dropdown list. Only relationships FROM the selected Tracked Entity type are available.

3. In the PERIOD tab



   • If no program is selected, you can set start and end dates when the tracked entities were last updated.

   • If a program is selected, you can set the period when tracked entities were last updated or when they were registered or enrolled in the program.

4. In the ORG UNITS tab:



   • Select the organisation units you want to include in the layer. You have 3 selection modes:

   • Selected only: Include tracked entities belonging to selected org units only.

   • Selected and below: Included tracked entities in and right below selected org units.

   • Selected and all below: Included tracked entities in and all below selected org units.

5. In the STYLE tab:



   • Select a color for the tracked entities points and polygons.

   • Select the point size (radius between 1 and 20) for the points.

   • Select Show buffer to display visual buffer around each tracked entity. The buffer distance in meters can be modified here.

   • If a relationship type has been selected on the relationships tab you can select color, point size, and line color for relationships and related tracked entities instances

6. Click ADD/UPDATE LAYER.

Modify a tracked entity layer¶

1. In the layer panel, click the edit (pencil) icon on the tracked entity layer card.

2. Modify the setting on the DATA, PERIOD, ORG UNIT and STYLE tabs as desired.

3. Click UPDATE LAYER.

Clear a tracked entity layer¶

To clear a tracked entity layer from a map:

1. In the layer card to the left, click the more actions (three dots) icon and then on Remove layer.

   The layer is removed from the current map.

Manage facility layers¶

The facility layer displays icons that represent types of facilities. Polygons do not show up on the map, so make sure that you select an organisation unit level that has facilities.

A polygon is an enclosed area on a map representing a country, a district or a park.

Facility layers are represented by layer cards in the layer panel such as:

Along the top of the facilities card from left to right are:

• A grab field to allow dragging and re-ordering layers with the mouse

• The Facilities title

• An eye symbol for toggling the visibility of the layer

• An arrow symbol to collapse and expand the facilities card

In the middle of the facilities card is a legend indicating the group set representation.

Along the bottom of the facilities card from left to right are:

• An edit (pencil) button to open the layer configuration dialog

• A slider for modifying the layer transparency

• A more actions (three dots) button with additional options:

• A data table toggle button to show or hide the data table associated with the layer

• Download data allows you to download the data for this layer in GeoJSON format for use in other mapping software

• Edit layer is the same as edit button above

• Remove layer will remove this layer from the current map.

Create a facility layer¶

To create facility layer, choose Facilities on the **Add layer**selection. This opens the Facility layer configuration dialog.

1. In the ORGANISATION UNITS tab



   • Select the organisation unit level(s) and/or group(s) from the selection fields on the right hand side.

   • Select the organisation units you want to include in the layer. It is possible to select either

   • One or more specific organisation units, or

   • A relative level in the organisation unit hierarchy, with respect to the user. By selecting a User organisation unit the map data will appear differently for users at different levels in the organisation unit hierarchy.

   • The system administrator can set the default organsation unit level containing facilities in the System Settings app.

   • Use associated geometry: This dropdown will only show if there are any additional geometry available for your organisation units. This is typically used to show facility catchment areas.

2. In the STYLE tab:



   • Select any styling you wish to apply to the facilities.

   • Show labels

     Allows labels to be shown on the layer. Font size, weight and color can be modified here.

   • Show buffer

     Allows a visual buffer to be displayed on the layer around each facility. The radius of the buffer can be modified here. Buffer option is not available if asscoiated geometry is used.

   • Facilities can be styled an organisation unit group set using different icons. Select a group set from the list of organisation unit group sets defined for your DHIS2 instance. The system administrator can set the default organsation unit group set in the System Settings app.

   • If no group set is selected, the facilities will be shown as filled circles. The color and the circle radius can be changed.

3. Click ADD LAYER.

Create or modify a facility layer¶

1. In the layer panel, click the edit (pencil) icon on the facility layer card.

2. Modify the setting on the GROUP SET, ORGANISATION UNITS and STYLE tabs as desired.

3. Click UPDATE LAYER.

Filter values in a facility layer¶

Facility layers have a data table option that can be toggled on or off from the facility layer card.

The data table displays the data forming the facility layer.

• clicking on a title will sort the table based on that column; toggling between ascending and descending.

• entering text or expressions into the filter fields below the titles will apply those filters to the data, and the display will adjust according to the filter. The filters are applied as follows:

• NAME

  filter by name containing the given text

• ID

  filter by IDs containing the given text

• TYPE

  filter by GIS display types containing the given text

Note

Data table filters are temporary and are not saved with the map layers as part of the favourite.

Search for a facility¶

The NAME filter field in the data table provides an effective way of searching for individual facilities.

Open organisation unit profile¶

You can open the organisation unit profile in three ways:

1. Click on any of the organisasjon units shown on the map, and click the View profile button in the popup.

2. Right-click one of the organisation units on the map, and select View profile from the menu.

3. Click on an organisation unit row in the data table.

Remove facility layer¶

To clear all data in a facility layer:

1. In the layer card to the left, click the more actions (three dots) icon and then on Remove layer.

   The layer is removed from the current map.

Manage org unit layers¶

The org unit layer displays the borders and locations of your organisation units. This layer is particularly useful if you are offline and don't have access to background maps.

Org unit layers are represented by layer cards in the layer panel such as:

Along the top of the org unit card from left to right are:

• A grab field to allow dragging and re-ordering layers with the mouse

• The Organisation unit title

• An arrow symbol to collapse and expand the org unit card

Along the bottom of the org unit card from left to right are:

• An edit (pencil) button to open the layer configuration dialog

• An eye symbol for toggling the visibility of the layer

• A slider for modifying the layer transparency

• A more actions (three dots) button with additional options:

• A data table toggle button to show or hide the data table associated with the layer

• Download data allows you to download the data for this layer in GeoJSON format for use in other mapping software

• Edit layer is the same as edit button above

• Remove layer will remove this layer from the current map.

Create an org unit layer¶

To create an org unit layer, choose Org units on the Add layer selection. This opens the org unit layer configuration dialog.

1. In the ORGANISATION UNITS tab



   • select the organisation unit level(s) and/or group(s) from the selection fields on the right hand side.

   • Select the organisation units you want to include in the layer. It is possible to select either

   • One or more specific organisation units, or

   • A relative level in the organisation unit hierarchy, with respect to the user. By selecting a User organisation unit the map data will appear differently for users at different levels in the organisation unit hierarchy.

   • Use associated geometry: This dropdown will only show if there are any additional geometry available for your organisation units. This is typically used to show facility catchment areas.

2. In the STYLE tab:



   • select any styling you wish to apply to the org unitss.

   • Labels

     Allows labels to be shown on the layer. Font style can be modified here.

   • Boundary color

     Allows the boundary or outline color of the organisation units to be changed.

   • Point radius

     Sets the base radius when point type elements, such as facilities, are presented on the org unit layer.

   • Organisation units can be styled an organisation unit group set using different colors. Select a group set from the list of organisation unit group sets defined for your DHIS2 instance.

3. Click ADD LAYER.

Modify an org unit layer¶

1. In the layer panel, click the edit (pencil) icon on the org unit layer card.

2. Modify the setting on the ORGANISATION UNITS and STYLE tabs as desired.

3. Click UPDATE LAYER.

Filter values in an org unit layer¶

Org unit layers have a data table option that can be toggled on or off from the org unit layer card.

The data table displays the data forming the org unit layer.

• clicking on a title will sort the table based on that column; toggling between ascending and descending.

• entering text or expressions into the filter fields below the titles will apply those filters to the data, and the display will adjust according to the filter. The filters are applied as follows:

• NAME

  filter by name containing the given text

• LEVEL

  filter level by numbers and/or ranges, for example: 2,>3&\<8

• PARENT

  filter by parent names containing the given text

• ID

  filter by IDs containing the given text

• TYPE

  filter by GIS display types containing the given text

Note

Data table filters are temporary and are not saved with the map layers as part of the favourite.

Search for an organisational unit¶

The NAME filter field in the data table provides an effective way of searching for individual organisational units displayed in the org unit layer.

Open organisation unit profile¶

You can open the organisation unit profile in three ways:

1. Click on any of the organisasjon units shown on the map, and click the View profile button in the popup.

2. Right-click one of the organisation units on the map, and select View profile from the menu.

3. Click on an organisation unit row in the data table.

Navigate between organisation hierarchies¶

You can modify the target of the org unit layer in the hierarchy without using the level/parent user interface.

1. Right-click one of the organisation units.

2. Select Drill up one level or Drill down one level.

   The drill down option is disabled if you are on the lowest level. Likewise the drill up option is disabled from the highest level.

Remove org unit layer¶

To clear all data in an org unit layer:

1. In the layer card to the left, click the more actions (three dots) icon and then on Remove layer.

   The layer is removed from the current map.

Manage Earth Engine layer¶

The layers from Google Earth Engine let you display and aggregate external data to your organisation units. Use the population layer to calculate the number of people living in a district, or within a distance from a health facility. The elevation layer allows you to find the lowest, highest and mean elevation. Use the landcover layer to see the forest cover, croplands or urban areas, and calculate the percentage for each organisation unit.

The following layers are supported:

• Population: Detailed population data from WorldPop showing the estimated number of poeple living in an area. Available for yearly periods from 2000 and onwards.

• Population age groups: Estimated number of people living in an area, grouped by age and gender.

• Building footprints: The outlines of buildings derived from high-resolution satellite imagery. Only for the continent of Africa.

• Elevation: Elevation above sea level.

• Precipitation: The values are in millimeters within 5 days periods. Updated monthly, during the 3^rd week of the following month. Collected from satellite and weather stations on the ground.

• Temperature: Land surface temperatures collected from satellite. Blank spots will appear in areas with a persistent cloud cover.

• Land cover: 17 distinct landcover types collected from satellites by NASA.

Create an Earth Engine layer¶

To create an Earth Engine layer, choose the desired layer from the Add layer selection. This opens the layer configuration dialog.

1. In the DATA tab:



   • For "population age groups" you can select the age/gender groups you would like to include when aggregating the data.

   • Select the aggregation methods you would like to use when calculating values for the selected organisation units.

   • Sum: Calculates the total number within each organisation unit. Recommended to use for the population layers.

   • Min: Returns the minimum value in the layer unit displayed below the selection. For population layers it will be the minimum people per hectar. For elevation layer it will return the lowest elevation (meters above sea level).

   • Max: Returns the maximum value in the layer unit. For population layers it will be the minimum people per hectar. For elevation layer it will return the highest elevation for each organisation unit.

   • Mean: Returns the mean value in the layer unit. For population layers it will be the mean people per hectar. For precipitation layer it will be the mean rainfall in millimeters across the organisation unit.

   • Median: Returns the mean value in the layer unit. For population layers it will be the median people per hectar. For temperature layer it will be the median °C during daytime for the organisation unit.

   • Standard deviation: Returns the standard deviation value in the layer unit.

   • Variance: Returns the variance value in the layer unit.

2. In the PERIOD tab



   • Select the period for the data source. The available periods are set by data provider. There is only one period for the "population age groups" layer, while the "population" layer has yearly data available from 2000 and onwards. Precipitation data is available in 5 days periods, and temperature data for 8 days periods.

3. In the ORG UNITS tab:



   • Select the organisation units you where you want to see aggregated data values. It is possible to select either

   • One or more specific organisation units, organisation unit levels in the hierarchy, organisation unit groups, or

   • A relative level in the organisation unit hierarchy, with respect to the user. By selecting a User organisation unit the map data will appear differently for users at different levels in the organisation unit hierarchy.

   • Use associated geometry: This dropdown will only show if there are any additional geometry available for your organisation units. This is typically used to calculate values for facility catchment areas.

   • Building footprints: Building counts are only available for smaller organisation unit areas.

4. In the STYLE tab



   • Modify the parameters specific to the layer type.

   • Adjust the legend range, steps and colors, as desired.

   • If you select organisation units having a single point coordinate (facilities) you can set a radius buffer to calculate the data value within. A radius of 5000 meters will aggregate all values available within a 5 km distance from a facility. Buffer option is not available if associated geometry is used.

5. Click ADD LAYER.

Click on the map regions or facilities to see the aggregation result for that organisation unit.

Listing of data values¶

Earth Engine layers have a data table option that can be toggled on or off from the layer card.

The data table displays all the aggregated values for the organisation units selected.

• clicking on a title will sort the table based on that column; toggling between ascending and descending.

• entering text or expressions into the filter fields below the titles will apply those filters to the data, and the display will adjust according to the filter. The filters are applied as follows:

• NAME

filter by org unit name containing the given text

• ID

filter by event IDs containing the given text

• TYPE

filter by GIS display types containing the given text

• AGGREGATION VALUES

there is one column for each of the aggregation types selected

numeric data values can be filtered by given numbers, and/or ranges, for example: 2,>3&\<8

Note

Data table filters are temporary and are not saved with the map layers.

Add external map layers¶

External map layers are represented as either:

• Basemaps

These are available in the basemap card in the layers panel and are selected as any other basemap.

• Overlays

These are available in the Add layer selection. Unlike basemaps, overlays can be placed above or below any other overlay layers.

Overlay layers are represented by additional layer cards in the layer panel such as:

Along the top of the overlay card from left to right are:

• A grab field to allow dragging and re-ordering layers with the mouse

• The title of the external map layer

• An arrow symbol to collapse and expand the overlay card

In the middle of the card is a legend if the layer has one.

Along the bottom of the overlay card from left to right are:

• A slider for modifying the layer transparency

• A delete (trash can) icon to remove the layer from the current thematic map.

Organisation unit profile¶

The organisation unit profile shows detailed information about each organisation unit. You can open the profile from org unit, facility and thematic layers.

You can open the organisation unit profile in three ways:

1. Click on any of the organisasjon units shown on the map, and click the View profile button in the popup.

2. Right-click one of the organisation units on the map, and select View profile from the menu.

3. Click on an organisation unit row in the data table.

The profile will show on the right side of the map. The profile contents is set by the system administrator.

File menu¶

Use the File menu to manage your maps. Several menu items will be disabled until you open or save a map.

Saving your maps makes it easy to restore them later. It also gives you the opportunity to share them with other users as an interpretation or put it on the dashboard. You can save all types of layer configurations as a favorite.

Create a new map¶

Click File > New.

NB! This will clear the current map layers you have without saving.

Open a new map¶

1. Click File > Open. A dialog box opens with a list of maps.

2. Find the favorite you want to open. You can either use \< and > or the search field to find a saved map. The list is filtered on every character that you enter. You can filter the list by selecting Show all, Created by me or Created by others.

3. Click the name of the map you want to open.

Save a map¶

When you have created a map it is convenient to save it for later use:

1. Click File > Save.

2. Enter a Name (required) and a Description (optional) the first time you save a map.

3. Click SAVE.

Save a copy of a map¶

1. Click File > Save as...

2. Enter a Name (required) and a Description (optional) for the map.

3. Click SAVE.

Rename a map¶

1. Click File > Rename.

2. Enter a new Name and/or Description for your map.

3. Click RENAME. The map is updated.

Translate a map¶

1. Click File > Translate.

2. Select the Locale (language) your translation.

3. Enter a translated Name and Description. The original text will show below the field.

4. Click SAVE.

Modify sharing settings for a map¶

After you have created a map and saved it, you can share the map with everyone or a user group. To modify the sharing settings:

1. Click File > Share. The sharing settings dialog opens.

2. Give access to a user or group: In the text box, search for the name of the user or group you want to share your favorite with and select it.

   Select the access level and click on Give access.

   Repeat the step to add more users or groups.

3. Users and groups that currently have access: For each user or group, choose the access level. The options are:

   • No access: The public won't have access to the map. This setting is only applicable to All users.

   • View only

   • View and edit

   • Remove access: Remove the access for groups or individuals.

4. Click Close to close the dialog.

Get the link to a map¶

1. Click File > Get link. A link dialog opens.

2. Copy the link.

Delete a map¶

1. Click File > Delete. A confirmation dialog is displayed.

2. Click DELETE to confirm that you want to delete the favorite. Your map is deleted and the layers are cleared from the view.

Map interpretations¶

An interpretation is a description of a map at a given period. This information is visible in the Dashboard app. Click Interpretations in the top right of the workspace to open the interpretations panel. The button is only clickable if the map is saved.

View interpretations based on relative periods¶

To view interpretations for relative periods, such as a year ago:

1. Open a favorite with interpretations.

2. Click Interpretations in the top right of the workspace to open the interpretations panel.

3. Click on See interpretation. Your map displays the data and the date based on when the interpretation was created. To view other interpretations, click them.

Write interpretation for a map¶

To create an interpretation, you first need to create a map and save it. If you've shared your map with other people, the interpretation you write is visible to those people.

1. Open a saved map.

2. Click Interpretations in the top right of the workspace to open the interpretations panel.

3. A text field will appear with a placeholder "Write an interpretation" for users that have read access to the favorite.

4. In the text field, type a comment, question or interpretation. You can also mention other users with '@username'. Start by typing '@' plus the first letters of the username or real name and a mentioning bar will display the available users. Mentioned users will receive an internal DHIS2 message with the interpretation or comment. You can see the interpretation in the Dashboard app.

5. Click Post interpretation to save the interpretation.

Change sharing settings for an interpretation¶

1. Click an interpretation (see how to view an interpretation above).

2. Click the share icon below the interpretation. The sharing settings dialog opens.

3. Search for and add a users and user groups that you want to share your map with, and set the access level. Click on Give access.

4. Change the access level for the users you want to modify:

   • View and edit: Everyone can view and edit the object.

   • View only: Everyone can view the object.

   • No access: The public won't have access to the object. This setting is only applicable to All users.

   • Remove access: Remove the access for groups or individuals.

5. Click CLOSE when sharing settings are updated.

Save a map as an image¶

You can download your map as an image by clicking on the Download button in the top menu

Map download is not supported in Internet Explorer or Safari, we recommend to use Google Chrome or Firefox.

1. Select if you want to include the map name or not. This option is only available if the map is saved.

2. Select if you want to include the map legend. You can position the legend in one of the 4 corners of your map.

3. Click Download to download your map.

Search for a location¶

The place search function allows you to search for almost any location or address. This function is useful in order to locate for example sites, facilities, villages or towns on the map.

1. On the right side of the Maps window, click the magnifier icon.

2. Type the location you're looking.

   A list of matching locations appear as you type.

3. From the list, select a location. A pin indicates the location on the map.

Measure distances and areas in a map¶

1. In the upper left part of the map, put the cursor on the Measure distances and areas (ruler) icon and click Create new measurement.

2. Add points to the map.

3. Click Finish measurement.

Get the latitude and longitude at any location¶

Right-click a point on the map and select Show longitude/latitude. The values display in a pop-up window.

See also¶

• Manage legends
