Configure metadata (Metadata Management app)¶

Note

This section documents the Metadata Management app, which replaces the functionality of the Maintenance app. The Metadata Management app is available from the DHIS2 App Hub and is compatible with DHIS2 core V41 and above.

If you are using DHIS2 without the Metadata Management app installed, see Configure metadata for the Maintenance app instead.

About the Metadata Management app¶

In the Metadata Management app you configure all the metadata objects you need to collect and analyze data:

• Categories
• Data elements
• Data sets and data entry forms
• Indicators and Predictors
• Organisation units
• Option sets
• Validations
• Attributes
• Constants
• Legends
• SQL views
• Locales
• Analytics table hooks

Note

The functions you have access to depend on your user role's access permissions.

The app's sidebar also has Programs and Data approval sections, which this chapter does not cover. For those, see Configure programs in the Maintenance app and Data approval overview.

Note

The Metadata Management app is released on a continuous release cycle, meaning new sections and features are added regularly. If a section listed above is not yet visible in your installed version of the app, it may not yet have been implemented. You can update the app from the App Hub to get the latest features.

The Metadata Management app is a complete modernisation of the legacy Maintenance app. Key improvements include:

• Merging duplicate metadata — You can merge duplicate metadata objects (currently: category options, indicators, indicator types) directly from the list view. This supports ongoing metadata cleanup.
• Advanced filtering and search — Each object list has improved filtering options to help you find objects by name, code, or other attributes.
• Bulk sharing — You can update sharing settings for multiple objects at once.

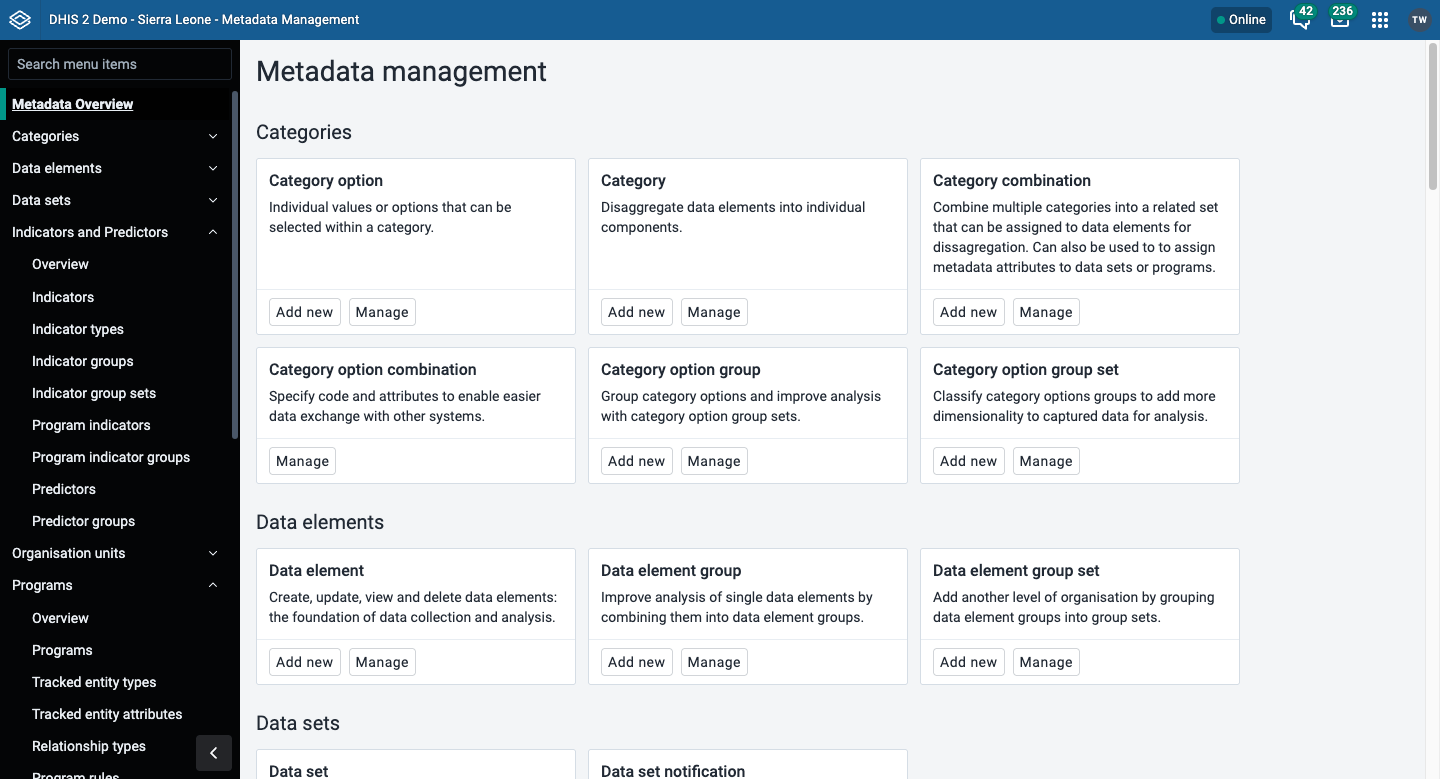

Navigating metadata objects¶

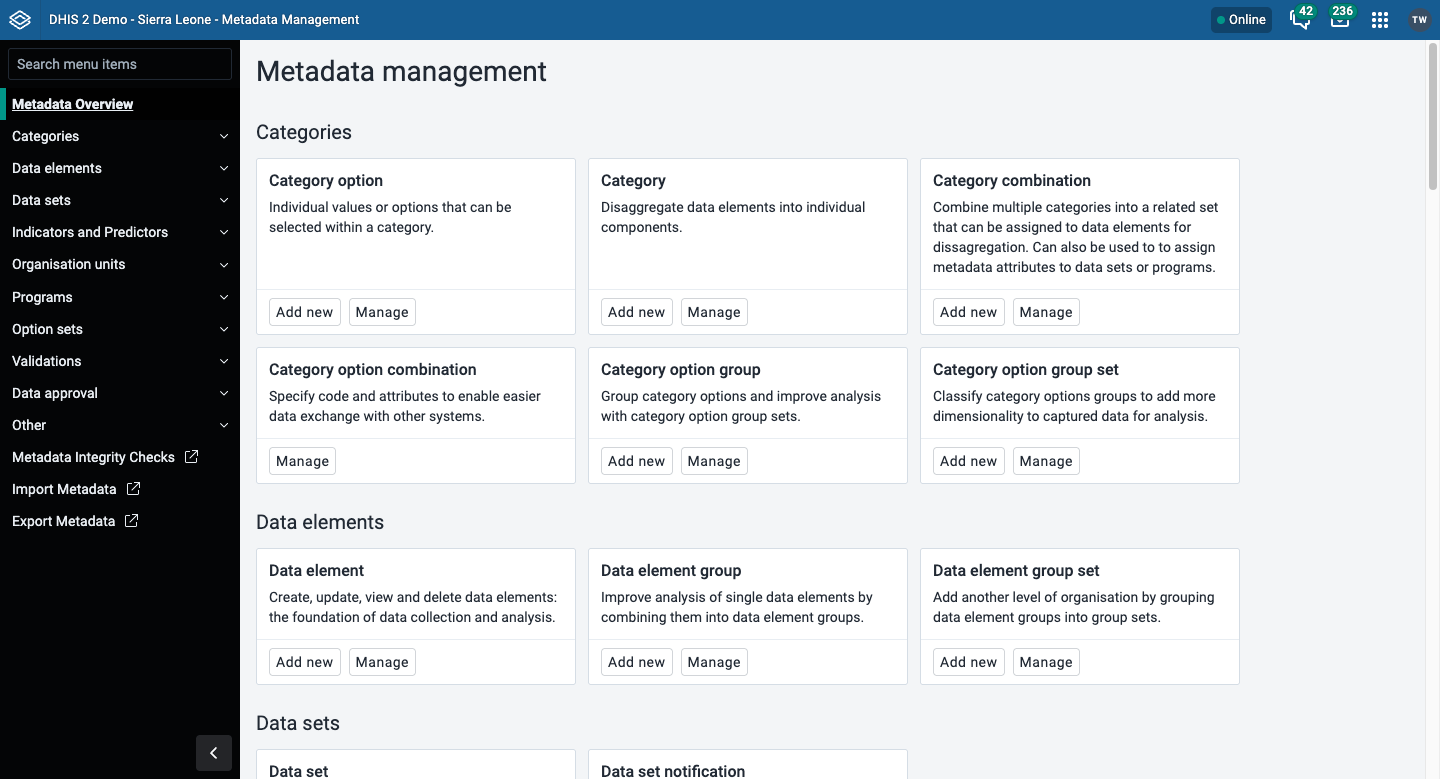

The left-hand sidebar lists all available metadata sections. Click any section to expand it and see the individual object types it contains, as shown below.

When you open the Metadata Management app, the left-hand sidebar displays the metadata object categories. Click a category to expand its object types, then click an object type to view its list.

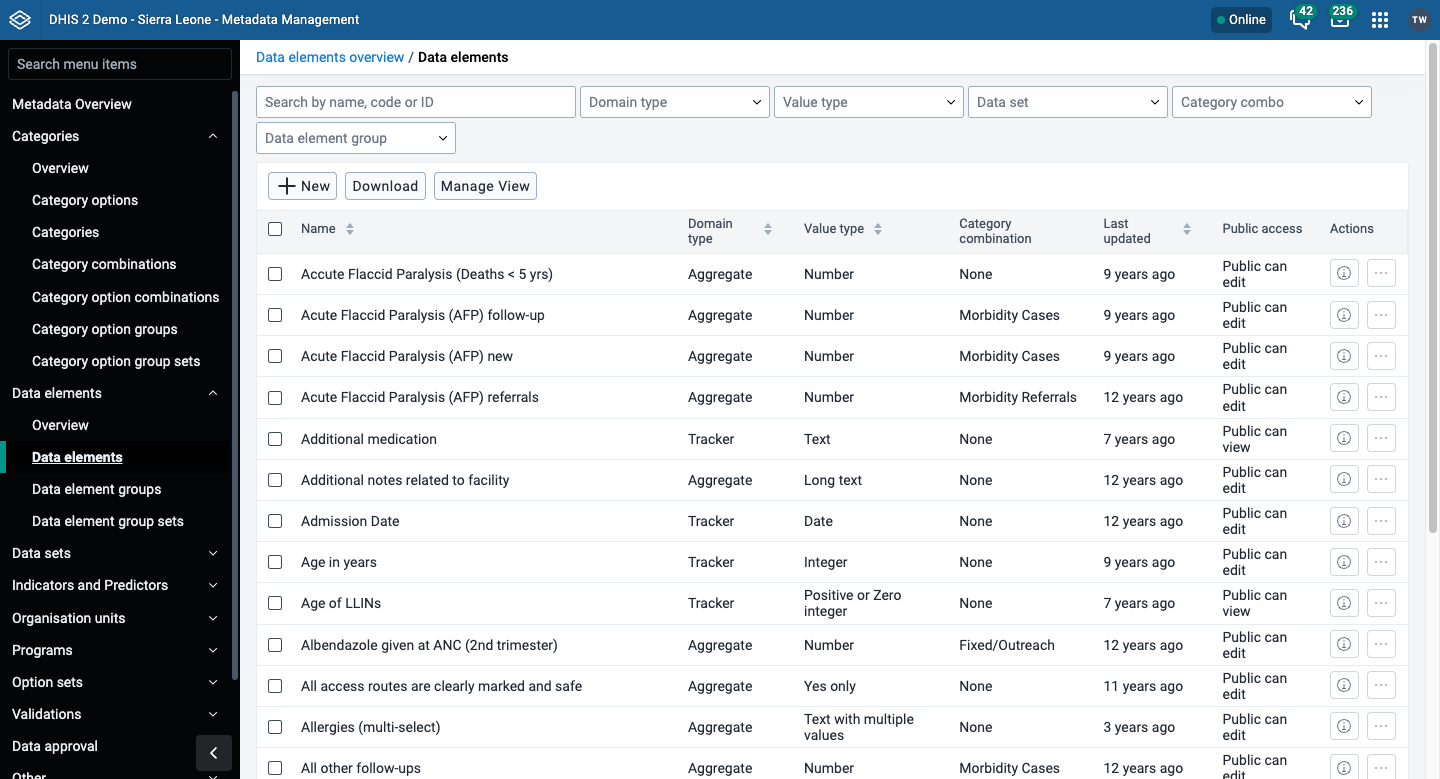

Metadata objects are presented in a list with predefined columns relevant to each object. You can customise which columns are shown in the list for the current object. These customisations are per user and will not affect other users. Note that these changes do not edit any metadata — they only affect how the list is presented.

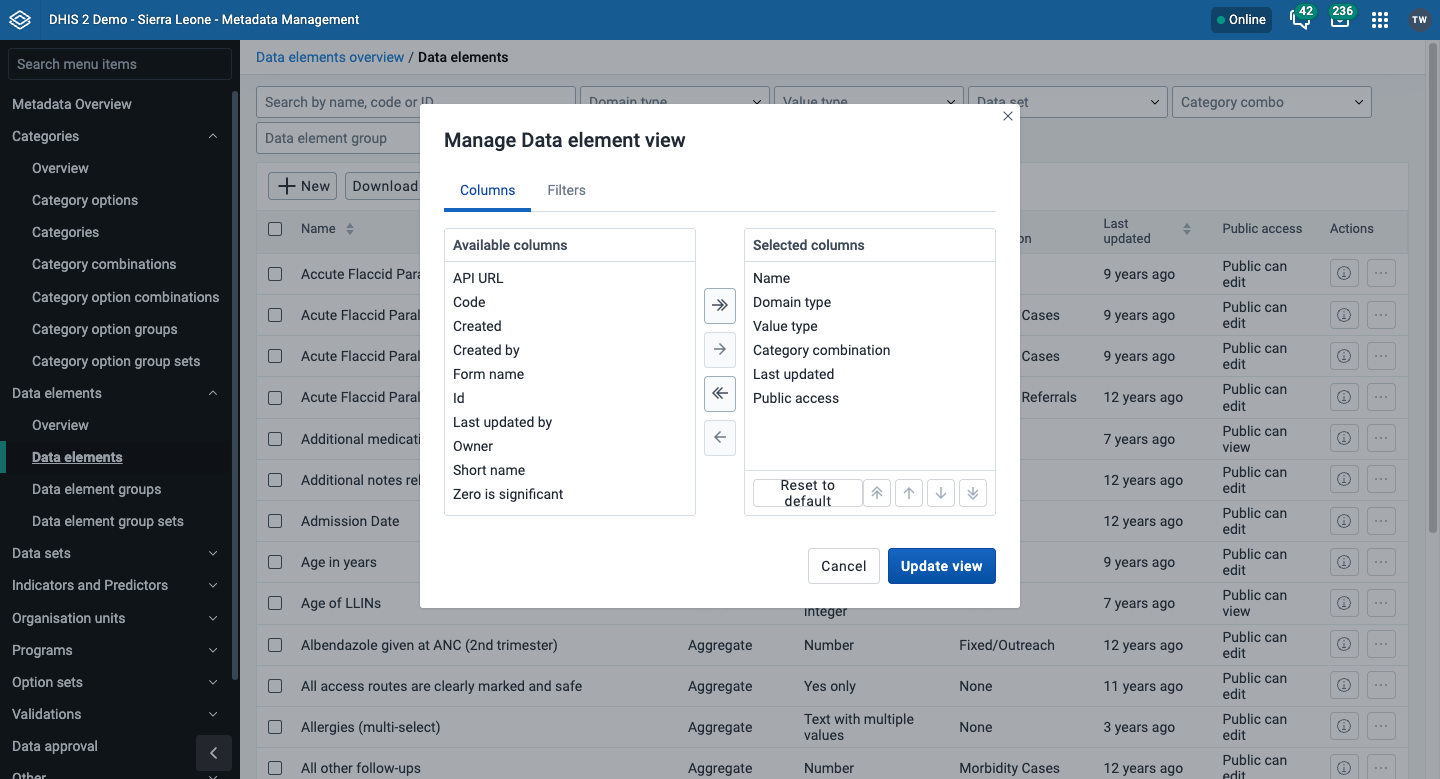

Managing visible columns¶

1. Click the Manage View button above the list of objects you want to configure.
2. A dialog appears with two tabs: Columns and Filters. Select the Columns tab.
3. The default selected columns are shown on the right.
4. Click any column name in the list of Available columns on the left to move it to the selected list.
5. Use the arrow buttons to move columns between the Available and Selected lists.
6. Reorder selected columns using the up and down arrow buttons.
7. Click Update view once you are satisfied with your changes.

Click Reset to default to restore the default column configuration.

Filtering and searching¶

Each object list includes a search bar and a row of filter dropdowns at the top of the list. The available filters are specific to each object type — for example, the data elements list can be filtered by Domain type, Value type, Data set, Category combo and Data element group.

You can also customise which filters appear using the Manage View button:

1. Click Manage View above the list.
2. Select the Filters tab.
3. Move filters between Available filters and Selected filters as needed.
4. Click Update view.

Download metadata¶

You can download the metadata for the object you are currently viewing. The download will respect any active filters.

1. Click the Manage View button above the list.
2. In the dropdown, select Download.
3. In the dialog that appears, select your preferred format and compression.
4. Optionally select With sharing to include sharing data for the metadata.
5. Click Download.

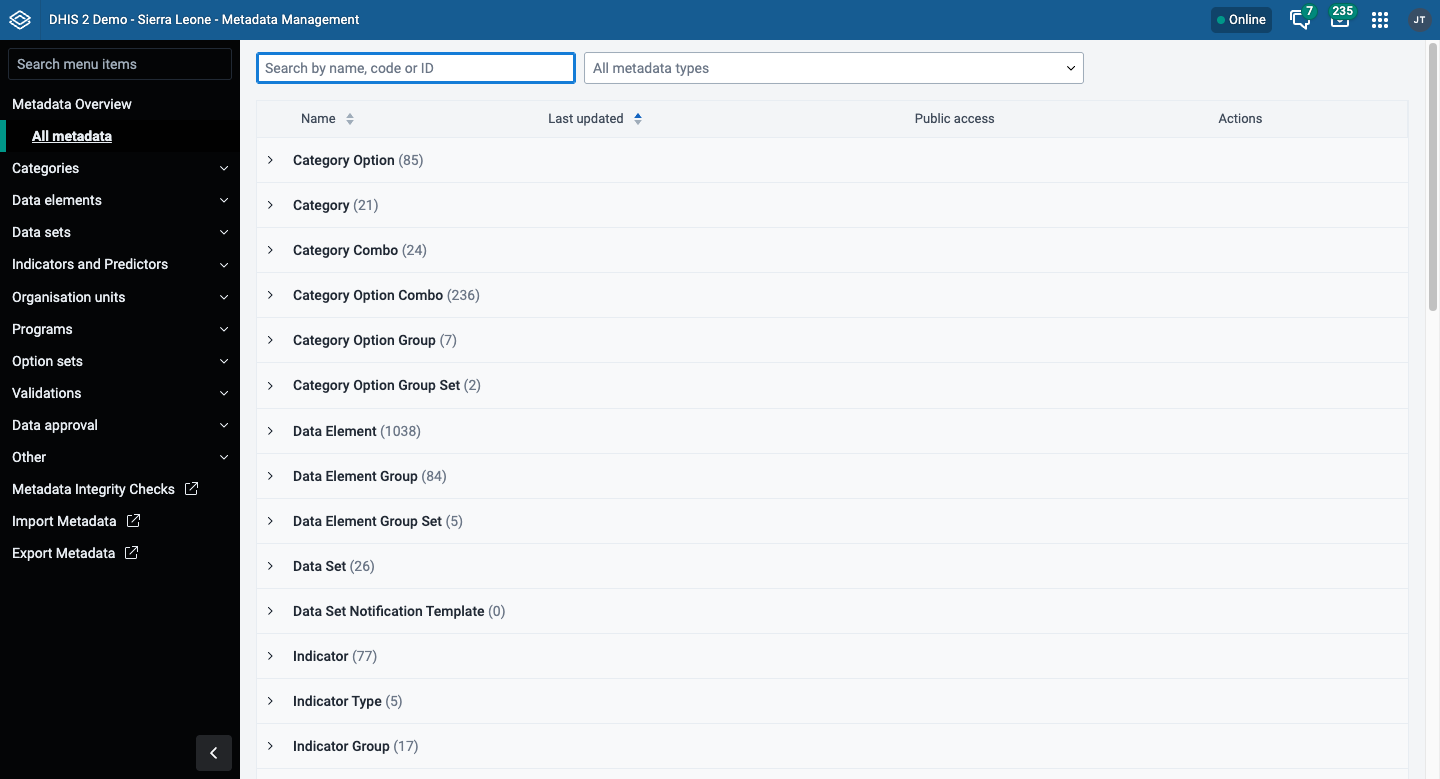

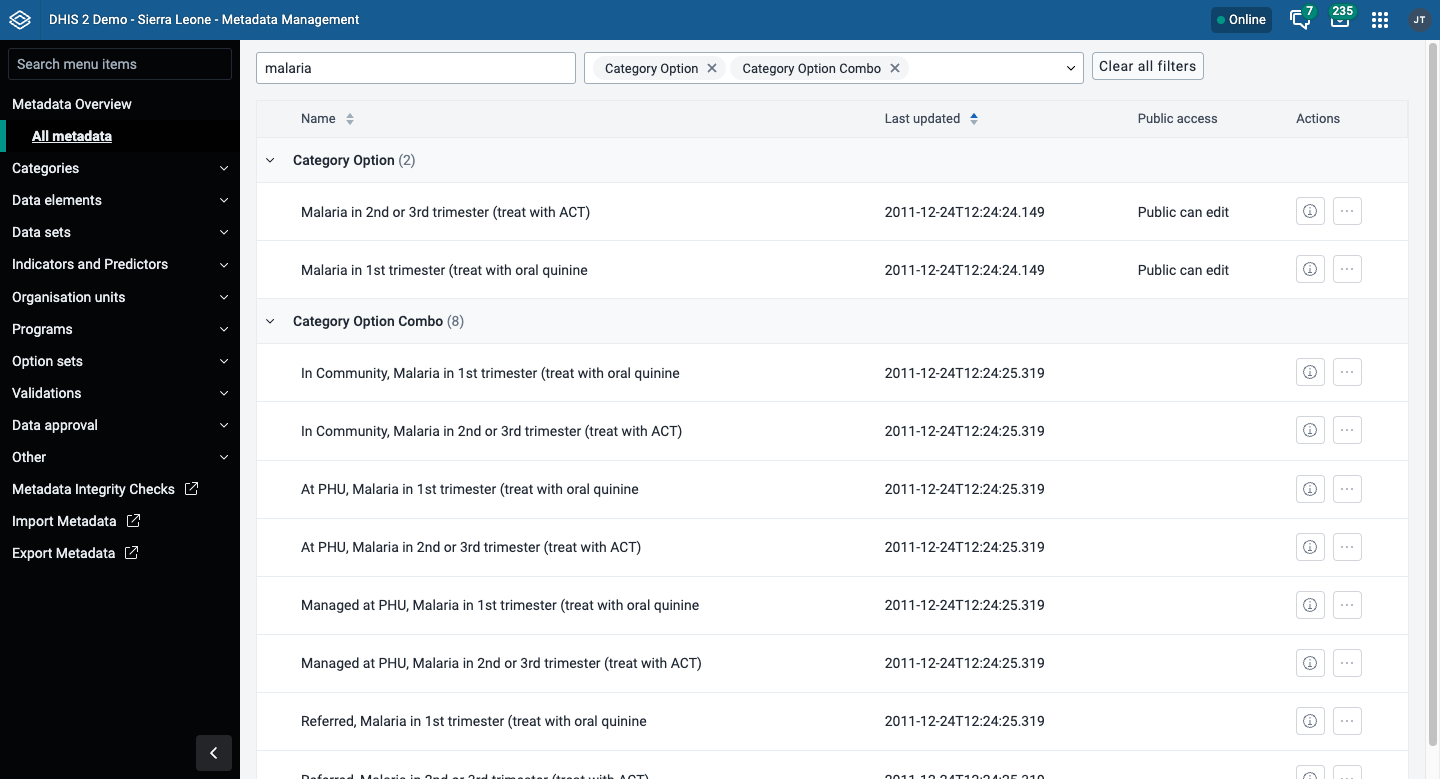

All Metadata view¶

The new All metadata view allows you to search for keywords across a range of metadata types. Typing in the search box filters the results automatically, and the metadata types dropdown lets you narrow down which types of metadata are displayed. Expanding a type shows five results initially, with the option to load more.

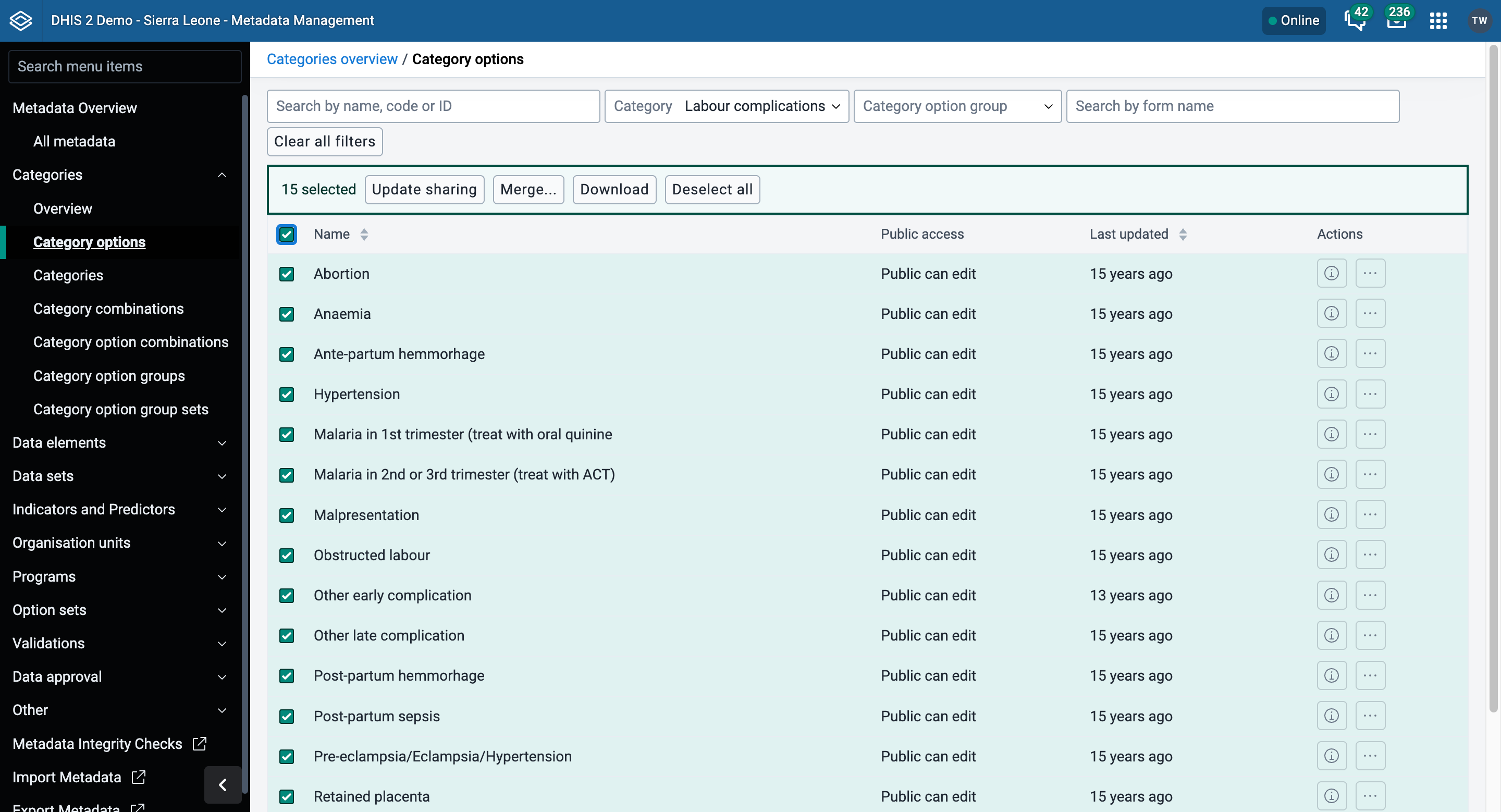

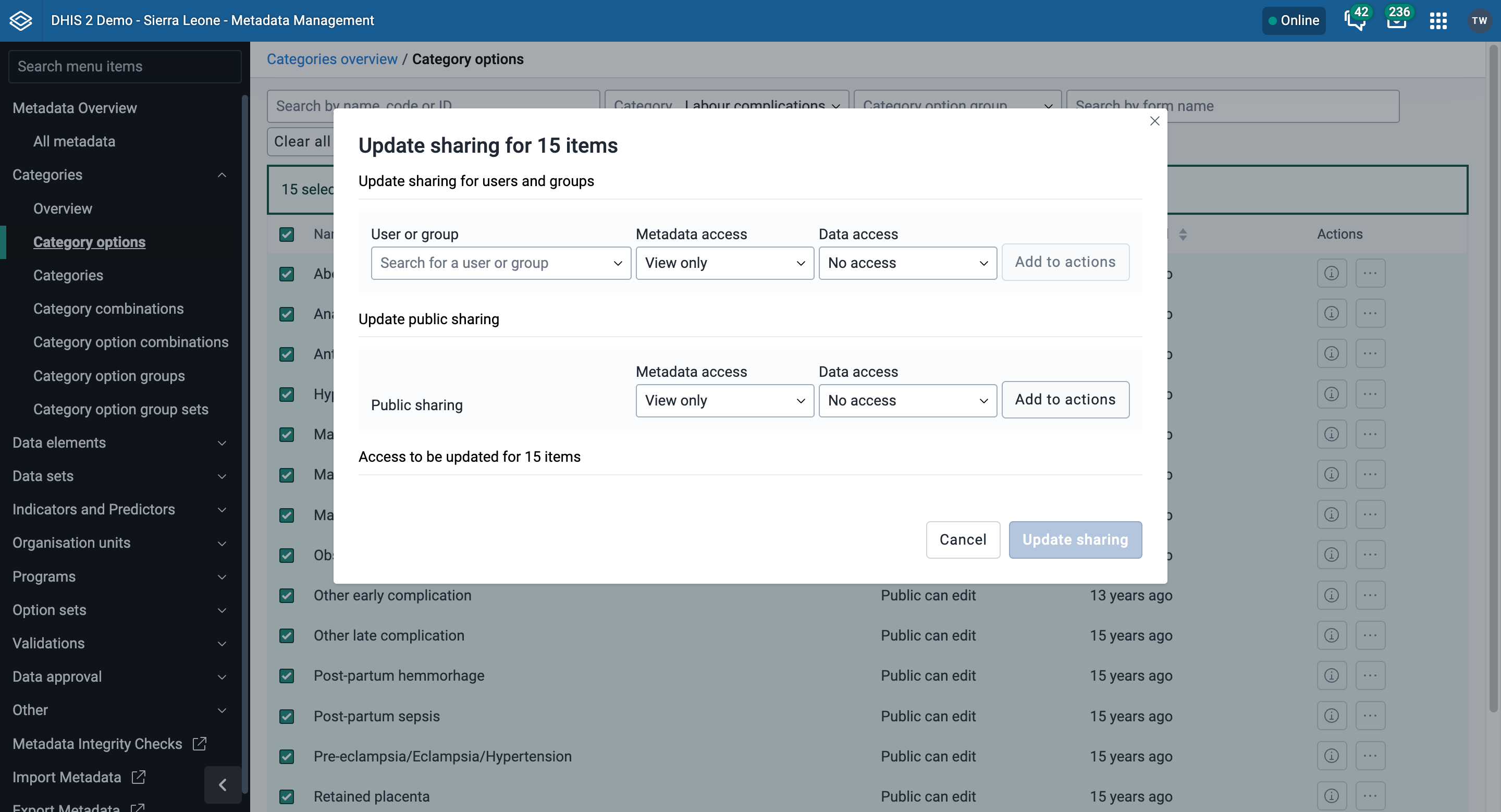

Bulk update sharing¶

In the Metadata Management app you can select multiple entries in the list view and update the sharing settings of all of them at once. First select the items you want to update. In the example below, the view has been filtered to show only category options in the category Labour complications, and all of them have been selected.

Clicking Update sharing opens a dialog where you choose which sharing settings to add to the selected objects.

Further options for editing objects' existing sharing settings are under development.

Common metadata object fields¶

Many metadata objects in the sections below share the same handful of fields. This table explains what each one is for and any format constraints, so the individual procedures don't have to repeat it. Where a step below names one of these fields with no further explanation, this table is the reference — sections only add their own explanation for fields that are unique to that object type.

Common actions¶

Show details, Sharing settings, Translate, Delete and Clone work the same way for almost every object type covered in this chapter, regardless of whether it's a category, a data element, a predictor or something else. This section documents each action once. Each object type's own section below only notes where it deviates from this — for example an object type that doesn't support one of these actions, or has an object-specific detail worth knowing before you use it.

Show details¶

1. Open the Metadata Management app and find the type of metadata object you want to view.
2. In the object list, click the options menu and select Show details.

Change sharing settings¶

You can assign different sharing settings to metadata objects to control which users and user groups can view or edit them, for example organisation units and tracked entity attributes.

Some metadata objects also allow you to change the sharing setting of data entry for the object. These additional settings control who can view or enter data in form fields using the metadata.

Note

The default setting is that everyone (Public access) can find, view and edit metadata objects.

1. Open the Metadata Management app and find the type of metadata object you want to modify.
2. In the object list, click the options menu and select Sharing settings.
3. (Optional) Add users or user groups: search for a user or user group and select it.
4. Change sharing settings for the access groups you want to modify:
5. Can edit and view: The access group can view and edit the object.
6. Can view only: The access group can view the object.
7. No access (only applicable to Public access): The public will not have access to the object.
8. Change data sharing settings where applicable:
9. Can capture data: The access group can view and capture data for the object.
10. Can view data: The access group can view data for the object.
11. No access: The access group will not have access to data for the object.
12. Click Close.

Translate¶

DHIS2 provides functionality for translations of database content. You can translate a metadata object into any number of locales. A locale represents a specific geographical, political, or cultural region.

Tip

To activate a translation for yourself, open the System Settings app, click Appearance and select a language.

1. Open the Metadata Management app and find the type of metadata object you want to translate.
2. In the object list, click the options menu and select Translate.

Tip

Organisation unit levels don't have an options menu — click directly on the Translate icon next to the list item instead.

1. Select a locale.
2. Type a Name and optionally a Short name and Description in the chosen locale.
3. Click Save.

Delete¶

Note

You can only delete a metadata object if no data is associated with it.

Where deletion is blocked, or where you would rather retire an object than lose its history, use Sharing settings to restrict access instead. The object and its data still exist, but users without access won't see them. Some object types offer a dedicated alternative — an organisation unit can be closed rather than deleted, for example.

Warning

Deleting objects from DHIS2 is not recommended. In almost all cases it is better to deactivate or close an object rather than deleting it, as deletion is irrevocable.

1. Open the Metadata Management app and find the type of metadata object you want to delete.
2. In the object list, click the options menu and select Delete.
3. Click Confirm.

One object type carries an extra risk beyond the general note above:

• Data sets — deleting a data set also irrevocably deletes any data entry forms and section forms built for it. Make sure you have a backup of your database before deleting a data set, in case you need to restore it later.

Clone¶

Cloning a metadata object can save time when you need to create many similar objects.

1. Open the Metadata Management app and find the type of metadata object you want to clone.
2. In the object list, click the options menu and select Clone.
3. All values from the original object are copied. Values that must be unique, such as Name and Code, need to be updated. Modify the other values you want to change.
4. Click Save.

Clone is available for most object types in this chapter. It is not available for: Category option combination, Data set, Section, Section form, Custom form, and Organisation unit level.

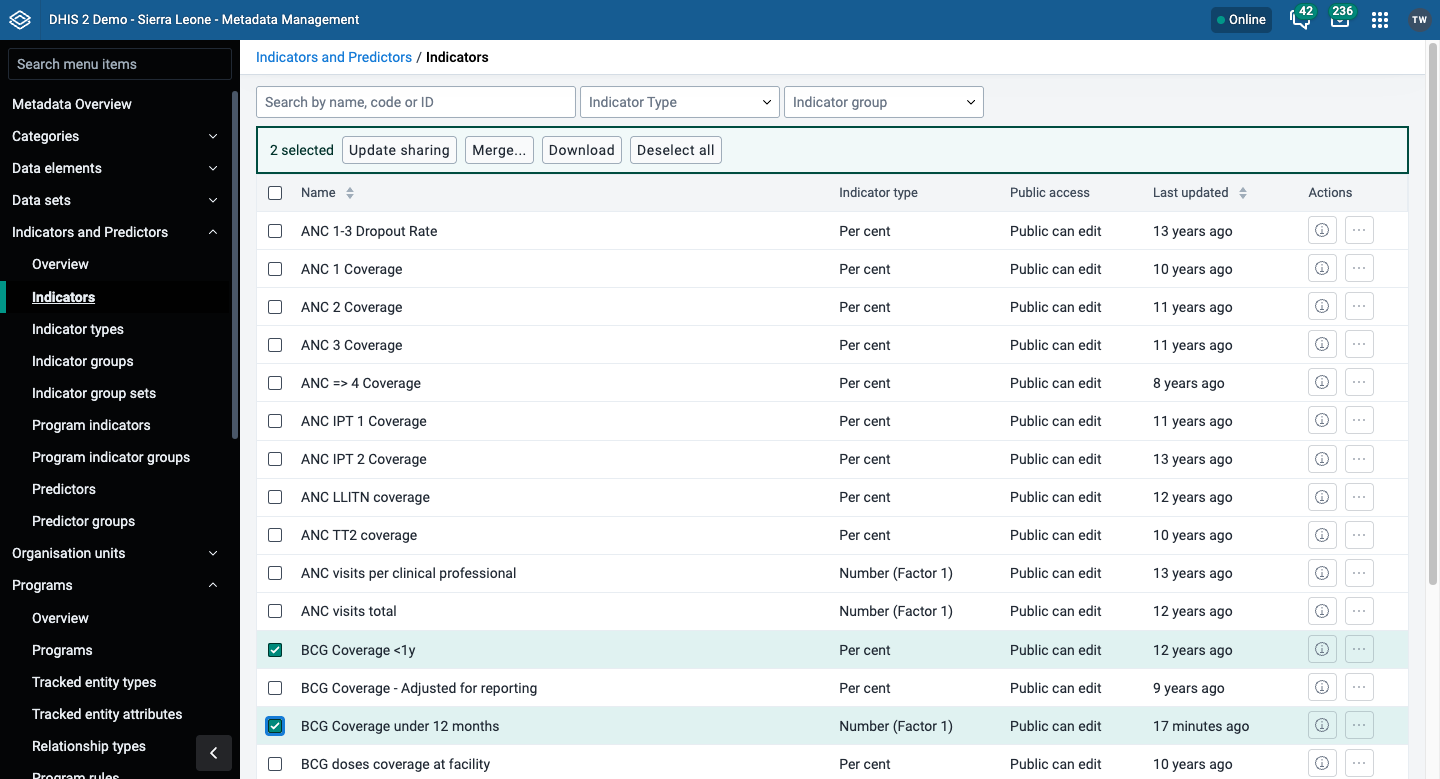

Merge¶

Merging consolidates two duplicate objects into one: it reassigns all references from a source object to a target object, then deletes the source. Unlike the actions above, merge is available for only some object types, and the navigation path and required authority differ by type.

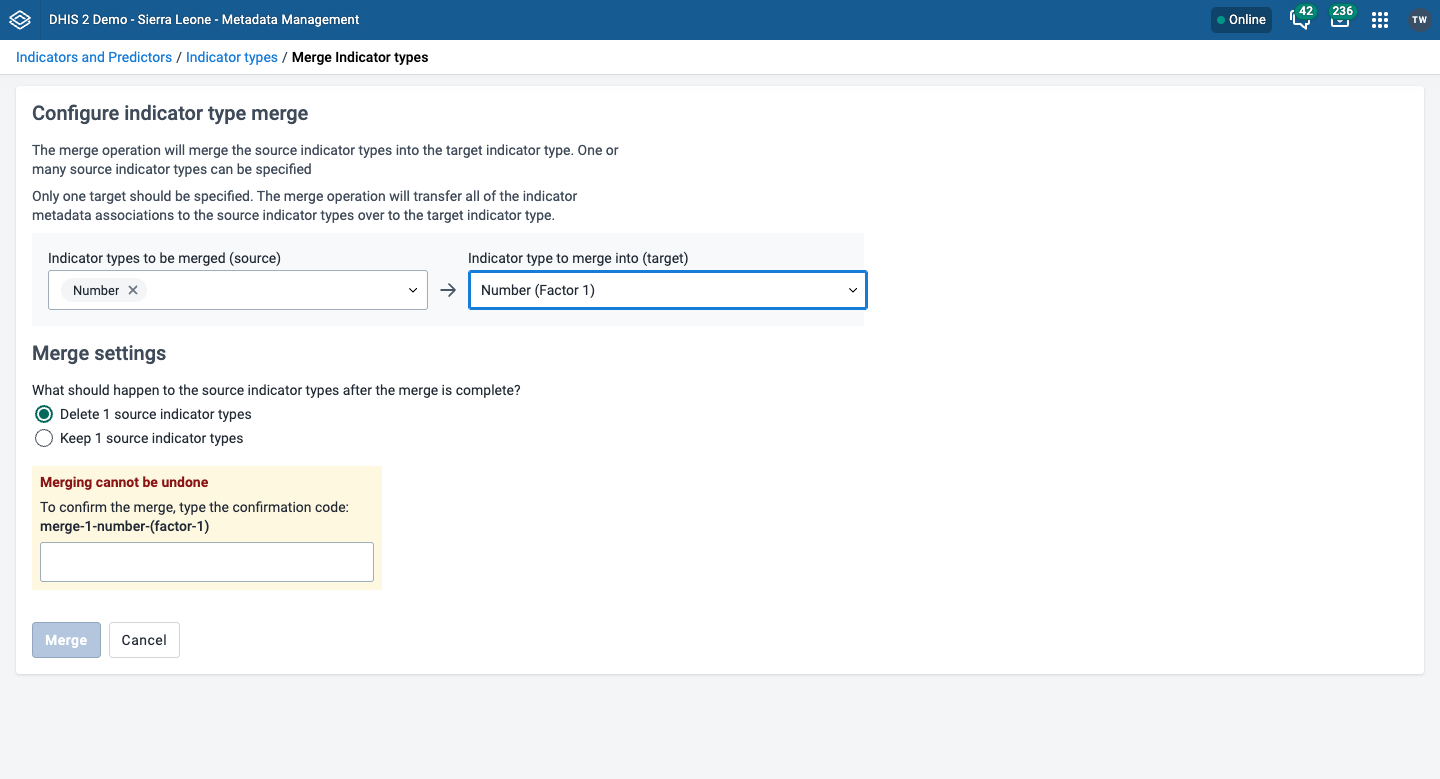

The Metadata Management app provides a merge screen for eight object types:

All eight work the same way: open the object type's list, choose Merge, select the source object or objects to be removed and the target object to keep, review the summary of changes, then confirm. Each merge screen requires its own authority, and merging is irreversible — the sources are deleted and every reference is repointed at the target. Three are written out in full below; the rest follow the same pattern from their own list view.

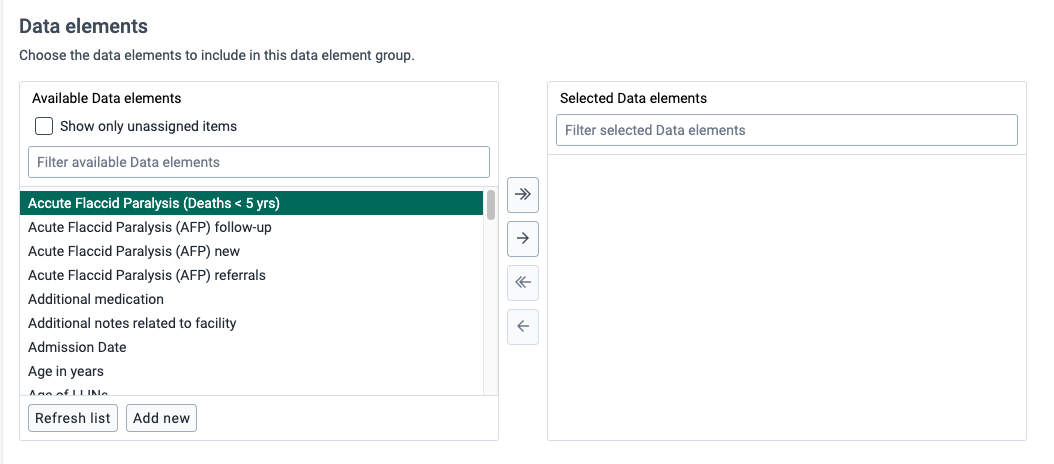

Using a transfer list component¶

Many sections below ask you to assign one type of object to another — category options to a category, say, or data elements to a data element group — using the two-panel selector shown below. Wherever a procedure tells you to "select X and assign them", this is the component it means.

Available (left) panel

• Lists every object of that type that could be assigned, whether or not it's already assigned elsewhere.
• Some object types add a Show only unassigned items checkbox above this list, which narrows the choice to items that do not already belong to another object of the same type. It is most useful when assigning members to groups.
• Each panel also has its own filter box above the list, so you can search the Available and Selected lists independently.

Moving items to Selected

• Double-click a single item in the Available list to move it to the Selected list immediately.
• Click an item to select it, or hold Shift or Ctrl while clicking to select a range or several individual items, then click the single right-pointing arrow to move the selection across.
• Click the double right-pointing arrow to move every item in the Available list to Selected, regardless of what's selected.

Removing items from Selected

• Double-click a single item in the Selected list to move it back to Available.
• Click an item to select it, or hold Shift or Ctrl while clicking to select a range or several individual items, then click the single left-pointing arrow to move the selection back.
• Click the double left-pointing arrow to move every item in the Selected list back to Available.

Add new

Where a transfer list offers an Add new button, clicking it opens a drawer with a blank form for creating a new item. Complete the form and click Save and close. The new item then appears in the Available list, ready to be assigned. This lets you create a missing item without leaving the parent object you are editing.

Manage categories¶

About categories¶

Categories are typically a concept, for example "Gender", "Age" or "Disease Status". Data elements such as "Number of cases of confirmed malaria" are often broken into smaller component parts to determine, for example, the number of confirmed malaria cases of particular age groups.

Use categories to disaggregate data elements into individual components. You can also use categories to assign metadata attributes to all data recorded in a specific data set, such as "Implementing partner" or "Funding agency."

For example, create a category called "Age" with three category options: "Under 1", "1-5" and "Over 5". Assign that category to the data element through a category combination. This creates three separate fields for the data element in the data entry forms:

• Number of confirmed malaria cases (Under 1)
• Number of confirmed malaria cases (1-5)
• Number of confirmed malaria cases (Over 5)

Without categories, you would have had to create each of the data elements listed above separately.

In the Metadata Management app, you manage the following category objects:

Workflow¶

1. Create all category options.
2. Create categories composed of the multiple category options you have created.
3. Create category combinations composed of either one or multiple categories.
4. Create data elements and assign them to a category combination.

Create or edit a category option¶

When possible, reuse category options. For instance, there might be two categories which share a particular category option (for example "< 1 year of age"). When creating the categories, this category option can be reused. This is important if particular category options (or category option combinations) need to be analysed together.

1. Open the Metadata Management app and click Categories > Category options.
2. Click the + New button to add a new category option, or click the options menu next to an existing one and select Edit.
3. Fill in Name, Short name, Code, Form name, Description, Start date and End date — see Common metadata object fields. Only Name is required.
4. Select organisation units and assign them.

Tip

You can automatically select all organisation units that belong to an organisation unit level or organisation unit group, for example "Chiefdom" or "Urban". Select an Organisation unit level or Organisation unit group and click Select.

1. Click Save.

Create or edit a category¶

When you have created all category options for a particular category, you can create that category.

1. Open the Metadata Management app and click Categories > Categories.
2. Click the + New button.
3. Fill in Name, Short name, Code and Description — see Common metadata object fields.
4. Select a Data dimension type — Disaggregation for a category used to break data elements into components, or Attribute to let the category be used to assign a combination of categories to data recorded through a data set.
5. (Optional) Select Data dimension to make the category available as a dimension in analytics apps.
6. Select category options and assign them.
7. Click Save.

Create or edit a category combination¶

Category combinations let you combine multiple categories into a related set.

You can disaggregate the data element "Number of new HIV infections" into the following categories:

• HIV Service: "Other", "PMTCT", "TB"
• Gender: "Male", "Female"

In this example, there are two levels of disaggregation that consist of two separate data element categories. Each data element category consists of several data element category options.

In DHIS2, different data elements are disaggregated according to a common set of categories. By combining these different categories into a category combination and assigning these combinations to data elements, you can apply the appropriate disaggregation levels quickly to a large number of data elements.

1. Open the Metadata Management app and click Categories > Category combinations.
2. Click the + New button.
3. Fill in Name and Code — see Common metadata object fields.
4. Select a Data dimension type — Disaggregation or Attribute.
5. (Optional) Select Skip category total in reports.
6. Select categories and assign them.
7. Click Save.

Create or edit a category option group¶

You can group and classify category options by using category option groups. The main purpose of the category option group set is to add more dimensionality to your captured data for analysis in for example the Pivot table or Data Visualizer apps.

Consider a system where data is collected by "projects", and projects are modelled as category options. The system must be able to analyse data based on which donor supports the project. In this case, create a category option group set called "Donor". Each donor can be created as a category option group, where each category option / project is put in the appropriate group. In the data analysis applications, the "Donor" group set appears as a data dimension and each donor appears as a dimension item, ready to be included in reports.

Category option groups allow you to classify category options into groups that work together.

1. Open the Metadata Management app and click Categories > Category option groups.
2. Click the + New button.
3. Fill in Name, Short name, Code and Description — see Common metadata object fields.
4. Select a Category option group usage — Disaggregation or Attribute. This works the same way as Data dimension type; see Common metadata object fields.
5. Select category options and assign them.
6. Click Save.

Create or edit a category option group set¶

You can group category option groups in category option group sets. The main purpose of the category option group set is to add more dimensionality to your captured data for analysis in for example the Pivot table or Data Visualizer apps.

1. Open the Metadata Management app and click Categories > Category option group sets.
2. Click the + New button.
3. Fill in the Name and Description fields — see Common metadata object fields.
4. Select a Data dimension type.
5. Select category option groups and assign them.
6. Click Save.

Use category combinations for data sets¶

If you use a category combination for a data set, the category combination applies to the whole form. This requires the categories and the category combination to have the data dimension type "Attribute". Used as an attribute, a category combination serves as another dimension — similar to "Period" and "Organisation unit" — which you can use in your analysis. When a data set is linked to a category combination, those categories are displayed as drop-down boxes in the Data entry app, and each data value captured in the form is linked to the category options selected in those boxes.

Suppose that an NGO is providing ART services in a given facility. They would need to report each month on the "ART monthly summary", which would contain a number of data elements. The NGO and project could potentially change over time. In order to attribute data to a given NGO and project at any point in time, you need to record this information with each data value at the time of data entry.

1. Create two categories with the data dimension type "Attribute": "Implementing partner" and "Projects".

2. Create a category combination with the data dimension type "Attribute": "Implementing partners and projects".

3. Assign the categories you've created to the category combination.

4. Create a data set called "ART monthly summary" and select the "Implementing partners and projects" category combination.

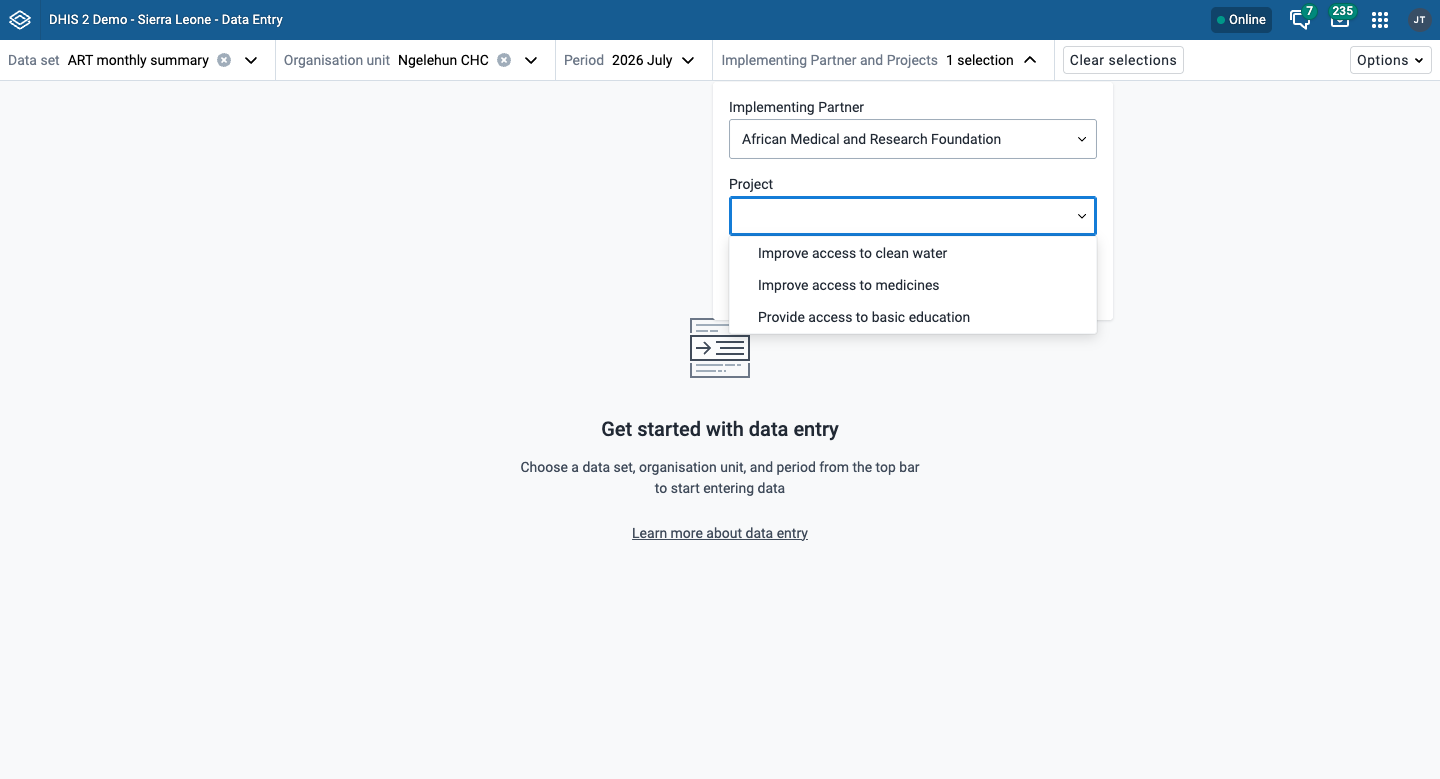

When you enter data in the Data entry app, you can select an "Implementing partner" and a "Project". Each recorded data value is assigned a specific combination of these categories as an attribute. These attributes (when specified as a dimension) can be used in the analysis applications similar to other dimensions, for example the period and organisation unit.

See the Manage data sets section for more on assigning a category combination to a data set.

Assign a code to a category option combination¶

The system creates the category option combinations automatically, so they do not need to be created. You can assign a code to category option combinations. This makes data exchange between DHIS2 and external systems easier.

1. Open the Metadata Management app and click Categories > Category option combinations.
2. In the object list, click the options menu and select Edit.
3. In the Code field, type a code.
4. Click Save.

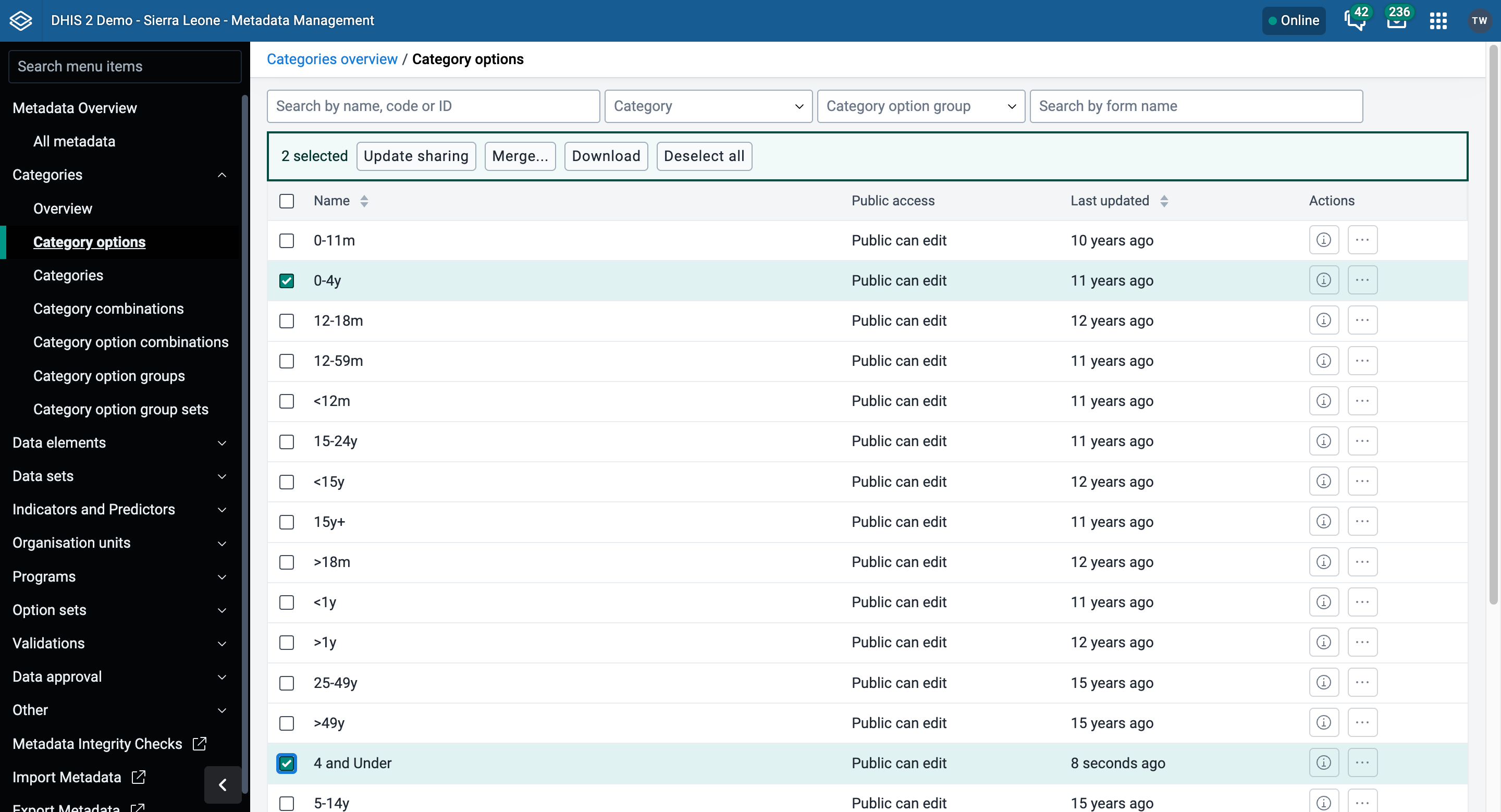

Merge category options¶

Merging allows you to consolidate two duplicate category options into one, reassigning all references from the source object to the target object and then deleting the source.

Note

You must have the F_CATEGORY_OPTION_MERGE authority to access the merge page or see the merge button on the list view.

1. Open the Metadata Management app and click Categories > Category options.
2. Navigate to Category options > Merge Category options (or go directly to #/categoryOptions/merge).
3. Search for and select the source category option (the one to be removed).
4. Search for and select the target category option (the one to keep).
5. Review the summary of changes.
6. Click Confirm merge.

Warning

Merging is irreversible. The source category option will be permanently deleted and all references will be updated to point to the target.

For Show details, Sharing settings, Translate, Delete and Clone, see Common actions. All category objects support these except Category option combination, which only supports Edit and Show details — it's generated automatically by the system rather than created directly. Categories, category combinations, category option combinations and category options all support merging; see Merge.

Manage data elements¶

About data elements¶

Data elements are the base of DHIS2. Data elements define what is actually recorded in the system, for example number of immunisations or number of cases of malaria.

Data elements such as "Number of cases of confirmed malaria" are often broken into smaller component parts to determine, for example, the number of confirmed malaria cases of particular age groups.

In the Metadata Management app, you manage the following data element objects:

Workflow¶

1. Create all category options.
2. Create categories composed of the multiple category options you have created.
3. Create category combinations composed of either one or multiple categories.
4. Create data elements and assign them to a category combination.

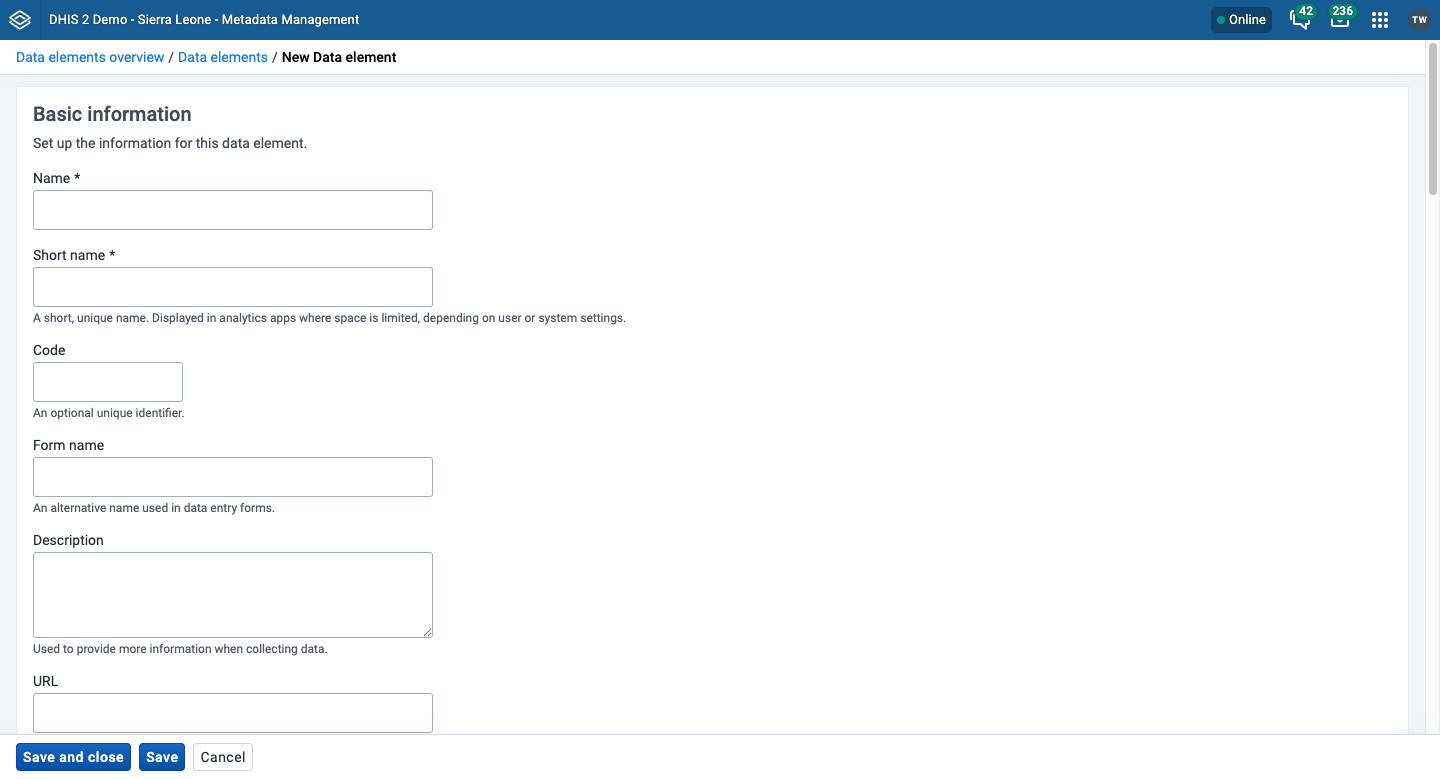

Create or edit a data element¶

1. Open the Metadata Management app and click Data elements > Data elements.
2. Click the + New button to add a new data element, or click the options menu next to an existing one and select Edit.
3. In the Name field, define the precise name of the data element. Each data element must have a unique name.
4. In the Short name field, define a short name for the data element. Typically, the short name is an abbreviation of the full data element name. This attribute is often used in reports where space is limited.
5. (Optional) In the Code field, assign a code.
6. (Optional) In the Color field, assign a color which will be used for this data element in data capture apps.
7. (Optional) In the Icon field, assign an icon which will be used for this data element in data capture apps.
8. In the Description field, type a description of the data element. Be as precise as possible and include complete information about how the data element is measured and what its purpose is.
9. (Optional) In the Field mask field, type a template that provides hints for correct formatting of the data element.

Note

Field masks are currently implemented in the DHIS2 Android Capture app; not in the Capture web app.

The following special characters can be used in the mask:

For example, the pattern \d\d\d-\d\d\d-\d\d\d would show a hyphen for every third digit.

1. In the Form name field, type an alternative name of the data element. This name can be used in either section or automatic data entry forms.
2. In the Domain type field, select whether the data element is an aggregate or tracker type of data element.

3. In the Value type field, select the type of data that the data element will record.

   Value types

   Value type	Description
   Text	Textual value. The maximum number of allowed characters per value is 50,000.
   Long text	Textual value. Renders as a text area with no length constraint in forms.
   Letter	A single letter.
   Phone number	Phone number.
   Email	Email address.
   Yes/No	Boolean values rendered as drop-down lists in data entry.
   Yes only	Boolean values rendered as check boxes in data entry.
   Date	Dates rendered as calendar widget in data entry.
   Date & time	Combination of the Date and Time value types.
   Time	Time rendered as hours and minutes in HH:MM format.
   Number	Any real numeric value with a single decimal point.
   Unit interval	Any real number greater than or equal to 0 and less than or equal to 1.
   Percentage	Whole numbers inclusive between 0 and 100.
   Integer	Any whole number (positive and negative), including zero.
   Positive integer	Any whole number greater than (but not including) zero.
   Negative integer	Any whole number less than (but not including) zero.
   Positive or zero integer	Any whole number greater than or equal to zero.
   Username	DHIS2 user. Renders as a dialog for searching for and selecting a user.
   Coordinate	A point coordinate specified as longitude and latitude in decimal degrees. All coordinates should be specified in the format [-19.23, 56.42].
   Organisation unit	Organisation units rendered as a hierarchy tree widget. If the user has assigned "search organisation units", these will be displayed instead of the assigned organisation units.
   Reference	Stores a reference (UID) to another DHIS2 object, allowing a data value to link to a specific record elsewhere in the system.
   Age	Dates rendered as calendar widget OR by entering number of years, months and/or days which calculates the date value based on current date.
   URL	Enables manual entry of a URL.
   File	A file resource where you can store external files, for example documents and photos.
   Image	A file resource where you can store photos. Unlike File, the Image type can display the uploaded image directly in forms.
   GeoJSON	Stores geographic geometry data in GeoJSON format, for example boundary polygons or catchment areas for organisation units.

4. In the Aggregation type field, select the default aggregation operation that will be used for the data element.

   Table: Aggregation operators

   Every aggregation type answers two separate questions: how the shorter periods inside the reporting period combine, and how child organisation units combine into their parent. Read the names as "what happens over time (what happens over organisation units)" — where the organisation unit half is not stated, it is Sum.

   Aggregation operator	Over periods	Over the organisation unit hierarchy
   Sum	Sum	Sum
   Average	Average	Average
   Average (sum in org unit hierarchy)	Average	Sum
   Count	Count of values	Sum
   Min	Minimum	Minimum
   Max	Maximum	Maximum
   Min (sum in org unit hierarchy)	Minimum	Sum
   Max (sum in org unit hierarchy)	Maximum	Sum
   First value	Earliest value in the period	Sum
   First value (average in org unit hierarchy)	Earliest value in the period	Average
   Last value	Most recent value in the period	Sum
   Last value (average in org unit hierarchy)	Most recent value in the period	Average
   Last value in period	Most recent value, counting only periods inside the requested period	Sum
   Last value in period (average in org unit hierarchy)	Most recent value, counting only periods inside the requested period	Average
   Standard deviation	Standard deviation (population-based)	Standard deviation
   Variance	Variance (population-based)	Variance
   None	No aggregation	No aggregation

   Two further entries are not aggregation behaviours at all:

   • Default — defer to the aggregation type implied by the data element's value type.
   • Custom — the aggregation is supplied elsewhere rather than by one of the operators above.

   Tip

   The two-axis split is what makes Sum and Average (sum in org unit hierarchy) give different district totals from the same facility data, and it is why Last value at district level gives you the sum of each facility's latest value rather than any one facility's. If a total looks wrong, work out which axis you actually meant.

   Note

   Choose Last value for data that is a running total or a snapshot rather than a count of events — stock on hand, staff in post, population. Summing snapshots across periods double-counts them.

5. In the Store zero data values field, select if you want to save zero values, or if the system should ignore them.

   By default, DHIS2 does not store zero values. If you have a data element where a zero value is meaningful, for example if you want to track the number of vaccine doses administered and zero is a valid entry, select this option.

6. (Optional) In the Category combination field, define which category combination the data element belongs to. This is the disaggregation applied to the data element.

7. (Optional) Assign the data element to one or more Data element groups.

8. Click Save.

Create or edit a data element group¶

Data element groups allow you to group related data elements for reporting and analysis purposes.

1. Open the Metadata Management app and click Data elements > Data element groups.
2. Click the + New button.
3. Fill in the Name and (optionally) Short name and Code fields — see Common metadata object fields.
4. Select data elements and assign them.
5. Click Save.

Create or edit a data element group set¶

Data element group sets allow you to classify multiple data element groups.

1. Open the Metadata Management app and click Data elements > Data element group sets.
2. Click the + New button.
3. Fill in the Name and Description fields — see Common metadata object fields.
4. If you want to use the data element group set in analytics, select Data dimension.
5. Select data element groups and assign them.
6. Click Save.

For Show details, Sharing settings, Translate, Delete and Clone, see Common actions.

Manage data sets and data entry forms¶

About data sets and data entry forms¶

All data entry in DHIS2 is organised in data sets. A data set is a collection of data elements grouped together for data entry and data export between instances of DHIS2. To use a data set to collect data for a specific organisation unit, you must assign the organisation unit to the data set. Once you have assigned the data set to an organisation unit, that data set is available in the Data entry app. Only the organisation units you have assigned the data set to can use the data set for data entry.

A category combination can link to both data elements and data sets. If you use a category combination for a data set, the category combination is applicable for the whole form. This means that you can use categories to capture information which is common to an entire form, for example the name of a project or grant. When a data set is linked to a category combination, those categories are displayed as drop-down boxes in the Data entry app.

You create and edit data sets in the Metadata Management app. Here you define, for example, which data elements you want to include in the data set and the data collection frequency.

You enter data in the Data entry app. The Data entry app uses data entry forms to display the data sets. There are three types of data entry forms:

Note

If a data set has both a section form and a custom form, the system displays the custom form during data entry. Users who enter data cannot select which form they want to use. In web-based data entry the order of display preference is:

1. Custom form (if it exists)
2. Section form (if it exists)
3. Default form

Mobile devices do not support custom forms. In mobile-based data entry the order of display preference is:

1. Section form (if it exists)
2. Default form

In the Metadata Management app, you manage the following data set objects:

Workflow¶

You need to have data elements and categories before creating data sets and data entry forms.

1. Create a data set.
2. Assign the data set to organisation units. A default form is created automatically.
3. Create a section form or a custom form.

Now you can register data in the Data entry app.

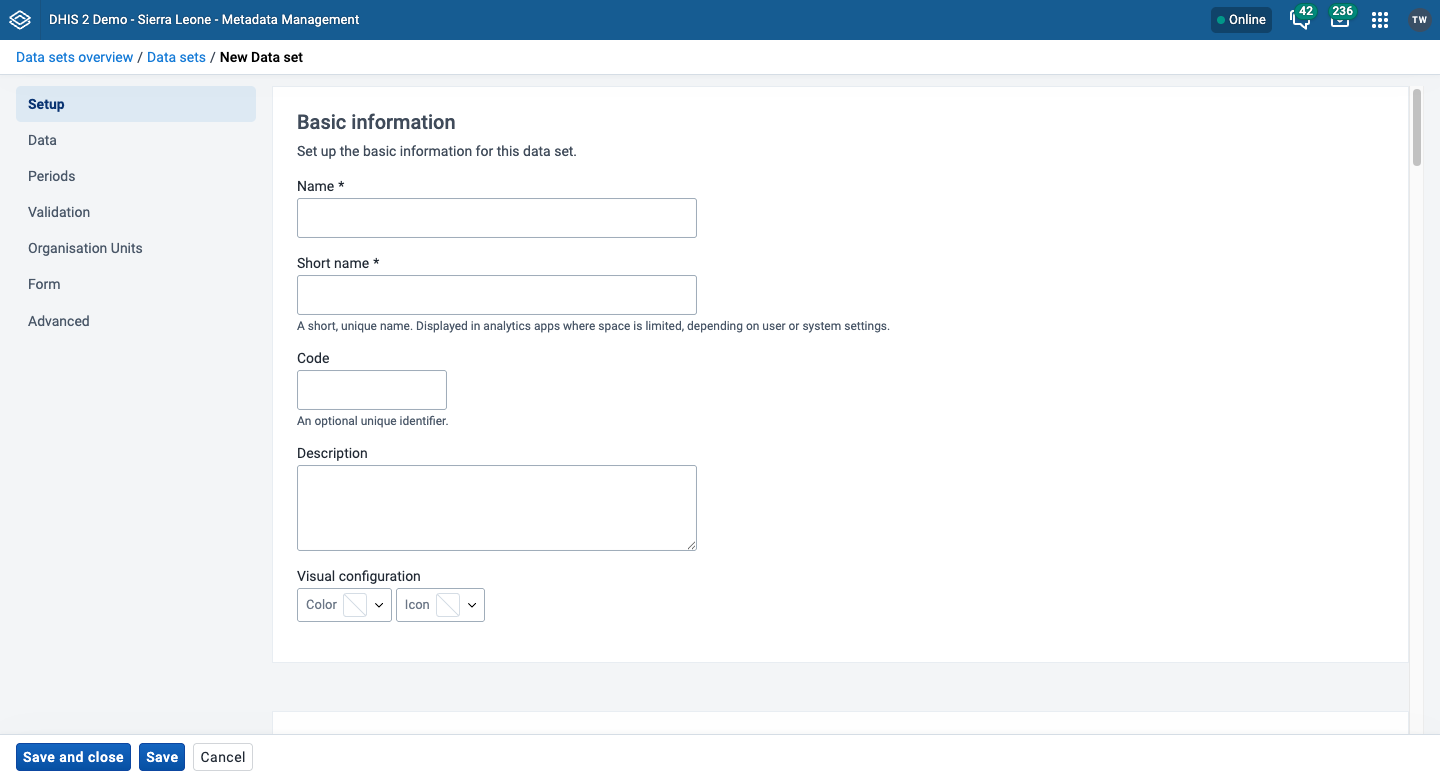

Create or edit a data set¶

1. Open the Metadata Management app and click Data sets > Data sets.
2. Click the + New button.
3. In the Name field, type the precise name of the data set.
4. In the Short name field, type a short name for the data set. The short name must be unique.
5. (Optional) In the Code field, assign a code.
6. In the Description field, type a description of the data set.
7. In the Expiry days field, enter the number of days after which you cannot edit the data set. If set to 0, users can always edit.
8. In the Open future periods for data entry field, enter the number of future periods to make available for data entry.
9. In the Days after period to qualify for timely submission field, enter the number of days after the end of a period by which a report is considered submitted on time.
10. (Optional) In the Category combination field, select the category combination to use for the data set.
11. In the Period type field, select the frequency of data entry for this data set.
12. If applicable, in the Notification recipients field, select who should receive data set completion notifications.
13. (Optional) Select Complete allowed only if validation passes to prevent completing the data entry form if there are active validation rule violations.
14. (Optional) Select Complete allowed if compulsory fields are filled to prevent completing the data entry form until all data elements marked as compulsory (see Edit compulsory data elements in a data set) have a value.
15. (Optional) Select Skip offline if you want the data set to only be available when the user is connected to the Internet.
16. In the data elements section, search for and add the data elements to include in the data set.
17. Assign the data set to one or more organisation units.
18. Click Save.

Create or edit a data set notification¶

Data set notifications are sent to notify users when a data set is completed or is about to expire. You can configure notification templates that determine what is sent, when, and to whom.

What to send?¶

In the Metadata Management app you can configure a message template and a subject for the notification. The template can include variables such as {organisationUnit.name} and {period} to personalise messages.

When to send?¶

You can configure notifications to send: * On completion — when the data set is marked as complete. * Scheduled days — a set number of days relative to the reporting period end date.

Who to send?¶

Notifications can be sent to: * User groups * Organisation unit contacts

Override data elements' category combinations in a data set¶

You can override the category combination of a data element within a specific data set. This allows you to use a different disaggregation for the same data element in different data sets.

1. Open the Metadata Management app and click Data sets > Data sets.
2. In the object list, click the options menu and select Edit.
3. In the Data elements section, click the override option next to the data element whose category combination you want to override.
4. Select the replacement category combination.
5. Click Save.

Edit compulsory data elements in a data set¶

You can mark specific data elements in a data set as compulsory. Users will be prompted before completing the data set if compulsory data elements have not been filled in.

1. Open the Metadata Management app and click Data sets > Data sets.
2. In the object list, click the options menu and select Edit compulsory data elements.
3. Select the data elements you want to mark as compulsory.
4. Click Save.

Manage section forms¶

Create a section form¶

1. Open the Metadata Management app and click Data sets > Data sets.
2. In the object list, open the relevant data set and navigate to Manage sections.
3. Click + New to add a new section.
4. Enter a Name for the section, and (optionally) a Code and a Description.
5. Select the data elements to include in this section.
6. Click Save section.

Note

Repeat for each section in the form. Each data element should belong to only one section.

Edit a section form¶

1. Open the Metadata Management app and click Data sets > Data sets.
2. In the object list, open the relevant data set and navigate to Manage sections.
3. Click the section you want to edit.
4. Modify the section as needed.
5. Click Save section.

Manage grey fields in a section form¶

You can disable (grey out) specific cells in a section form to prevent data entry for particular combinations.

1. Open the Metadata Management app and click Data sets > Data sets.
2. In the object list, open the relevant data set and navigate to Manage sections.
3. Click Manage grey fields for the section you want to modify.
4. Click on the cells you want to grey out.
5. Click Save.

Change section display order in a section form¶

1. Open the Metadata Management app and click Data sets > Data sets.
2. In the object list, open the relevant data set and navigate to Manage sections.
3. Drag and drop the sections to reorder them.

Delete a section in a section form¶

1. Open the Metadata Management app and click Data sets > Data sets.
2. In the object list, open the relevant data set and navigate to Manage sections.
3. Click the delete icon next to the section you want to remove.

Translate a section in a section form¶

1. Open the Metadata Management app and click Data sets > Data sets.
2. In the object list, open the relevant data set and navigate to Manage sections.
3. Click the translate icon next to the section.
4. Select a locale and enter a translated name.
5. Click Save.

Manage custom forms¶

Note

Custom forms use an HTML editor. While powerful, custom forms require more time to create and maintain than section forms.

Create a custom form¶

1. Open the Metadata Management app and click Data sets > Data sets.
2. In the object list, open the relevant data set and navigate to Manage form.
3. Select Custom as the form type.
4. Use the HTML editor to design your custom form. Data elements can be inserted as input fields.
5. Click Save.

Scripting in custom forms¶

Custom forms support JavaScript for advanced interactions and validation. Scripts are embedded directly in the HTML of the custom form.

Events¶

Functions¶

For Show details, Sharing settings, Translate and Delete, see Common actions — note the extra risk called out there for deleting a data set specifically. Data sets do not support Clone.

Manage indicators¶

About indicators¶

An indicator is a formula that can consist of multiple data elements, constants, organisation unit group counts and mathematical operators. Indicators typically consist of a numerator and denominator. You use indicators to calculate coverage rates, incidence and other values that are a result of data element values that have been entered into the system. Calculated totals do not have a denominator.

Note

You never enter indicator values directly in DHIS2 — they are always calculated.

An indicator formula can consist of mathematical operators (for example plus and minus), functions, and the following elements:

You can use the following functions in an indicator formula:

Alongside these functions you can use:

• the mathematical operators +, -, *, /, % (modulus) and ^ (power), with parentheses to group parts of an expression
• the comparison operators ==, !=, >, <, >= and <=
• the logical operators && (or the keyword and), || (or or) and ! (or not)

Note

DHIS2 parses indicator, predictor, validation rule and program indicator expressions with one shared grammar, but each expression type only accepts its own subset of functions. A function that belongs to another type is recognised by the parser and then rejected when the expression is validated, which is why an expression can look plausible and still fail to save. In particular:

• Aggregation functions — avg(), sum(), count(), min(), max(), median(), stddev(), stddevPop(), stddevSamp() and percentileCont() — and the distribution functions normDistCum() and normDistDen() belong to predictor generator expressions. See Create or edit a predictor. To evaluate part of an indicator expression before it is aggregated, use subExpression instead, and to override how an item aggregates use .aggregationType().
• The orgUnit.ancestor(), orgUnit.dataSet(), orgUnit.group() and orgUnit.program() functions belong to validation rule and predictor expressions.
• The d2: functions and V{...} variables belong to program indicator expressions and program rules. See Reference information: Functions, variables and operators to use in program indicator expressions and filters.
• subExpression(), .aggregationType(), .periodOffset(), .yearToDate(), [periodInYear], [yearlyPeriodCount] and indicator references are accepted only in indicator expressions.

The aggregation types you can pass to .aggregationType() are:

Examples of .aggregationType, .maxDate, .minDate and .periodOffset:

Indicator SubExpressions¶

Normally an indicator aggregates a data element's values first and then evaluates the expression. For example, in the expression:

if( #{nYahlae7fe6} > 10, 1, 0 )

if the data element has aggregation type SUM, DHIS2 sums all of that data element's values for the relevant period and then tests whether the sum is greater than 10.

Sometimes you need the opposite: evaluate each value before it is aggregated. For example, to show how many facilities in a district recorded a value greater than 10, wrap the test in subExpression:

subExpression( if( #{nYahlae7fe6} > 10, 1, 0 ) )

Each individual data value is tested, returning 1 or 0, and (assuming the data element aggregates with SUM) the 1s and 0s are then summed — giving a count of how many values exceeded 10.

Notes on SubExpressions:

• The 1s and 0s are only summed if the data element's aggregation type is SUM. If it has a different aggregation type and you want them summed, override the aggregation type inside the sub-expression:

  subExpression( if( #{nYahlae7fe6} > 10, 1, 0 ) ).aggregationType(SUM)


• A sub-expression may reference only one data element, but it may reference it more than once. For example:

  subExpression( if( #{nYahlae7fe6} > 10 && #{nYahlae7fe6} <= 20, 1, 0 ) )


• A sub-expression may reference a data element with a category option combination and/or an attribute option combination, but it must be exactly the same reference each time. For example:

  subExpression( if( #{nYahlae7fe6.beec4Dewah8} > 10 && #{nYahlae7fe6.beec4Dewah8} <= 20, 1, 0 ) )


• To evaluate an expression before aggregation that involves program data, or more than one data element, category option combination or attribute option combination, use a predictor instead and store the result as a separate data element. You can then reference that predicted data element in an indicator or directly in analytics.

Indicator Year-to-date¶

Indicators can compute year-to-date values using three expression elements: .yearToDate(), [periodInYear] and [yearlyPeriodCount].

In the examples below, #{a} can be #{dataElementUID} or any valid indicator expression item that returns a data value, such as #{dataElementUID.catOptionComboUid}, I{programIndicatorUID} or N{indicatorUID}.

Note

A weekly period is treated as part of a year if four or more of its days fall in that year.

Notes on missing data¶

If data is missing for some of the periods in a year-to-date calculation, the result is based only on the periods that have data. Bear this in mind when interpreting year-to-date figures — a low value may mean under-performance or may simply mean a period has not been reported yet.

Workflow¶

1. Create indicator types (unless using the default types).
2. Create indicators.
3. (Optional) Create indicator groups.
4. (Optional) Create indicator group sets.

Create or edit an indicator type¶

Indicator types define the factor by which indicator values are multiplied when shown in reports or exported to analytics. A "Per cent" indicator type, for example, multiplies values by 100.

1. Open the Metadata Management app and click Indicators and Predictors > Indicator types.
2. Click the + New button.
3. In the Name field, type the name of the indicator type, for example "Per cent".
4. In the Factor field, type the factor. For a percentage indicator, type 100.
5. If the indicator type does not have a denominator (for example a count), select Number (without denominator).
6. Click Save.

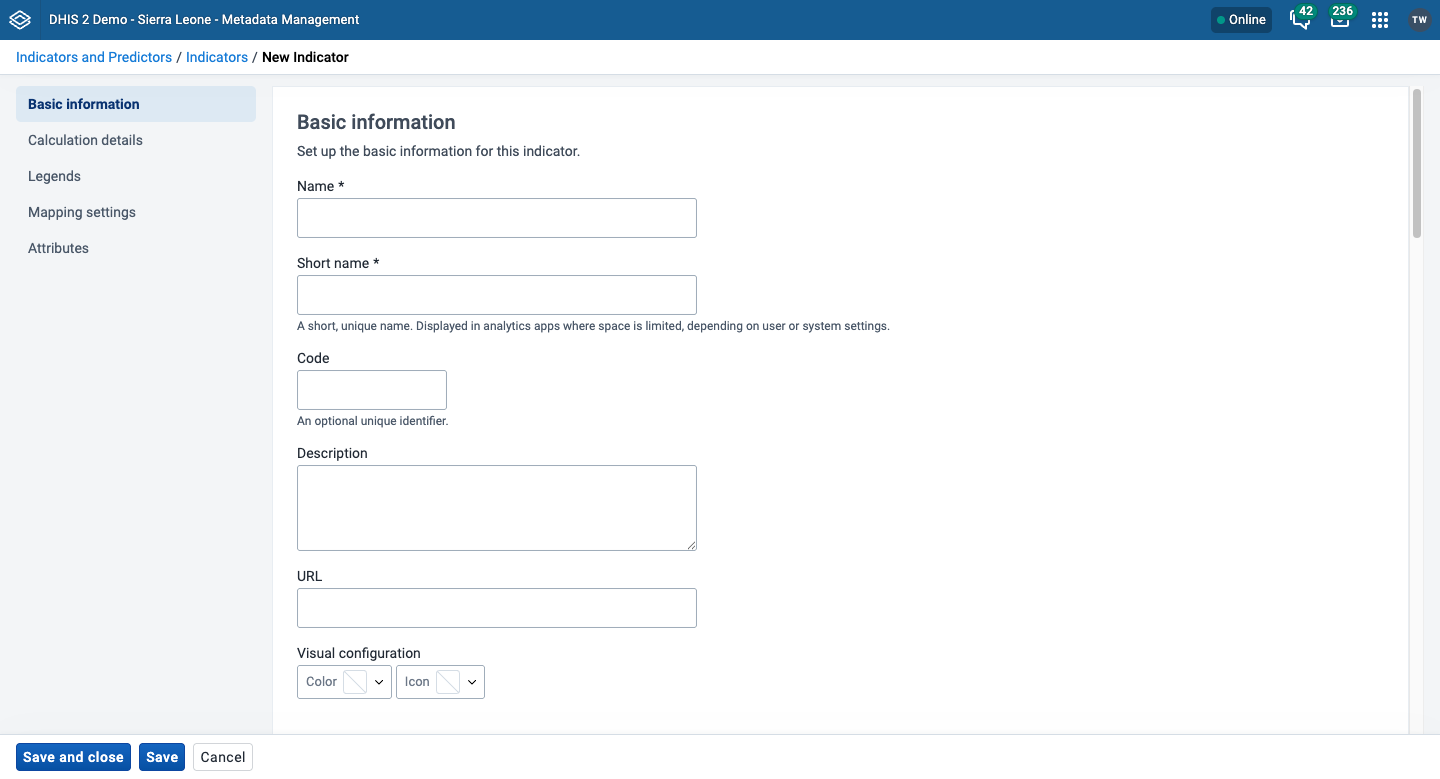

Create or edit an indicator¶

1. Open the Metadata Management app and click Indicators and Predictors > Indicators.
2. Click the + New button, or click the options menu next to an existing indicator and select Edit.
3. In the Name field, type the full name of the indicator, for example "Incidence of confirmed malaria cases per 1000 population".

4. In the Short name field, type an abbreviated name, for example "Inc conf. malaria per 1000 pop". The short name must be unique and 50 characters or less.

5. (Optional) In the Code field, assign a code.

6. (Optional) In the Color field, assign a color to represent the indicator.
7. (Optional) In the Icon field, assign an icon to illustrate the meaning of the indicator.
8. In the Description field, type a brief, informative description of the indicator and how it is calculated.
9. If you want to apply an annualization factor during calculation, select Annualized. This scales the numerator up to a yearly equivalent so it can be compared against a denominator that is already annual, such as a population figure. Typically the numerator is multiplied by 365 divided by the number of days in the reporting period.
10. Select the number of Decimals in data output.
11. Select an Indicator type. This field determines a factor that is automatically applied during calculation.
12. (Optional) Assign one or multiple Legends.
13. (Optional) In the URL field, enter a link — for example to an indicator registry — where a full metadata description of the indicator is available.
14. (Optional) Enter a Category option combination for aggregate data export and an Attribute option combination for aggregate data export. These settings are used when mapping aggregated data exported to another server.
15. (Optional) Enter values for any custom attributes.
16. Click Edit numerator:
    1. Type a clear description of the numerator.
    2. Define the numerator by double-clicking components in the right-hand field. Add mathematical operators by double-clicking the icons below the formula field.
    3. Click Done.
17. Click Edit denominator:
    1. Type a clear description of the denominator.
    2. Define the denominator using the formula editor as above.
    3. Click Done.
18. (Optional) Assign the indicator to any compulsory indicator group sets.
19. Click Save.

Create or edit an indicator group¶

1. Open the Metadata Management app and click Indicators and Predictors > Indicator groups.
2. Click the + New button.
3. Type a Name.
4. Select indicators and assign them.
5. Click Save.

Create or edit an indicator group set¶

1. Open the Metadata Management app and click Indicators and Predictors > Indicator group sets.
2. Click the + New button.
3. Fill in the Name, Short name and Description fields — see Common metadata object fields.
4. If you want to use the indicator group set as a dimension in analytics, select Data dimension.
5. Select Compulsory if every indicator should be required to belong to a group in this group set.
6. Select indicator groups and assign them.
7. Click Save.

Merge indicators¶

Merging consolidates two duplicate indicators into one, reassigning all references from the source to the target and then deleting the source.

Note

You must have the F_INDICATOR_MERGE authority to access this page.

1. Open the Metadata Management app and navigate to Indicators > Merge Indicators (or go directly to #/indicators/merge).
2. Search for and select the source indicator (the one to be removed).
3. Search for and select the target indicator (the one to keep).
4. Review the summary of changes.
5. Click Confirm merge.

Warning

Merging is irreversible. The source indicator will be permanently deleted.

Merge indicator types¶

Note

You must have the F_INDICATOR_TYPE_MERGE authority to access this page.

1. Open the Metadata Management app and navigate to Indicator types > Merge Indicator types (or go directly to #/indicatorTypes/merge).
2. Search for and select the source indicator type (the one to be removed).
3. Search for and select the target indicator type (the one to keep).
4. Review the summary of changes.
5. Click Confirm merge.

For Show details, Sharing settings, Translate, Delete and Clone, see Common actions. Indicators and indicator types both support merging; see Merge.

Manage organisation units¶

In this section you will learn how to:

• Create a new organisation unit and build up the organisation unit hierarchy
• Create organisation unit groups, group sets, and assign organisation units to them
• Modify the organisation unit hierarchy

About organisation units¶

The organisation unit hierarchy defines the organisation structure of DHIS2, for example how health facilities, administrative areas and other geographical areas are arranged with respect to each other. It is the where dimension of DHIS2, similar to how periods represent the when dimension.

The organisation unit hierarchy is built up by parent-child relations. In DHIS2, each of these nodes is an organisation unit. A country might for example have eight provinces, and each province might have a number of districts as children. Normally, the lowest levels consist of facilities where data is collected. Data collecting facilities can also be located at higher levels, for example national or provincial hospitals. You can therefore create skewed organisation trees in DHIS2.

• You can only have one organisation hierarchy at a time.
• You can have any number of levels in a hierarchy. Typically national organisation hierarchies in public health have four to six levels.
• You can create additional classifications by using organisation unit groups and organisation unit group sets, for example to create parallel administrative boundaries to the health care sector.
• It is recommended to use organisation unit groups to create a non-geographical hierarchy.
• An organisation unit can only be a member of a single organisation unit group within an organisation unit group set.
• An organisation unit group can be part of multiple organisation unit group sets.
• The organisation unit hierarchy is the main vehicle for data aggregation on the geographical dimension.
• When you close an organisation unit, you cannot register or edit events to this organisation unit in the Capture app.

Important

You can change the organisation unit hierarchy after you have created it, even if organisation units are collecting data. However, DHIS2 always uses the latest hierarchy for data aggregation. So if you change the hierarchy, you lose the temporal representation of the hierarchy over time.

For example: District A is sub-divided into District B and District C. Facilities that belonged to District A are reassigned to District B and C. Any historical data entered before the split is still registered as belonging to District B and C, not to the obsolete District A.

In the Metadata Management app, you manage the following organisation unit objects:

Workflow¶

1. Create organisation units (representing the hierarchy nodes, top to bottom).
2. Create organisation unit groups.
3. Create organisation unit group sets.
4. Assign organisation units to groups.
5. Assign organisation unit groups to group sets.

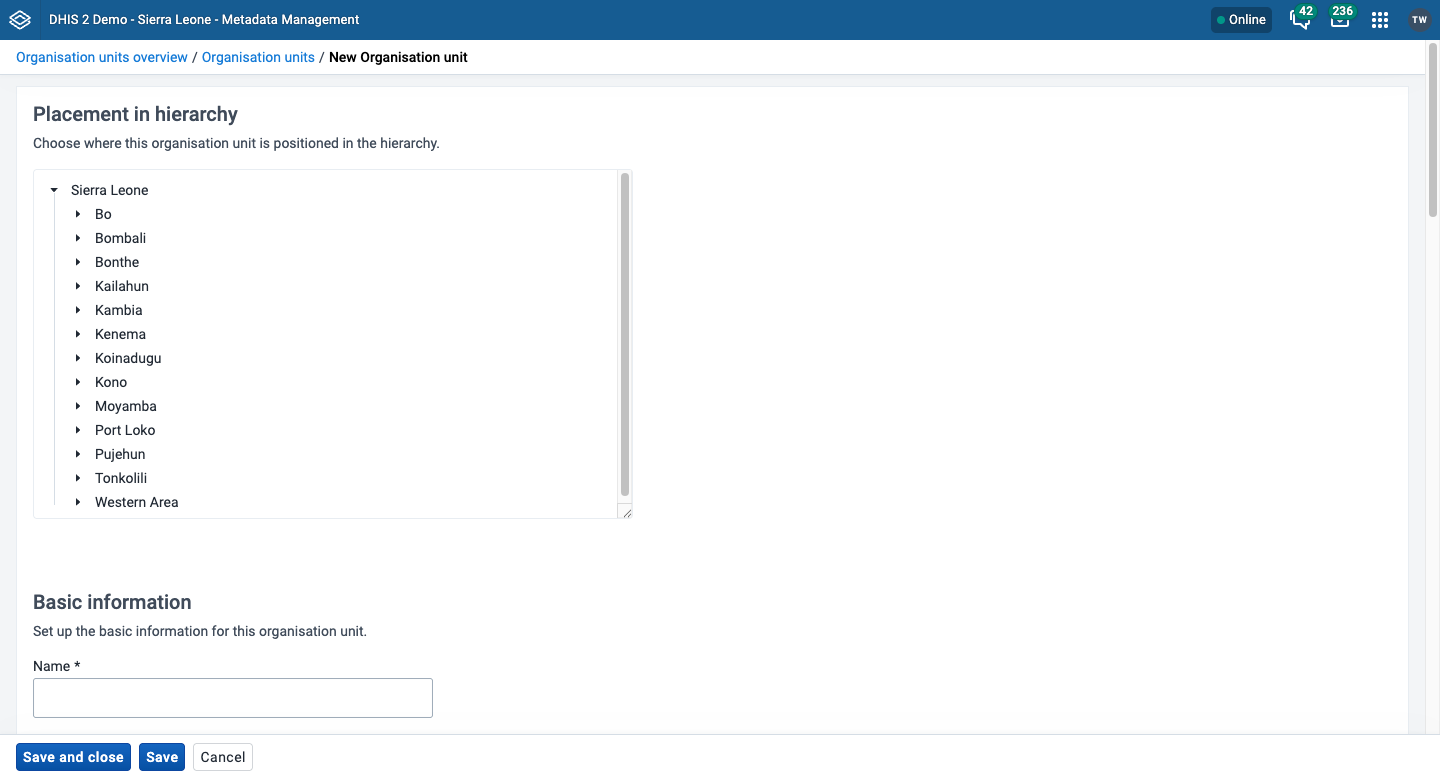

Create or edit an organisation unit¶

1. Open the Metadata Management app and click Organisation units > Organisation units. On the left side of the screen, a tree displays the existing organisation unit hierarchy. Click on an organisation unit in the tree to select it; it will be highlighted. When you add a new organisation unit, it is created as a child of the currently selected organisation unit.

2. Click the + New button.

3. Fill in Name, Short name, Code, Description, Comment and contact details (Contact person, Address, Phone number, Email) — see Common metadata object fields. Only Name is required.
4. Set an Opening date — the date from which the organisation unit is active. Organisation units with a future opening date will not appear in analytics or data entry unless explicitly requested.
5. (Optional) Set a Closed date — the date from which the organisation unit is no longer active. See Close an organisation unit.
6. (Optional) Add Geometry — point or polygon coordinates for the organisation unit.
7. Click Save.

Create or edit an organisation unit group¶

Organisation unit groups allow you to classify organisation units for analysis and reporting.

1. Open the Metadata Management app and click Organisation units > Organisation unit groups.
2. Click the + New button.
3. Fill in the Name, Short name and (optionally) Code and Description fields — see Common metadata object fields.
4. (Optional) Assign a Symbol for use on maps.
5. (Optional) Select a Color, used to display the group on maps and in group set reporting.
6. Select organisation units and assign them.
7. Click Save.

Create or edit an organisation unit group set¶

Organisation unit group sets allow you to classify multiple organisation unit groups into a single dimension, for example "Type of facility" (comprising groups such as "Hospital", "Health centre" and "Community health post").

1. Open the Metadata Management app and click Organisation units > Organisation unit group sets.
2. Click the + New button.
3. Fill in the Name and Description fields — see Common metadata object fields.
4. Select Compulsory if you want every organisation unit to be required to be a member of a group in this group set.
5. Select Data dimension to make this group set available as a dimension in analytics.
6. Select organisation unit groups and assign them.
7. Click Save.

Assign names to organisation unit levels¶

When you have created your organisation unit hierarchy, you can assign names to each level. For example, in a national hierarchy, Level 1 might be named "National", Level 2 "Province", Level 3 "District" and Level 4 "Facility".

1. Open the Metadata Management app and click Organisation units > Organisation unit levels.
2. For each level in the list, type a name.
3. Click Save.

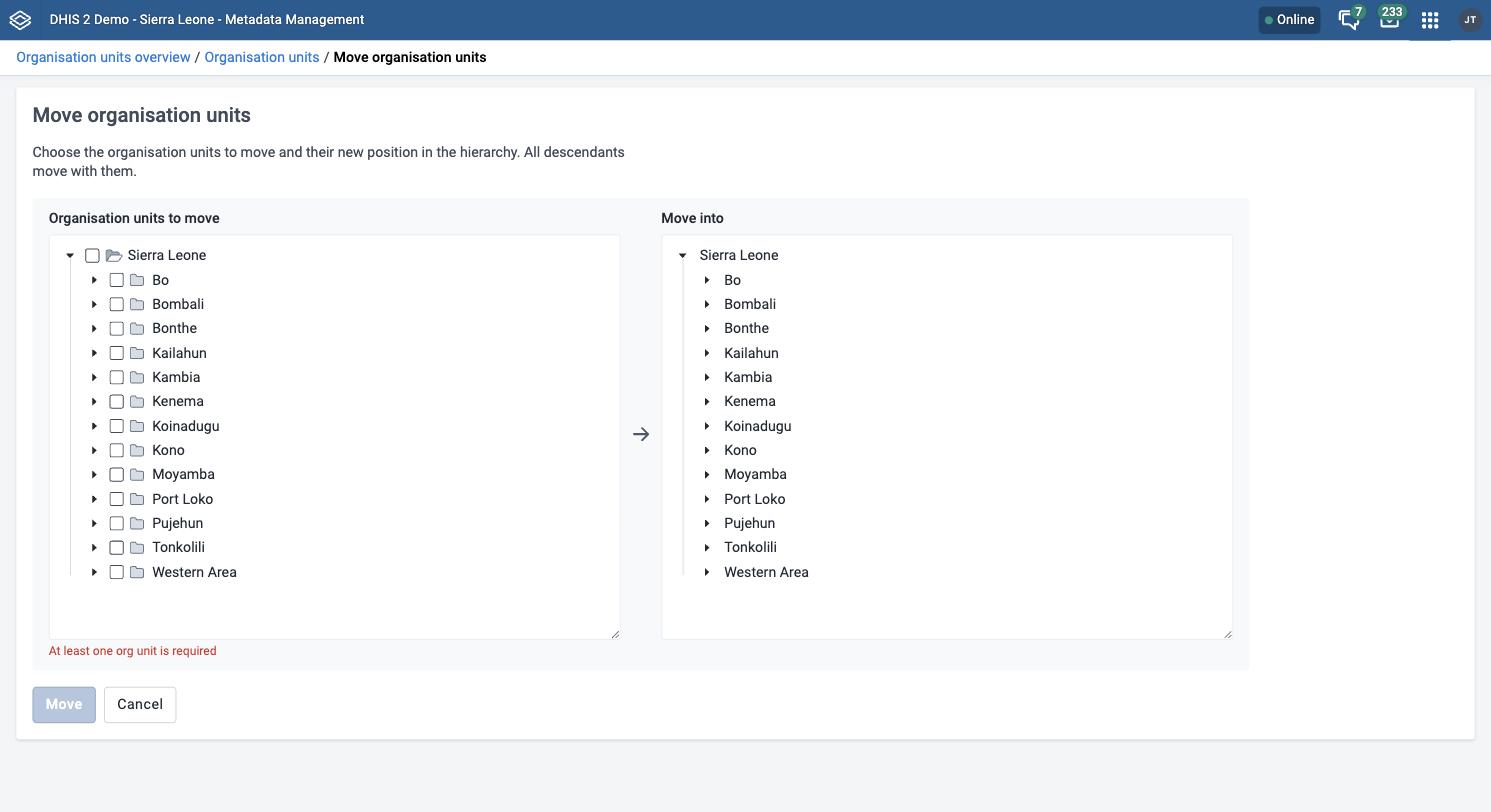

Move organisation units within a hierarchy¶

You can move organisation units within the hierarchy by changing the parent of a selected organisation unit. This is done on a dedicated page rather than in the main organisation unit list.

1. Open the Metadata Management app and click Organisation units > Hierarchy operations in the left-hand sidebar.
2. In the left-hand Organisation units to move tree, select the organisation unit or units you want to move. Hold Shift or Ctrl to select more than one.

Note

If a selected organisation unit has children, all of them move with it to the new parent.

1. In the right-hand Move into tree, select the organisation unit you want to move the selection to.
2. Click Move x organisation units, where x is the number of organisation units you selected.

Your changes are reflected in the hierarchy tree immediately.

Close an organisation unit¶

When you close an organisation unit, you cannot register or edit events for this organisation unit in the Capture app.

1. Open the Metadata Management app and click Organisation units > Organisation units.
2. In the object list, click the options menu and select Edit.
3. Enter a Closed date.
4. Click Save.

For Show details, Sharing settings, Translate, Delete and Clone, see Common actions. Organisation unit levels are the exception — they only support assigning names and translating (via the Translate icon directly, since they have no options menu); they don't support Show details, Sharing settings, Delete or Clone.

Manage validation rules¶

About validation rules¶

A validation rule is based on an expression. The expression defines a relationship between data element values. The expression forms a condition with certain logical criteria.

The expression consists of:

• A left side

• A right side

• An operator

A validation rule asserting that the total number of vaccines given to infants is less than or equal to the total number of infants.

The left and right sides must return numeric values.

In the Metadata Management app, you manage the following validation rule objects:

About sliding windows¶

You can use sliding windows to group data across multiple periods as opposed to selecting data for a single period. Sliding windows have a size, that is to say, the number of days to cover, a starting point and an end point. The example below shows disease surveillance data:

• The data in the orange section, selects data based on the current period. There is a threshold, which is calculated once for each week or period, and this is shown in the "Result" section.

• The data in the blue section is the sliding window. It selects data from the past 7 days. The "Result" shows the total number of confirmed cases of a disease.

• The validation rule makes sure users are notified when the total number of cases breaks the threshold for the period.

See also: How to use sliding windows when you're Creating or editing a validation rule.

About validation rule groups¶

A validation rule group allows you to group related validation rules. When you run a validation rule analysis, you can choose to run all of the validation rules in your system, or just the validation rules in one group.

About validation notifications¶

You can configure a validation rule analysis to automatically send notifications about validation errors to selected user groups. These messages are called validation notifications. They are sent via the internal DHIS2 messaging system.

You can send validation rule notifications as individual messages or as message summaries. This is useful, for example, if you want to send individual messages for high-priority disease outbreaks, and summaries for low-priority routine data validation errors.

About validation rule functions¶

You can use the following functions in a validation rule left side or right side:

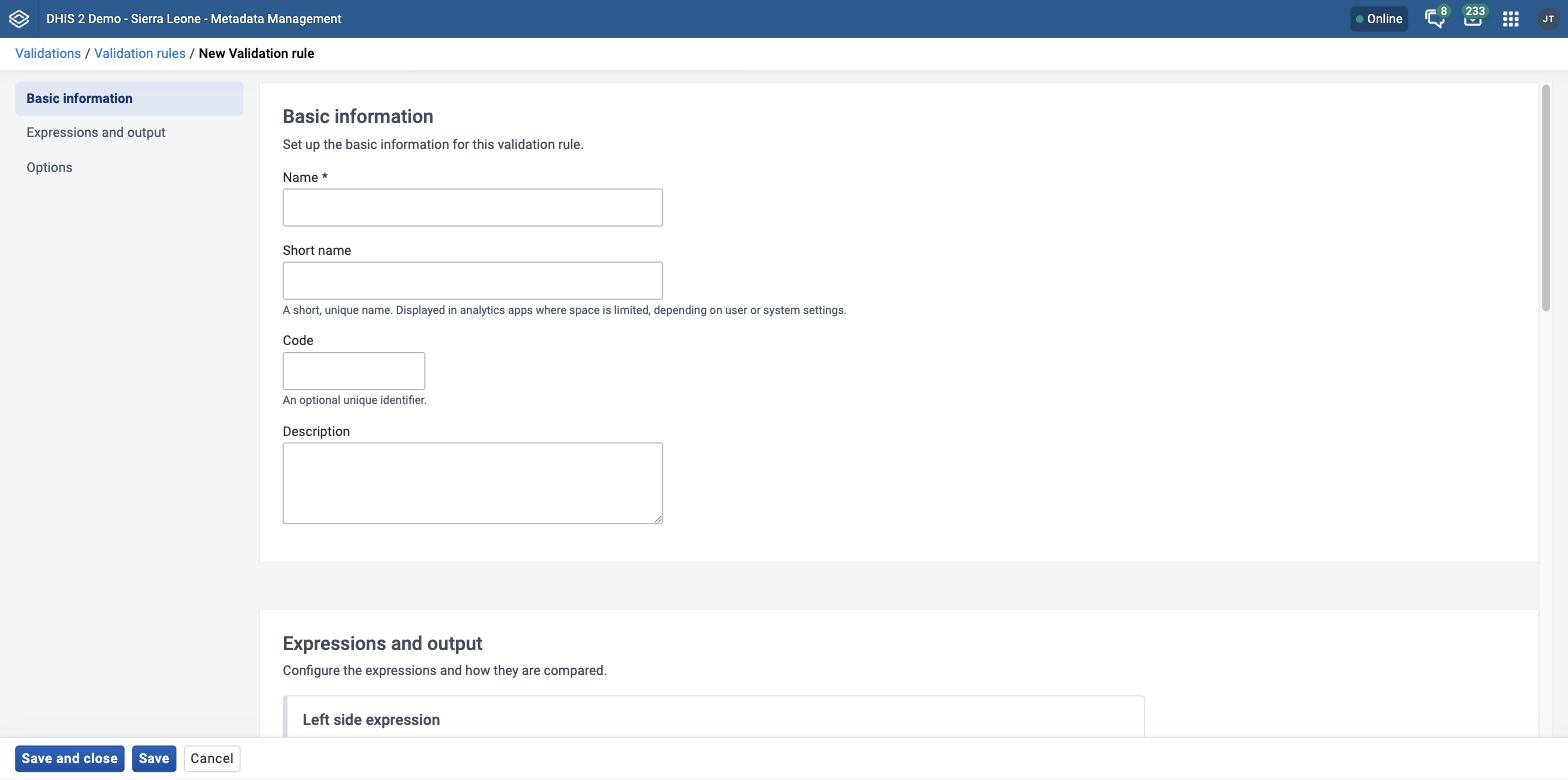

Create or edit a validation rule¶

1. Open the Metadata Management app and click Validations > Validation rules in the left-hand sidebar.

2. Click the + New button.

3. Type a Name.

   The name must be unique among the validation rules.

4. (Optional) In the Code field, assign a code.

5. (Optional) Type a Description.

6. (Optional) Type an Instruction. This is what users will see, both in validation analysis and when reviewing rule violations during data entry, so it's recommended to always provide an instruction that makes it clear what action a user should take when the rule is triggered.

7. Select an Importance: High, Medium or Low.

8. Select a Period type.

9. Select an Operator: Compulsory pair, Equal to, Exclusive pair, Greater than, Greater than or equal to or Not equal to.

   The Compulsory pair operator allows to require that data values must be entered for a form for both left and right sides of the expression, or for neither side. This means that you can require that if one field in a form is filled, then one or more other fields must also be filled.

   The Exclusive pair allows to assert that if any value exist on the left side then there should be no values on the right side (or vice versa). This means that data elements which compose the rule on either side should be mutually exclusive from each other, for a given time period / organisation unit /attribute option combo.

10. Create the left side of the expression:

    1. Click Left side.

    2. Select Sliding window if you want to view data relative to the period you are comparing. See also About validation rules.

    3. Select a Missing value strategy. This selection sets how the system evaluates a validation rule if data is missing.

       Option	Description
       Skip if any value is missing	The validation rule will be skipped if any of the values which compose the expression are missing. This is the default option. Always select this option when you use the Exclusive pair or Compulsory pair operator.
       Skip if all values are missing	The validation rule will be skipped only if all of the operands which compose it are missing.
       Never skip	The validation rule will never be skipped in case of missing data, and all missing operands will be treated effectively as a zero.

    4. Type a Description.

    5. Build an expression based on the available data elements, program objects, organisation units, counts and constants.

       In the right pane, double-click the data objects you want to include in the expression. Combine with the mathematical operators located below the left pane.

    6. Click Save.

11. Create the right side of the expression:

    1. Click Right side.

    2. Select a Missing value strategy. This selection sets how the system evaluates a validation rule if data is missing.

       Option	Description
       Skip if any value is missing	The validation rule will be skipped if any of the values which compose the expression are missing. This is the default option. Always select this option when you use the Exclusive pair or Compulsory pair operator.
       Skip if all values are missing	The validation rule will be skipped only if all of the operands which compose it are missing.
       Never skip	The validation rule will never be skipped in case of missing data, and all missing operands will be treated effectively as a zero.

    3. Select Sliding window if you want to view data relative to the period you are comparing. See also About validation rules.

    4. Type a Description.

    5. Build an expression based on the available data elements, program objects, organisation units, counts and constants.

       In the right pane, double-click the data objects you want to include in the expression. Combine with the mathematical operators located below the left pane.

    6. Click Save.

12. (Optional) Choose which Organisation unit levels this rule should be evaluated for. Leaving this empty will cause the validation rule to be evaluated at all levels.

13. (Optional) Select Skip this rule during form validation to stop this rule from being triggered during data entry.

14. Click Save.

Create or edit a validation rule group¶

1. Open the Metadata Management app and click Validations > Validation rule groups in the left-hand sidebar.

2. Click the + New button.

3. Type a Name.

4. (Optional) In the Code field, assign a code.

5. (Optional) Type a Description.

6. Double-click the Validation rules you want to assign to the group.

7. Click Save.

Create or edit a validation notification¶

1. Open the Metadata Management app and click Validations > Validation notifications in the left-hand sidebar.

2. Click the + New button.

3. Type a Name.

4. (Optional) In the Code field, assign a code.

5. Select Validation rules.

6. Select Recipient user groups.

7. (Optional) Select Notify users in hierarchy only.

   If you select this option, the system will filter the recipient users. (The system derives the recipient users from the recipient user groups.) The filter is based on which organisation unit the recipient user belongs to. The users linked to organisation units which are ancestors of the organisation unit where the violation took place will receive validation notifications. The system will ignore other users and these users won't receive validation notifications.

8. Create the message template:

   1. Create the Subject template.

      Double-click the parameters in the Template variables field to add them to your subject.

   2. Create the Message template.

      Double-click the parameter names in the Template variables field to add them to your message.

9. Click Save.

For Show details, Translate, Delete and Clone, see Common actions. Validation rule groups additionally support Sharing settings (also in Common actions).

Manage attributes¶

About attributes¶

You can use metadata attributes to add additional information to metadata objects. In addition to the standard attributes for each of these objects it may be useful to store information for additional attributes, for example the collection method for a data element.

In the Metadata Management app, you manage the following attribute objects:

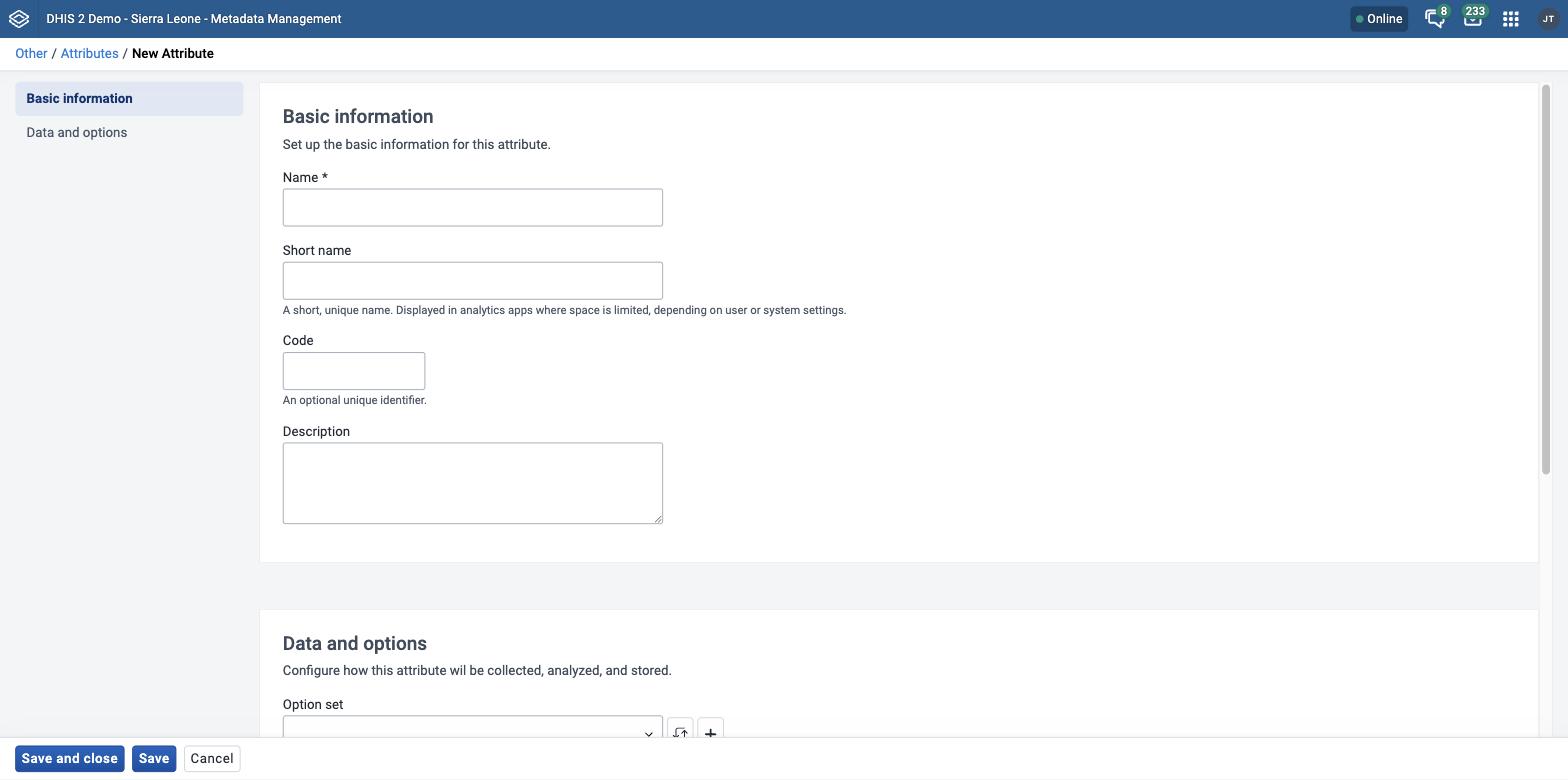

Create or edit an attribute¶

1. Open the Metadata Management app and click Other > Attributes in the left-hand sidebar.

2. Click the + New button.

3. In the Name field, type the name of the attribute.

   Each attribute must have a unique name.

4. (Optional) In the Code field, assign a code.

5. Select a Value type.

   If the value supplied for the attribute does not match the value type you will get a warning.

6. (Optional) Select an Option set to restrict the attribute's values to a predefined list.

7. (Optional) In the Sort order field, type a number to control where this attribute appears relative to other attributes when editing an object's form. Attributes without a sort order are shown afterwards, in alphabetical order.

8. Select the options you want, for example:

   • Select Mandatory if you want an object to always have the dynamic attribute.

   • Select Unique if you want the system to enforce that values are unique for a specific object type.

9. Click Save.

   The dynamic attribute is now available for the objects you assigned it to.

For Show details, Translate, Delete and Clone, see Common actions. Attributes do not support Sharing settings.

Manage constants¶

About constants¶

Constants are static values which can be made available to users for use in data elements and indicators. Some indicators, such as "Couple year protection rate" depend on constants which usually do not change over time.

In the Metadata Management app, you manage the following constant objects:

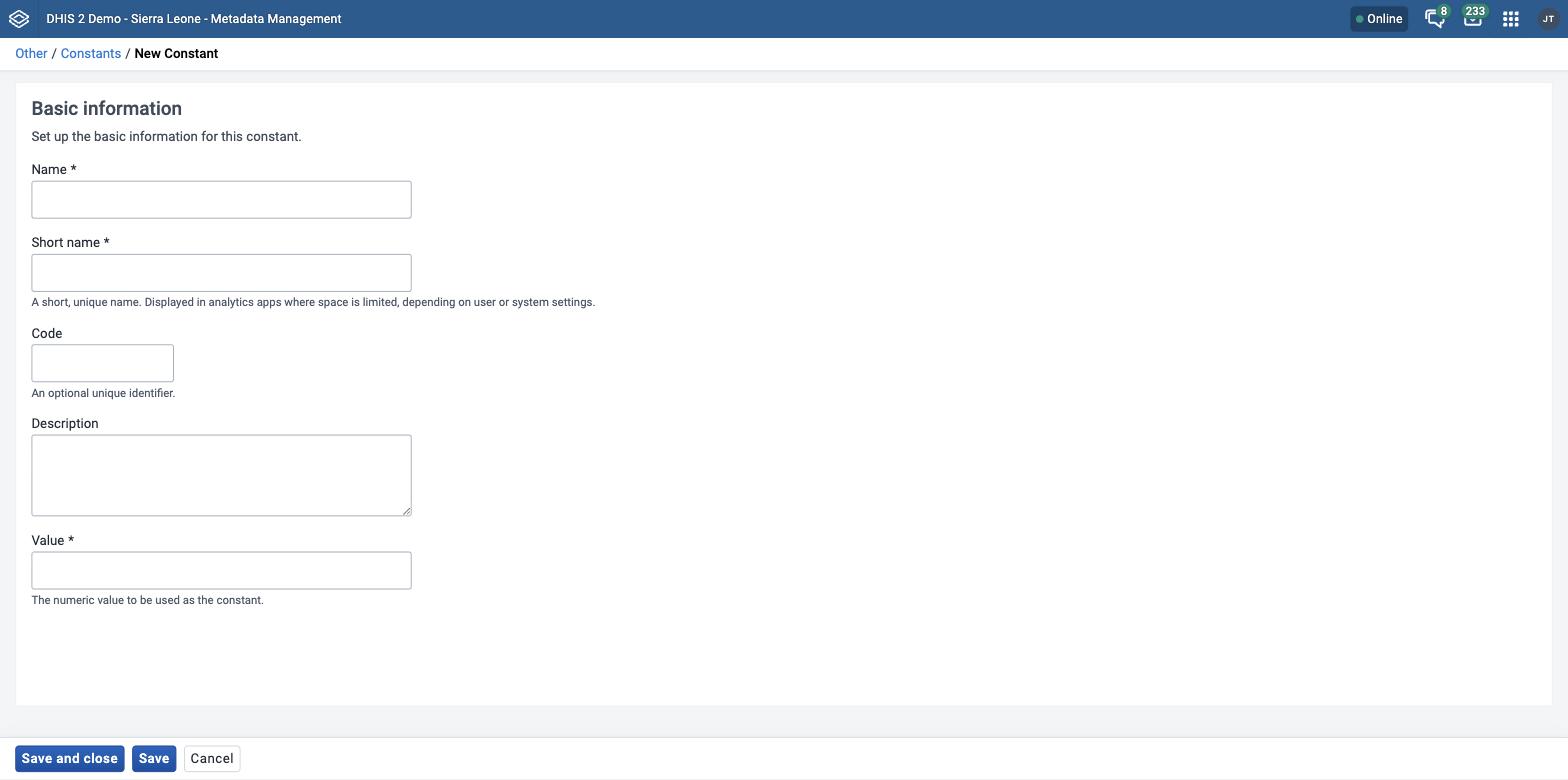

Create or edit a constant¶

1. Open the Metadata Management app and click Other > Constants in the left-hand sidebar.

2. Click the + New button.

3. In the Name field, type the name of the constant.

4. In the Short name field, type an abbreviated name of the constant.

5. (Optional) In the Code field, assign a code.

6. In the Description field, type a brief, informative description of the constant.

7. In the Value field, define the constant's value.

8. Click Save.

   The constant is now available for use.

For Show details, Sharing settings, Translate, Delete and Clone, see Common actions.

Manage option sets¶

About option sets¶

Option sets provide a pre-defined drop-down (enumerated) list for use in DHIS2. You can define any kind of options.

An option set called "Delivery type" would have the options: "Normal", "Breach", "Caesarian" and "Assisted".

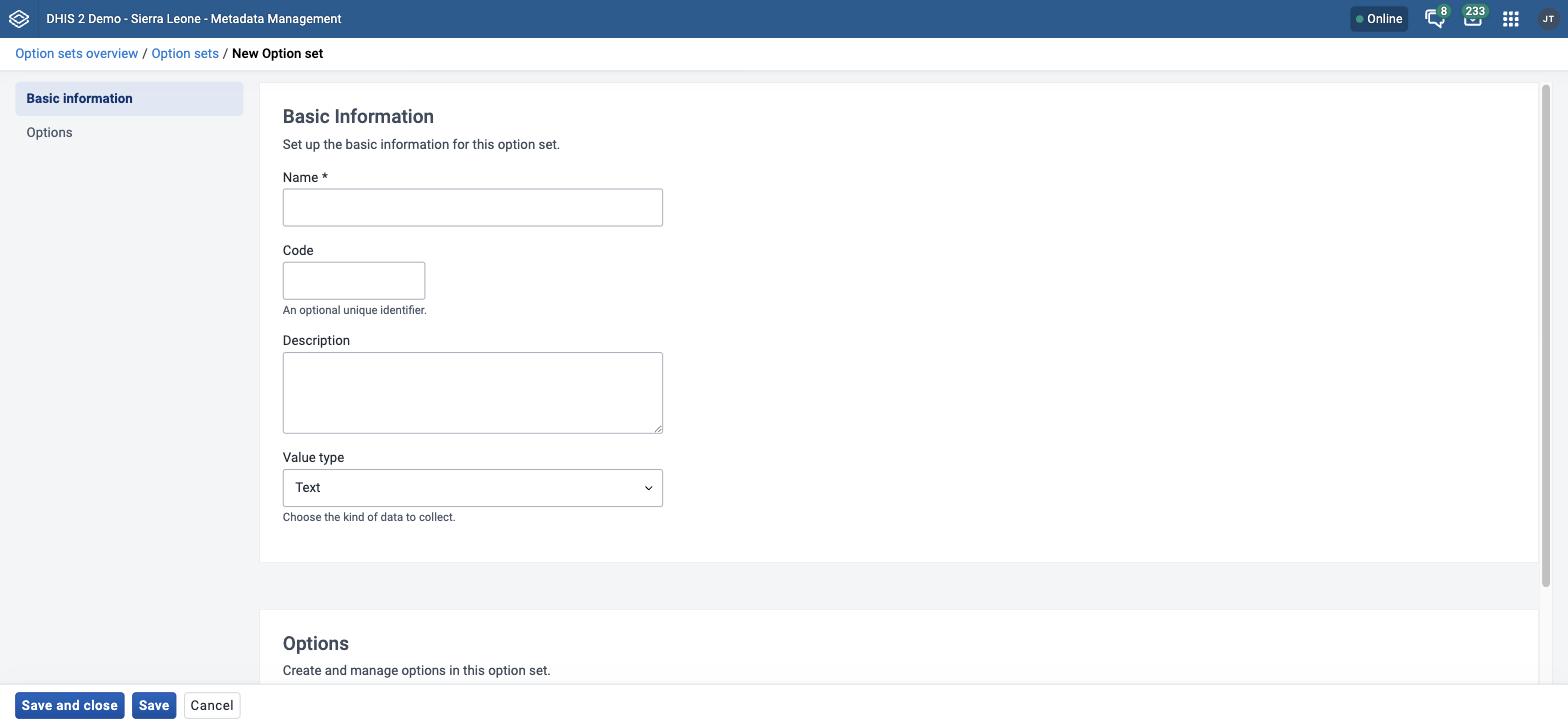

Create or edit an option set¶

Important

Option sets must have a code as well as a name. You can change the names but you can't change the codes. Both names and codes of all options must be unique, even across different option sets.

1. Open the Metadata Management app and click Option sets > Option sets in the left-hand sidebar.

2. Click the + New button.

3. In the Primary details tab, fill in Name, Code and (optionally) Description — see Common metadata object fields — select a Value type, then click Save.

4. For each option you need, perform the following tasks:

   1. Click the Options tab.

   2. Click the + New button.

   3. Type a Name and a Code. Optionally also select a Color and an Icon which will be used for this option in the data capture apps.

   4. Sort the options by name, code/value or manually.

   5. Click Save.

Create or edit an option group¶

You can group and classify options within an option set by using option groups. This way you can create a subset of options in an option set. The main purpose of this is to be able to filter huge option sets into smaller, related parts.

Options that are grouped can be hidden or shown together in the Capture app through program rules.

Note

You cannot change the Option set selected in an Option group once it has been created.

1. Open the Metadata Management app and click Option sets > Option groups in the left-hand sidebar.
2. Click the + New button.
3. Fill in Name, Short name and Code — see Common metadata object fields.
4. Select the Option set this group belongs to.
5. Once an Option set is selected, assign the Options you want to group.
6. Click Save.

Create or edit an option group set¶

Option group sets allow you to categorise multiple option groups into a set. The main purpose of the option group set is to add more dimensionality to your captured data for analysis.

Note

You cannot change the Option set selected in an Option group set once it has been created.

1. Open the Metadata Management app and click Option sets > Option group sets in the left-hand sidebar.
2. Click the + New button.
3. Fill in Name, Code and Description — see Common metadata object fields.
4. Select the Option set this group set belongs to.
5. (Optional) Select Data dimension to make the group set available to analytics as another dimension, in addition to the standard dimensions of "Period" and "Organisation unit".

6. Select option groups and assign them. Available option groups are displayed in the left panel. Option groups that are currently members of the option group set are displayed in the right hand panel.

7. Click Save.

For Show details, Sharing settings, Translate, Delete and Clone, see Common actions.

Manage legends¶

About legends¶

You can create, edit, clone, share, delete, show details for and translate legends, to make the maps you set up for your users meaningful. You create the maps themselves in the Maps app.

Note

Continuous legends must consist of legend items that end and start with the same value, for example: 0-50 and 50-80. Do not set legend items like this: 0-50 and 51-80. This will create gaps in your legend.

Create or edit a legend¶

Note

It is not allowed to have gaps in a legend.

It is not allowed to have overlapping legend items.

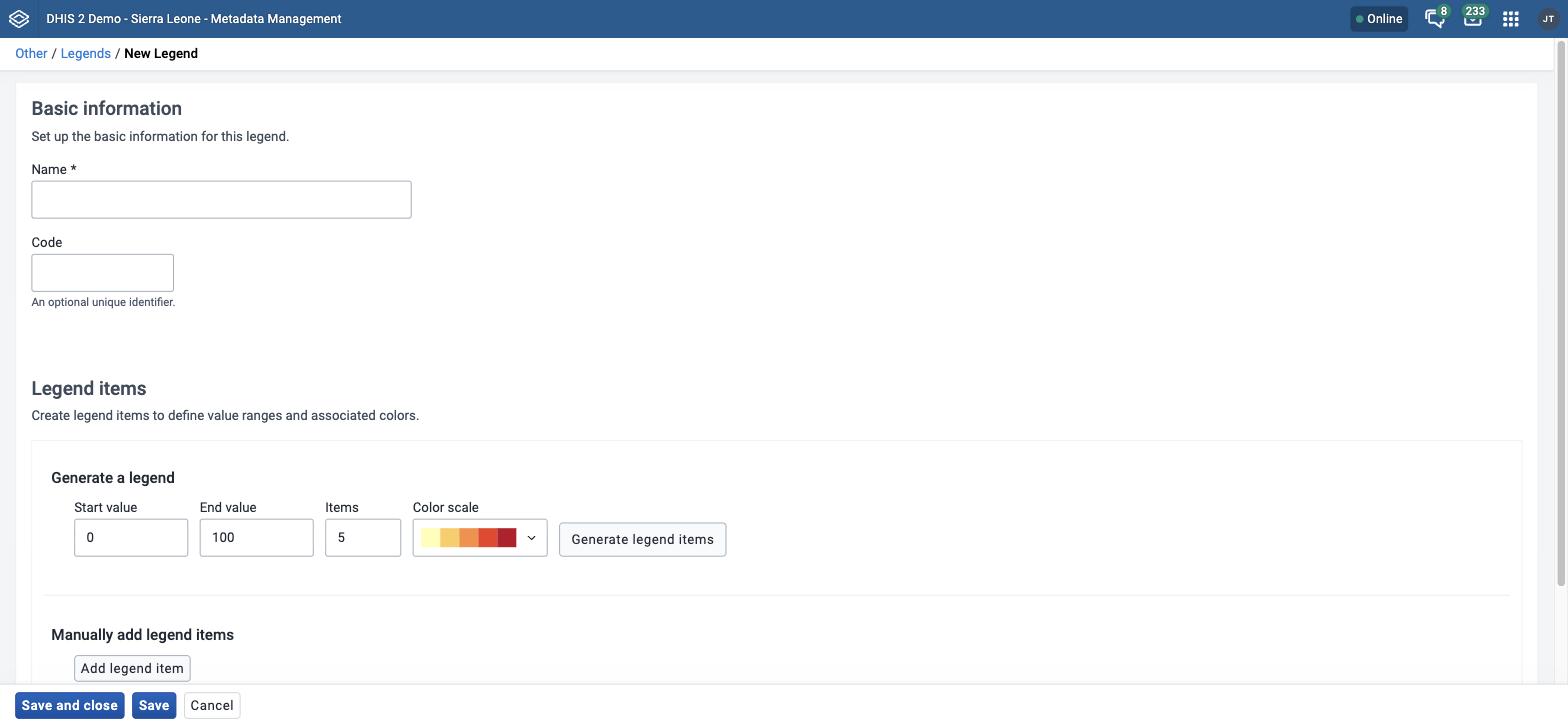

1. Open the Metadata Management app and click Other > Legends in the left-hand sidebar.

2. Click the + New button.

3. In the Name field, type the legend name.

4. (Optional) In the Code field, assign a code.

5. Create the legend items you want to have in your legend:

   1. Select Start value and End value.

   2. Select Number of legend items.

   3. Select a color scheme.

   4. Click Create legend items.

   Tip

   Click the options menu to edit or delete a legend item.

6. (Optional) Add more legend items:

   1. Click the + New button.

   2. Enter a name and select a start value, an end value and a color.

   3. Click OK.

7. (Optional) Change the color scales.

   1. Click the color scale to view a list of color scale options, and select one.

   2. To customise a color scale, click the + New button. In the Edit legend item dialog, click the color scale button and hand-pick colors, or enter your color values.

8. Click Save.

A finished legend with four items looks like this:

Assign a legend to an indicator or data element¶

You can assign a legend to an indicator or a data element in the Metadata Management app, either when you create the object or when you edit it. When you then select that indicator or data element in the Maps app, the system automatically selects the assigned legend.

For Show details, Sharing settings, Translate, Delete and Clone, see Common actions.

See also¶

• Using the GIS app

Manage predictors¶

About predictors¶

A predictor defines how to generate an aggregate data value from an expression containing aggregate and/or event data. The predicted value may be based on:

• Data from the same period as the predicted value, and/or

• Data from periods previous to the predicted value

Data from the same period¶

A predictor can use data from the same period as the predicted value. For example, you can count the number of organisation units having a non-zero value of a data element by using a predictor expression such as:

if( #{ji7o0ILHuU2} != 0, 1, 0 )

When you run this predictor at the organisation unit level where the data is collected, it will store 1 as the predicted value if the data element has a nonzero value for that organisation unit, otherwise 0. (If the data element that you predict into does not store zeros, then zeros will not be stored in the database, to save space.) You can then sum this predicted value in analytics at a higher organisation unit level, to count the number of organisation units with a nonzero value that are under each organisation unit in the report.

Data from previous periods¶

A predictor will use data from previous periods when you specify an aggregation function such as sum() or avg(). For example, the following generator expression identifies a value that is the average plus twice the standard deviation of previous period data:

avg( #{ji7o0ILHuU2} ) + 2 * stddev( #{ji7o0ILHuU2} )

Data from the same and previous periods¶

A predictor expression can access data both from same period as the prediction and previous periods by accessing data both within an aggregate function (for previous periods), and outside any aggregate function (for the same period). For example, an expression like the following can be used to take a balance of something from the previous period (#{KOh02hHko7C}), add to that the net change in this period (#{ji7o0ILHuU2}), resulting in the balance for this period:

sum( #{KOh02hHko7C} ) + #{ji7o0ILHuU2}

The first data value is inside an aggregate expression (sum) to indicate that it is sampling previous period data (even if there is only one previous period), while the second data value is not in an aggregate function to indicate that it is referencing data from the same period.

If you want to, a predictor's output data element can be referenced in the same predictor's expression. For instance, the expression in this example could be used to predict the balance in a period, and then combine that value with the change in the next period to compute the balance for the next period. When a predictor is run across multiple periods, the periods are processed in chronological order, and the result from an earlier period may be used as input for a later period.

Predictor organisation unit levels¶

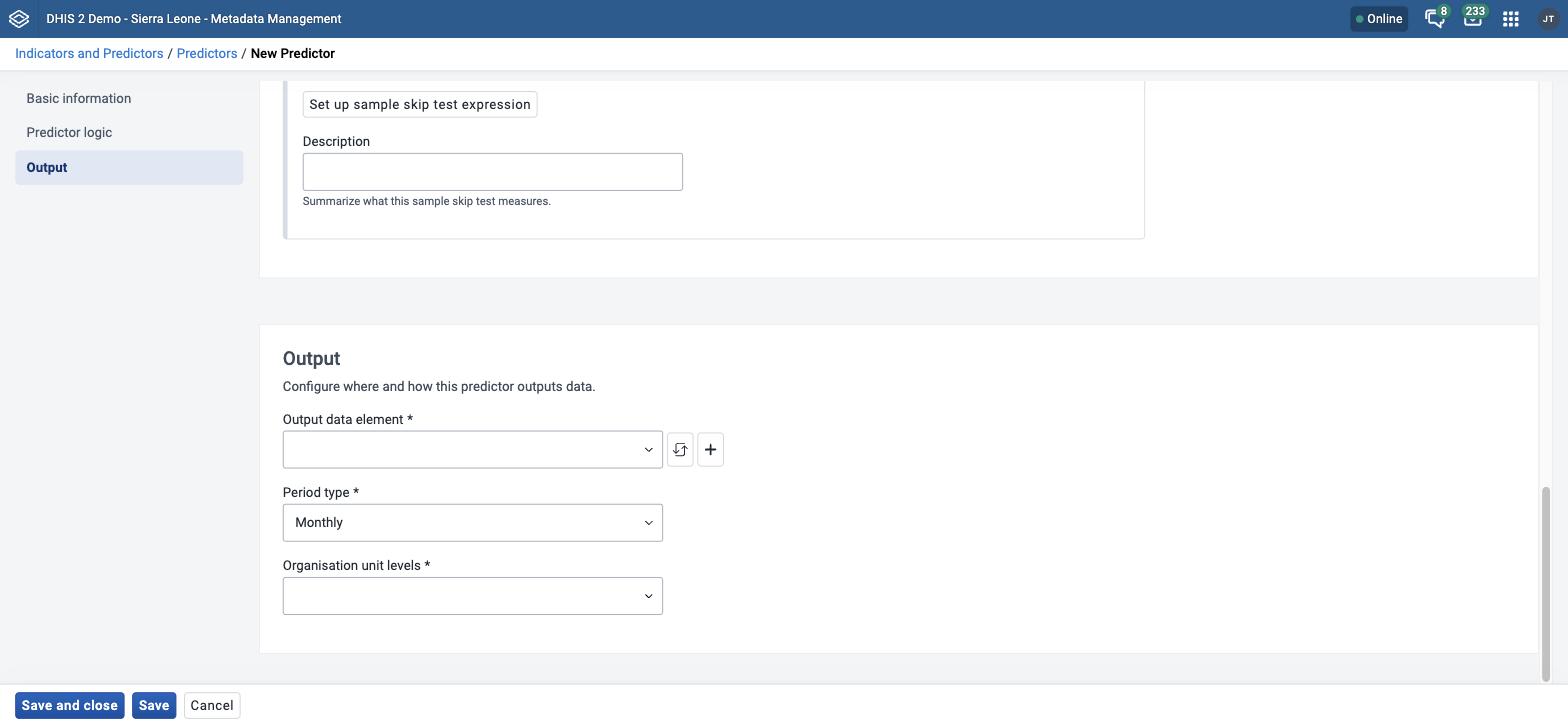

You need to select one or more organisation unit levels for a predictor's output. All values generated by the predictor are stored for organisation units at the level(s) you select. Each item in the predictor expression is the sum of the value stored for that organisation unit (if any) plus any values stored in organisation units below that one (if any).

Note

In configuring a predictor, you must choose one or more organisation unit levels at which predicted data will be output. If no level is selected, no predicted values will be generated.

Warning

If you want to use the predicted values in analytics reporting, or to make other predictions, do not select more than one organisation unit level. When you select more than one level, predictions at the higher level(s) will also include any data used in lower level(s) predictions. If the predictions from multiple levels are subsequently used in analytics, or in the expressions of other predictors, this can result in double counting because the predicted values for a higher level include the predicted values from a lower level.

You may select multiple organisation unit levels if you use the predicted values only in validation rules. For example in disease surveillance, you could have a validation rule alert if an actual value is higher than the range of expected values for that period based on previous period data. To do this, you could create a predictor to compute the average plus twice the standard deviation of previous period data. You could use a validation rule to compare this highest expected value with the actual value. You could run the predictor and validation rule at multiple levels to detect different outbreak scenarios. In one scenario, there might be a significant increase in one facility that exceeds its expected range, but the district containing that facility might not exceed its expected range because the district values are combined with many other facilities. Yet in another scenario, there may be a moderate increase in several facilities that does not exceed the expected range for each facility (because the standard deviation for each facility may be high), but it does exceed the expected range for the district (because the standard deviation for the district as a whole may be lower).

If you want to generate predictions at multiple levels, you could also use different predictors at different levels. For example, you might want to be alerted if the value at one level exceeds the average plus twice the standard deviation, but alerted at another level if it exceeds the average plus 1.8 times the standard deviation. If you want, you could configure the different predictors to have the same output data element. If you use the same output data element, this will still work with validation rules at different organisation unit levels, but you also must be careful not to use the results in analytics or in other predictor calculations to avoid double counting.

In the Metadata Management app, you manage the following predictor objects:

Sampling previous periods¶

Predictors can generate data values for periods that are in the past, present, or future. These values are based on data from the predicted period, and/or sampled data from periods previous to the predicted period.

If you need data only from the same period in which the prediction is made, then you don't need to read this section. This section describes how to sample data from periods previous to the predicted period.

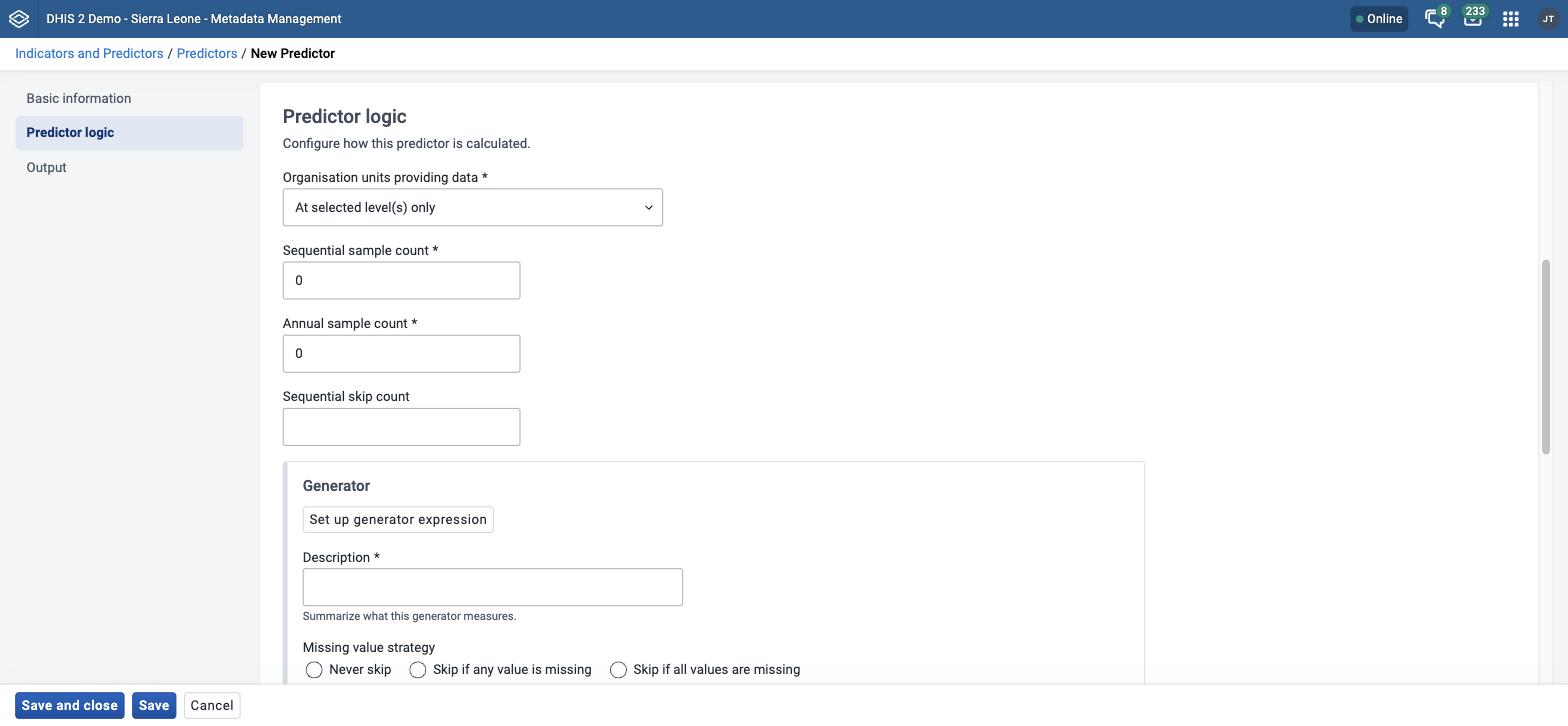

Three fields control which previous periods are sampled — Sequential sample count, Annual sample count and Sequential skip count — and a fourth, the Sample skip test, can exclude individual periods that would otherwise be included. They appear together in the predictor's Logic section:

The rest of this section explains what each one does. In the diagrams, the period being predicted is marked in one colour and the periods that get sampled in another.

Sequential sample count¶

A predictor's Sequential sample count gives the number of immediate previous periods to sample. For example, if a predictor's period type is Weekly and the Sequential sample count is 4, this means to sample four previous weeks immediately preceding the predicted value week. So the predicted value for week 9 would use samples from weeks 5, 6, 7, and 8:

If a predictor's period type is Monthly and the Sequential sample count is 4, this means to sample four previous months immediately preceding the predicted value month. So the predicted value for May would use samples from January, February, March and April:

The Sequential sample count can be greater than the number of periods in a year. For example, if you want to sample the 24 months immediately preceding the predicted value month, set the Sequential sample count to 24:

Sequential skip count¶

A predictor's Sequential skip count tells how many periods should be skipped immediately previous to the predicted value period, within the Sequential sample count. This could be used, for instance, in outbreak detection to skip one or more immediately preceding samples that might in fact contain values from the beginning of an outbreak that you are trying to detect.

For example, if the Sequential sample count is 4, but the Sequential skip count is 2, then the two samples immediately preceding the predicted period will be skipped, resulting in only two periods being sampled:

Annual sample count¶

A predictor's Annual sample count gives the number of previous years for which samples should be collected at the same time of year. This could be used, for instance, for disease surveillance in cases where the expected incidence of the disease varies during the year and can best be compared with the same relative period in previous years. For example, if the Annual sample count is 2 (and the Sequential sample count is zero), then samples would be collected from periods in the immediately preceding two years, at the same time of year.

Sequential and annual sample counts together¶

You can use the sequential and annual sample counts together to collect samples from a number of sequential periods over a number of past years. When you do this, samples will be collected in previous years during the period at the same time of year as the predicted value period, and also in previous years both before and after the same time of year, as determined by the Sequential sample count number.

For example, if the Sequential sample count is 4 and the Annual sample count is 2, samples will be collected from the 4 periods immediately preceding the predicted value period. In addition samples will be collected in the previous 2 years for the corresponding period, as well as 4 periods on either side:

Sequential, annual, and skip sample counts together¶

You can use the Sequential skip count together with the sequential and annual sample counts. When you do this, the Sequential skip count tells how many periods to skip in the same year as the predicted value period. For example, if the Sequential sample count is 4 and the Sequential skip count is 2, then the two periods immediately preceding the predicted value period will be skipped, but the two periods before that will be sampled:

If the Sequential skip count is equal to or greater than the Sequential sample count, then no samples will be collected for the year containing the predicted value period; only periods from past years will be sampled:

Sample skip test¶

You can use the Sample skip test to skip samples from certain periods that would otherwise be included, based on the results of testing an expression within those periods. This could be used, for instance, in disease outbreak detection, where the sample skip test could identify previous disease outbreaks, to exclude those samples from the prediction of a non-outbreak baseline expected value.

The Sample skip test is an expression that should return a value of true or false, to indicate whether or not the period should be skipped. It can be an expression that tests any data values in the previous period. For example, it could test for a data value that was explicitly entered to indicate that a previous period should be skipped. Or it could compare a previously predicted value for a period with the actual value recorded for that period, to determine if that period should be skipped.

Any periods for which the Sample skip test is true will not be sampled. For example:

Predictors and category option combinations (disaggregations)¶

The category option combination (disaggregation) for predictor output data is chosen in one of three ways:

1. Default category option combination.

If the predictor's output data element has no disaggregations (category combination "None", also known as the default category combination), then all predictor output data will be made in the default category option combination. In this case, predictor output data is not disaggregated.

1. Fixed category option combination

If the predictor's output data element has a category combination other than "None", you can choose a fixed disaggregation for the predictor "Output category option combo". If you do so, all output from this predictor will have this category option combination.

For example, if the output data element has a category combination of "Sex and Age", you can decide that all predictor output will go to a category option combination such as "Female under 5", "Male 5 - 10", or any other.

1. Use the input category option combo (available in v40.1 and following)

If the predictor's output data element has a category combination other than "None", you can choose "Predict according to input category option combo" as the value for "Output category option combo". If you do so, a different prediction is made for each category option combo in the output data element's category combination (that is, one prediction for "Female under 5", a second for "Male under 5", a third for "Female 5 - 10", and so on).

(In v40.1, this feature is enabled by selecting the choice "\<no value>" for "Output category option combo".)

> **Tip**
>
> In some installations, the options in a category may have changed over time.
For example, a category "Age" may have had three options "1-5", "6-10", and "over 10",
but then was changed to only have two options "10 and under" and "over 10".
Historical data may have values with any of these options.
To use a predictor with such data, you can define another category
such as "Reporting Age" with all the options ever used, such as "1-5", "6-10",
"10 and under", and "over 10". Use this category in the category combination
for the predictor's output data element. This means that all the input category
options will be reflected in the output.
>
> If you then want a single report for the output data that covers
all the disaggregations, you can use category option groups
in a category option group set. For example use a category option group
"10 and under" that contains category options "1-5", "6-10", and "10 and under".

Predictors and attribute option combinations¶

If the input data to a prediction has attribute option combinations, a different prediction will be made for each attribute option combination where there is data.

For example, you could use attribute option combinations to represent different projects on your system. The predictor will generate a value with the attribute option combination for Project A when it finds input data for Project A; it will generate a value with the attribute option combination for Project B when it finds input data for Project B; and so on.

For any input data without attribute option combinations (in other words, with the default attribute option combination), predictions are generated using the default attribute option combination. If you don't use attribute option combinations in the data, they will not be used in predictor output data.

If you use attribute option combinations and also "Predict according to input category option combo", there will be a separate prediction for each combination of disaggregation and attribute option combination. For example, there could be a prediction for Project A data for "Female under 5", a prediction for Project A data for "Male under 5", a prediction for Project B data for "Female under 5", and so on.

Create or edit a predictor¶

1. Open the Metadata Management app and click Indicators and Predictors > Predictors in the left-hand sidebar.

2. Click the + New button.

3. In the Name field, type the predictor name.

4. In the Short name field, type a short name for the predictor.

5. (Optional) In the Code field, assign a code.

6. (Optional) Type a Description.

1. Select an Output data element. Values generated by this predictor are stored as aggregate data associated with this data element and the predicted period.

   The value is rounded according to the value type of the data element: If the value type is an integer type, the predicted value is rounded to the nearest integer. For all other value types, the number is rounded to four significant digits. (However if there are more than four digits to the left of the decimal place, they are not replaced with zeros.)

2. (Optional) Select an Output category option combo. This dropdown will only show if the selected data element has a category combination other than "None". If so, you can select which disaggregation category option combo you would like to output to, or you can select "Predict according to input category option combo" (see the discussion above).

3. Select a Period type.

4. Assign one or more organisation unit levels. The output value will be assigned to an organisation unit at this level (or these levels). For aggregate data, the input values depend on the Organisation units providing data setting described below. For tracker-based data, the input values come from the organisation unit to which the output is assigned, or from any level lower under the output organisation unit.

5. Organisation units providing data controls where the input values come from for aggregate data. If "at selected levels only", only organisation units at the selected levels are included. If "At selected levels and all levels below" is selected, organisation units at the selected level(s) and all organisation units below are also included.

6. Create a Generator. The generator is the expression that is used to calculate the predicted value.



   1. Type a Description of the generator expression.

   2. Select a Missing value strategy. This sets whether the system evaluates the generator expression at all when some of the data it references is missing.

      Option	Description
      Skip if any value is missing	The expression is not evaluated if any of the values which compose it are missing, so no value is predicted. This is the default option.
      Skip if all values are missing	The expression is not evaluated only if every value which composes it is missing. If at least one value is present, the expression runs and the missing values are treated as zero.
      Never skip	The expression is always evaluated, and every missing value is treated as zero.

      The strategy decides whether the expression runs. That is separate from what the expression does with a missing value once it is running:

      Situation	Skip if any value is missing	Skip if all values are missing	Never skip
      The only item referenced is missing	No value predicted	No value predicted	Treated as 0
      One item missing, others have values	No value predicted	Missing item treated as 0	Missing item treated as 0
      isNull( item ) where item is missing	Never evaluated	true	true
      isNotNull( item ) where item is missing	Never evaluated	false	false
      firstNonNull( item, fallback ) where item is missing	Never evaluated	Returns fallback	Returns fallback

      Note

      A missing value and a zero are not the same thing. DHIS2 does not store zeros for a data element unless Store zero data values is switched on for it, so a field that looks like it holds zero may hold no value at all. If your expression needs to tell "reported zero" apart from "not reported", test with isNull() and use Skip if all values are missing or Never skip — under Skip if any value is missing the expression never runs, so the test can never fire.

   3. Enter the generator expression. You can build the expression by selecting data elements for aggregate data, program data elements, attributes or indicators, organisation unit counts, constants or reporting rates.

      To use sampled, past period data, you should enclose any items you select in one of the following aggregate functions (note that these function names are case-sensitive):

      Aggregate function	Means
      avg(x)	Average (mean) value of x
      count(x)	Count of the values of x
      max(x)	Maximum value of x
      median(x)	Median value of x
      min(x)	Minimum value of x
      percentileCont(p, x)	Continuous percentile of x, where p is the percentile as a floating point number between 0 and 1. For example, p = 0 will return the lowest value, p = 0.5 will return the median, p = 0.75 will return the 75th percentile, p = 1 will return the highest value, etc. Continuous means that the value will be interpolated if necessary. For example, percentileCont( 0.5, #{FTRrcoaog83} ) will return 2.5 if the sampled values of data element FTRrcoaog83 are 1, 2, 3, and 4.
      stddev(x)	Standard deviation of x. This function is equivalent to stddevSamp. It's suggested that you use the function stddevSamp instead for greater clarity.
      stddevPop(x)	Population standard deviation of x: sqrt( sum( (x - avg(x))^2 ) / n )
      stddevSamp(x)	Sample standard deviation of x: sqrt( sum( (x - avg(x))^2 ) / ( n - 1 ) ). Note that this value is not computed when there is only one sample.
      sum(x)	Sum of the values of x

      Note

      Any items inside an aggregate function will be evaluated for all sampled past periods, and then combined according to the formula inside the aggregate function. Any items outside an aggregate function will be evaluated for the period in which the prediction is being made.

      You can build more complex expressions by clicking on (or typing) any of the elements below the expression field: ( ) * / + - Days. Constant numbers may be added by typing them. The Days option inserts [days] into the expression which resolves to the number of days in the period from which the data came.

      You can also use the following non-aggregating functions in your expression, either inside aggregate functions, or containing aggregate functions, or independent of aggregate functions:

      Function	Means
      contains(expr, sub1, ...)	Searches an expression for one or more substrings. Returns true if the expression contains all the substrings. For example, the following are all true: contains("abcd", "abcd"); contains("abcd", "b"); and contains("abcd", "ab", "bc"). Comparisons are case-sensitive.
      containsItems(expr, item1, ...)	Searches an expression for one or more items. The expression is made up of comma-separated elements. containsItems returns true if every item exactly matches an element in the expression. For example, containsItems("abcd", "abcd") and containsItems("ab,cd", "ab", "cd") are true, but containsItems("abcd", "b") and containsItems("abcd", "ab", "bc") are false. Comparisons are case-sensitive. containsItems can be used for multi-valued data elements to see if an item is contained in the data element values.
      if(test, valueIfTrue, valueIfFalse)	Evaluates test which is an expression that evaluates to a boolean value -- see Boolean expression notes below. If the test is true, returns the valueIfTrue expression. If it is false, returns the valueIfFalse expression.
      is(expr1 in expression [, expression ...])	Returns true if expr1 is equal to any of the following expressions, otherwise false.
      isNull(item)	Returns the boolean value true if the item is null (missing), otherwise returns false. The item can be any selected item from the right (data element, program data element, etc.).
      isNotNull(item)	Returns true if the item value is not missing (not null), otherwise false.
      firstNonNull(item [, item ...])	Returns the value of the first item that is not missing (not null). Can be provided any number of arguments. Any argument may also be a numeric or string literal, which will be returned if all the previous items have missing values.
      greatest(expression [, expression ...])	Returns the greatest (highest) value of the expressions given. Can be provided any number of arguments.
      least(expression [, expression ...])	Returns the least (lowest) value of the expressions given. Can be provided any number of arguments.
      log(expression [, base ])	Returns the natural logarithm (base e) of the numeric expression. If an integer is given as a second argument, returns the logarithm using that base.
      log10(expression)	Returns the common logarithm (base 10) of the numeric expression.
      normDistCum(x [,mean [,stddev]])	Returns the cumulative distribution function (CDF) value for x given the normalized distribution described by the mean and stddev. Equivalent to Excel NORM.DIST(x,mean,stddev,TRUE) or LibreOffice NORMDIST(x,mean,stddev,1). If stddev is not given, it is computed from past sampled values of x. If neither mean nor stddev are given, they are computed from past sampled values of x. See examples.
      normDistDen(x [,mean [,stddev]])	Returns the probability density function (PDF) value for x given the normalized distribution described by the mean and stddev. Equivalent to Excel NORM.DIST(x,mean,stddev,FALSE) or LibreOffice NORMDIST(x,mean,stddev,0). If stddev is not given, it is computed from past sampled values of x. If neither mean nor stddev are given, they are computed from past sampled values of x. See examples.
      null	Returns no result. For example, if( #{FH8ab5Rog83}<0, null, 1 ) returns nothing if the data element value is less than 0, otherwise 1.
      orgUnit.ancestor(orgUnitUid [, orgUnitUid ...])	Returns true if the organisation unit is a descendant of any of the (1 or more) organisation units, otherwise false.
      orgUnit.dataSet(dataSetUid [, dataSetUid ...])	Returns true if the organisation unit is assigned to any of the (1 or more) data sets, otherwise false.
      orgUnit.group(ouGroupUid [, ouGroupUid ...])	Returns true if the organisation unit is a member of any of the (1 or more) organisation unit groups, otherwise false.
      orgUnit.program(programUid [, programUid ...])	Returns true if the organisation unit is assigned to any of the (1 or more) programs, otherwise false.
      removeZeros(expression)	Returns nothing if the expression value is 0, otherwise returns the expression value.
      .maxDate(yyyy-mm-dd)	For a data element (not program data), value from periods ending on or before a maximum date.
      .minDate(yyyy-mm-dd)	For a data element (not program data), value from periods starting on or after a minimum date.

      Boolean expression notes: A boolean expression must evaluate to true or false. The following operators may be used to compare two values resulting in a boolean expression: \<, >, !=, ==, >=, and \<=. The following operators may be used to combine two boolean expressions: && or the keyword and (logical and), and || or the keyword or (logical or). The unary operator ! or the keyword not may be used to negate a boolean expression.

      Generator expression examples:

      Generator expression	Means
      sum(#{FTRrcoaog83.tMwM3ZBd7BN})	Sum of the sampled values of data element FTRrcoaog83 and category option combination (disaggregation) tMwM3ZBd7BN
      avg(I{GSae40Fyppf}) + 2 * stddevSamp(I{GSae40Fyppf})	Average of the sampled values of program indicator GSae40Fyppf plus twice its sample standard deviation
      sum(D{IpHINAT79UW.eMyVanycQSC}) / sum([days])	Sum of all sampled values of data element eMyVanycQSC from program IpHINAT79UW divided by the number of days in all sample periods (resulting in the overall average daily value)
      sum(#{FTRrcoaog83}) + #{T7OyqQpUpNd}	Sum of all sampled values of data element FTRrcoaog83 plus the value of data element T7OyqQpUpNd in the period being predicted for (includes all disaggregations)
      1.2 * A{IpHINAT79UW.RKLKz1H20EE}	1.2 times the value of attribute RKLKz1H20EE of program IpHINAT79UW, in the period being predicted for
      if(isNull(#{T7OyqQpUpNd}), 0, 1)	If the data element T7OyqQpUpNd is null in the period being predicted, then 0, otherwise 1
      if(is(#{jeiTh8ahyae} in 'NEGATIVE','UNKNOWN'), 0, 1)	If the data element jeiTh8ahyae has value 'NEGATIVE' or 'UNKNOWN' then 0, otherwise 1
      percentileCont(0.5, #{T7OyqQpUpNd})	Continuous 50th percentile of the sampled values for data element T7OyqQpUpNd. Note that this is the same as median(#{T7OyqQpUpNd})
      if(count(#{T7OyqQpUpNd}) == 1, 0, stddevSamp(#{T7OyqQpUpNd}))	If there is one sample value present for data element T7OyqQpUpNd, then 0, otherwise the sample standard deviation of these sample values. (Note that if no samples are present then the stddevSamp returns no value, so no value is predicted.)
      normDistCum(#{T7OyqQpUpNd})	The cumulative distribution function for the current period value of data element T7OyqQpUpNd based on the normalized distribution defined by the mean and standard deviation of past sampled periods of data element T7OyqQpUpNd
      normDistCum( #{T7OyqQpUpNd}, median(#{T7OyqQpUpNd}) )	The cumulative distribution function for the current period value of data element T7OyqQpUpNd based on the distribution defined by the median (instead of the mean) and standard deviation of past sampled periods of data element T7OyqQpUpNd
      normDistCum( #{T7OyqQpUpNd}, avg(#{T7OyqQpUpNd}), stddev(#{T7OyqQpUpNd}) )	Same as normDistCum( #{T7OyqQpUpNd} )
      normDistDen( #{T7OyqQpUpNd}, avg(#{IKahz1Quie3}), stddev(#{IKahz1Quie3}) )	The probability density function for the current period value of data element T7OyqQpUpNd based on the distribution defined by the mean and standard deviation of past sampled periods of the different data element IKahz1Quie3
      normDistDen( median(#{T7OyqQpUpNd}), avg(#{IKahz1Quie3}), stddev(#{IKahz1Quie3}) )	The probability density function for the median of past sampled values of data element T7OyqQpUpNd based on the distribution defined by the mean and standard deviation of past sampled periods of the different data element IKahz1Quie3
      #{T7OyqQpUpNd}.minDate(2022-10-1)	Value on or after 1-Oct-2022
      #{T7OyqQpUpNd}.maxDate(2022-12-31)	Value on or before 31-Dec-2022
      #{T7OyqQpUpNd}.minDate(2022-10-1).maxDate(2022-12-31)	Value between 1-Oct-2022 and 31-Dec-2022

7. (Optional) Create a Sample skip test. The sample skip test tells which previous periods if any to exclude from the sample.

   1. Type a Description of the skip test.

   2. Enter the sample skip test expression. You can build the expression from the same items as the generator expression. As with the generator, you may click on (or type) any of the elements below the expression field: ( ) * / + - Days.

      The non-aggregating functions described above for generator expressions may also be used in skip tests.

      The expression must evaluate to a boolean value of true or false. See Boolean expression notes above.

      Skip test expression examples:

      Skip test expression	Means
      #{FTRrcoaog83} > #{M62VHgYT2n0}	The value of data element FTRrcoaog83 (sum of all disaggregations) is greater than the value of data element M62VHgYT2n0 (sum of all disaggregations)
      #{uF1DLnZNlWe} > 0	The value of data element uF1DLnZNlWe (sum of all disaggregations) is greater than zero
      #{FTRrcoaog83} > #{M62VHgYT2n0} || #{uF1DLnZNlWe} > 0	The value of data element FTRrcoaog83 (sum of all disaggregations) is greater than the value of data element M62VHgYT2n0 (sum of all disaggregations) or the value of data element uF1DLnZNlWe (sum of all disaggregations) is greater than zero

8. Enter a Sequential sample count value.

   This is for how many sequential periods the calculation should go back in time to sample data for the calculations.

9. Enter an Annual sample count value.

   This is for how many years the calculation should go back in time to sample data for the calculations.

10. (Optional) Enter a Sequential skip count value.

    This is how many sequential periods, immediately preceding the predicted value period, should be skipped before sampling the data.

11. Click Save.

Predictions by Data Element Group¶

You can use a single predictor to operate on all the data elements in a group instead of a different predictor for each data element. This can be used, for example, in logistics management when a data element is used for each commodity and a category option combination is used for each count related to that commodity.

The syntax is:

forEach ?de in :DEG:degUid --> main expression

where:

The predictor will execute once for each data element in the data element group. For each data element, instances of the variable in the main expression are replaced by that data element. The same data element is also used as the predictor output data element. The predicted value will be written to that data element using the configured output category option combination.

The predictor must be configured with an output data element, but it is effectively ignored when the predictor is run. It is suggested that you configure the predictor with one of the data elements in the data element group that the predictor will use. That way you can select a valid output category option combination for that data element.

At the time the predictor is created, the data element group must contain at least one data element of the type that you will use. (The data type of the data element is used during syntax checking of the predictor.)

Example 1¶

You have data elements that represent various commodities, all belonging to a data element group with UID aIMu0nieph7.

You have category option combinations with the following UIDs:

The following predictor generator expression will compute the stock balance at the beginning of the next period as ( starting balance + restock - used - lost ):

forEach ?de in :DEG:aIMu0nieph7 -->
sum( #{?de.Gvoecom5muL} + #{?de.CWa6eew5uco} - #{?de.nthohhie8Ba} - #{?de.Faey8Iphooy} )

The predictor configuration includes:

The predictor will execute once for each data element in the data element group. Because the aggregation function sum() is used in the predictor generator expression, all the values in the expression will be fetched from the previous period (since the sequential sample count is 1). The predictor will write out the starting balance for each data element for the periods within the predictor run start and end date, for organisation units at the selected level(s).

Predictions are always made forward through time. The starting balance predicted for one period can be used as an input to compute the starting balance of the following period.

Example 2¶

If you want to make predictions for the same period as the input data, just omit the aggregation function such as sum(). Adding to the previous example, say you have another category option combination that computes the net inventory change during the period:

You can use the following expression to compute the inventory change as ( restock - used - lost ):

forEach ?de in :DEG:aIMu0nieph7 -->
#{?de.CWa6eew5uco} - #{?de.nthohhie8Ba} - #{?de.Faey8Iphooy}

The output category option combo is:

Since there is no aggregation function such as sum() around the expression elements, the input data is taken from the same period as the predictor output.

For Show details, Sharing settings, Translate, Delete and Clone, see Common actions.

Create or edit a predictor group¶

1. Open the Metadata Management app and click Indicators and Predictors > Predictor groups in the left-hand sidebar.

2. Click the + New button.

3. Type a Name. This field needs to be unique.

4. (Optional) In the Code field, assign a code. This field needs to be unique.

5. (Optional) Type a Description.

6. Double-click the Predictors you want to assign to the group.

7. Click Save.

For Show details, Sharing settings, Translate, Delete and Clone, see Common actions. Predictor groups support the same actions as individual predictors, including Run now.

Manage push reports¶

Note

Push reports are not available in the Metadata Management app. If your DHIS2 instance still uses push reports, configure them in the legacy Maintenance app — see Manage push reports.

Manage external map layers¶

Note

Managing external map layers is planned to move into the Maps app and will not be replicated in the Metadata Management app. External map layers can still be configured in the legacy Maintenance app — see Manage external map layers.

Manage SQL views¶

The SQL View functionality of DHIS2 will store the SQL view definition internally, and then materialize the view when requested.

Database administrators must be careful about creating database views directly in the DHIS2 database. For instance, when the resource tables are generated, all of them will first be dropped and then re-created. If any SQL views depend on these tables, an integrity violation exception will be thrown and the process will be aborted.

The SQL views are dropped in reverse alphabetical order based on their names in DHIS2, and created in regular alphabetical order. This allows you to have dependencies between SQL views, given that views only depend on other views which come earlier in the alphabetical order. For instance, "ViewB" can safely depend on "ViewA". Otherwise, having views depending on other view result in an integrity violation error.

Creating a new SQL view¶

To create a new SQL view, open the Metadata Management app and click Other > SQL views in the left-hand sidebar, then click the + New button.

The "Name" attribute of the SQL view will be used to determine the name of the table that DHIS2 will create when the view is materialized by the user. The "Description" attribute allows one to provide some descriptive text about what the SQL view actually does.

The "SQL type" attribute allows the creation of three kinds of views: - A "View" is stored in the database and regenerated when queried - A "Materialized View" is stored in the database and its results are cached in the database - A "Query" is not stored in the database

Finally, the "SQL query" should contain the SQL view definition.

Only SQL "SELECT" statements are allowed and certain sensitive tables (i.e., user information) are not accessible.

Press "Save" to store the SQL view definition. If you created a "View" or a "Materialized View", you must also run Run query to finish the creation of the SQL view.

Keep in mind that the columns returned by the used SELECT statement become table columns, that means they must be of a valid table column type. When functions are used it might be necessary to explicitly cast the result to a type by adding ::{TYPE} after the function.

For example, instead of jsonb_each (which would return a record type that cannot be a column type) use jsonb_each_text and cast the result to text, like in the below sample:

select jsonb_each_text(eventdatavalues)::text from ...

SQL views that call other SQL views¶

If you wish to make a SQL view that can be called be other SQL views, then its SQL type must be either "View" or a "Materialized View" (not "Query"). It also must have Run query run on it before being called.

For instance, if you created a view named Data element count with SQL type "View" and this SQL:

select count(*) as count from dataelement;

...then you could run Run query from the options menu and create a second SQL view named More than 100 data elements with this SQL:

select case when count > 100 then 1 else 0 end as result from _view_data_element_count;

SQL View management¶

In order to utilize the SQL views, simply click the view and from the options menu, choose Run query. Once the process is completed, you will be informed that a table has been created. The name of the table will be provided, and is composed from the "Description" attribute provided in the SQL view definition. Once the view has been generated, you can view it by clicking the view again, and selecting View results.

For Clone, see Common actions.

Tip

If you have a view which depends on another view, be careful about how the views are named. When analytics is run on the DHIS2 server, all views are dropped and then recreated: they are dropped in reverse alphabetical order and recreated in regular alphabetical order. So a view must come after the view it depends on alphabetically — for example "ViewB" can safely depend on "ViewA". If you name them the other way round, analytics may fail because the dependency will not exist yet when the dependent view is recreated.

Manage analytics table hooks¶

The Analytics Table Hooks functionality of DHIS2 stores SQL code that is run during different phases of the analytics table generation process.

See also /api/analyticsTableHooks in the Developer documentation.

Creating a new analytics table hook¶

To create a new analytics table hook, open the Metadata Management app and click Other > Analytics table hooks in the left-hand sidebar, then click the + New button.

Press "Save" to store the analytics table hook.

Manage Locales¶

It is possible to create custom locales in DHIS2. In addition to the locales available through the system, you might want to add a custom locale such as "English" and "Zambia" to the system. This would allow you to translate metadata objects to local languages, or to account for slight variants between countries which use a common metadata definition.

The locale is composed of a language along with a country. Open the Metadata Management app and click Other > Locales in the left-hand sidebar, then click the + New button. Select the desired values and click Create Locale. This custom locale will now be available as one of the translation locales in the system.

Note

A locale cannot be edited once created.

Manage group membership¶

The legacy Maintenance app had a separate Metadata group editor screen for adding objects to groups in bulk. The Metadata Management app does not have an equivalent screen, and one is not planned. Group membership is instead edited from whichever side of the relationship you happen to be working on, using the standard transfer list:

• One object into many groups — open the object's own edit screen and assign it to groups there. For example, the Data element groups field in Create or edit a data element puts one data element into as many data element groups as you need, without leaving the data element.
• Many objects into one group — open the group's edit screen and assign the members there. For example, Create or edit a data element group assigns any number of data elements to a single group in one pass.

The same pattern applies to the other grouped object types in this chapter: category option groups, indicator groups, organisation unit groups, option groups and predictor groups, and their corresponding group sets.

To see or change which objects are currently in a group, open the group's list from the left-hand sidebar — for example Data elements > Data element groups — and edit the group you want.

Tip

When you are assigning members to a group, use the Show only unassigned items checkbox above the Available list, where it is offered, to hide objects that already belong to another group of the same type. See Using a transfer list component.
