NTD Human Rabies Surveillance - Aggregate Design¶

Background and Purpose¶

The Human Rabies Disease-Specific Dataset Module offers a detailed framework tailored for tracking, reporting, and analyzing human rabies cases within countries' health management information systems (HMIS). As an extension of the core NTD Overarching Module, this dataset is designed for countries and facilities with advanced data collection and analytical capabilities, enabling a more granular approach to routine rabies surveillance and control.

Intended for use by DHIS2 implementers at national, regional, and local levels, this module provides a structured dataset aligned with WHO’s recommendations and best practices for human rabies surveillance. It allows for flexibility in adapting the metadata to align with national guidelines and specific workflows, thereby supporting countries in meeting their own reporting standards and regulatory requirements.

The Human Rabies Disease-Specific Dataset encompasses data points essential for comprehensive surveillance, including case classification, patient demographics, exposure details, treatment and post-exposure prophylaxis (PEP) administration, and outcomes. This structure promotes the collection of high-resolution data that can facilitate more accurate tracking of rabies transmission patterns, assess PEP efficacy, and inform targeted interventions. Countries and regions adopting this dataset will have the capacity to produce in-depth analyses, enabling more responsive decision-making and enhancing the effectiveness of rabies control and elimination efforts.

By utilizing this specialized dataset, countries can advance their contributions toward the WHO 2021–2030 NTD Road Map goals WHO, 2021, specifically the target to eliminate human rabies deaths in endemic countries by 2030. Through standardized, high-quality data collection and reporting, health systems can strengthen their response to rabies, ultimately reducing the disease’s impact on affected populations.

System Design Overview¶

Data set Structure¶

Exposures and cases in the data entry form are disaggregated by WHO Wound Categories, GNARF age groups, sex and type of animal.

• WHO Wound Category I is defined as animal licks on intact skin, touching or feeding the animal.

• WHO wound category II is defined as minor scratches or abrasions, nibbling of uncovered skin.

• WHO wound category III is defined as transdermal bites or scratches, licks on broken skin, contamination of mucous membrane with saliva, exposure to a bat.

• Clinically diagnosed cases are defined as cases that show clinical symptoms aligned with the human case definition and have a reliable history of contact to an animal susceptible to rabies.

• Laboratory confirmed cases are defined as cases that have a positive laboratory result.

• Post-exposure prophylaxis (PEP) is defined as wound washing and at least 1 anti-rabies vaccination.

• GNARF age groups are defined as follows: <1 years, 1-4 years, 5-14 years, 15-24y, 25-49years, 50-64years, 65+y

• Types of animals include dog, cat, bat, livestock, mammalian wildlife, other mammals and unknown animals.

Human Rabies Surveillance aggregate data set consists of four main sections with sub-sections.

• Reported animal exposures in humans

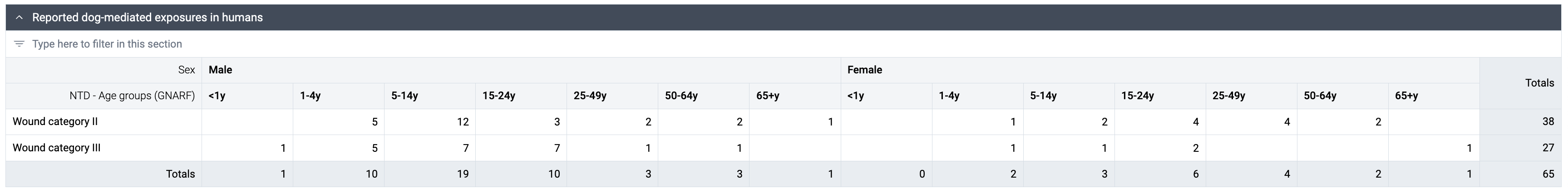

• Reported dog-mediated exposures in humans

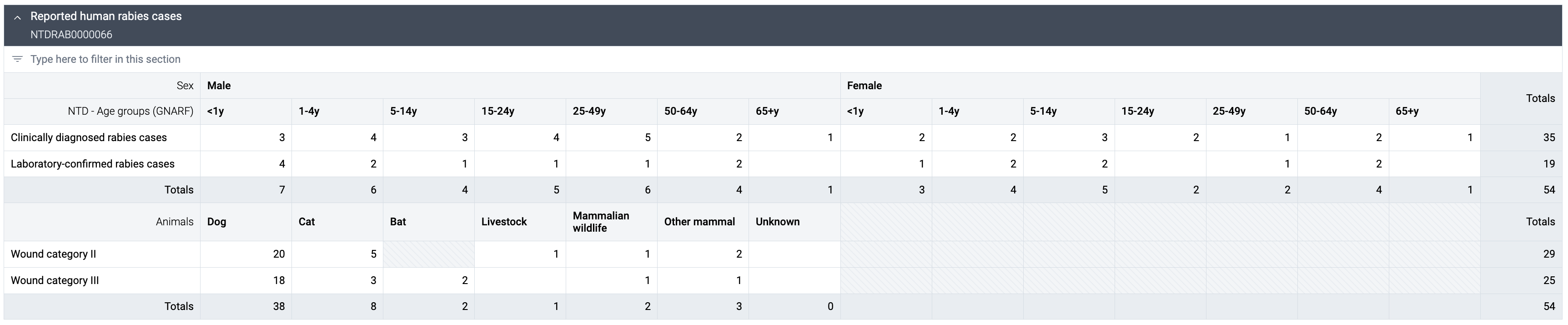

• Reported human rabies cases

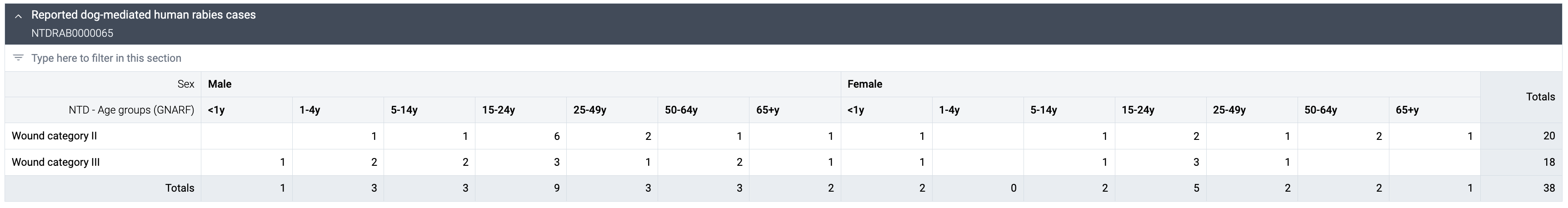

• Reported dog-mediated human rabies cases

• Human rabies deaths

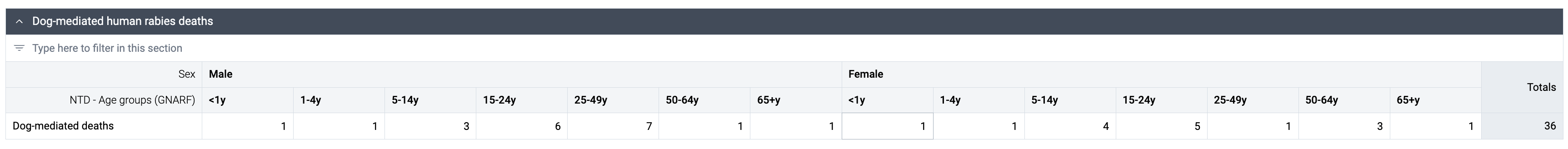

• Dog-mediated human rabies deaths

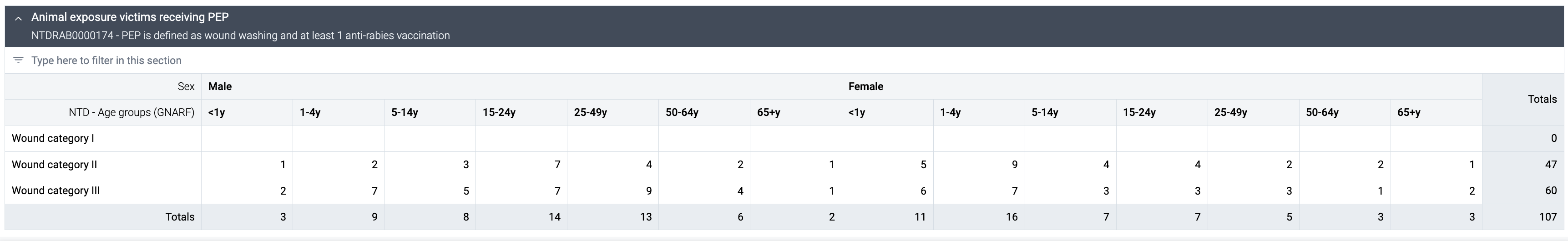

• Animal exposure victims receiving PEP

User Groups¶

As part of the package configuration, user groups have been created to be used to manage metadata sharing settings. Core metadata that use these sharing settings include data sets, dashboards, indicators and data elements. The three user groups are listed below:

User group	Dashboard	Metadata	Data
NTD - Admin	Can edit and view	Can edit and view	Can view only
NTD - Access	Can view only	Can view only	Can view only
NTD - Data capture	No access	Can view only	Can capture and view

Dashboard Design¶

Human Rabies Surveillance agregate module includes a dashboard that includes visualizations, tables and maps covering the following sections:

• Human Rabies key statistics
• Progress towards elimination
• Burden
• Post-exposure Prophylaxis (PEP)

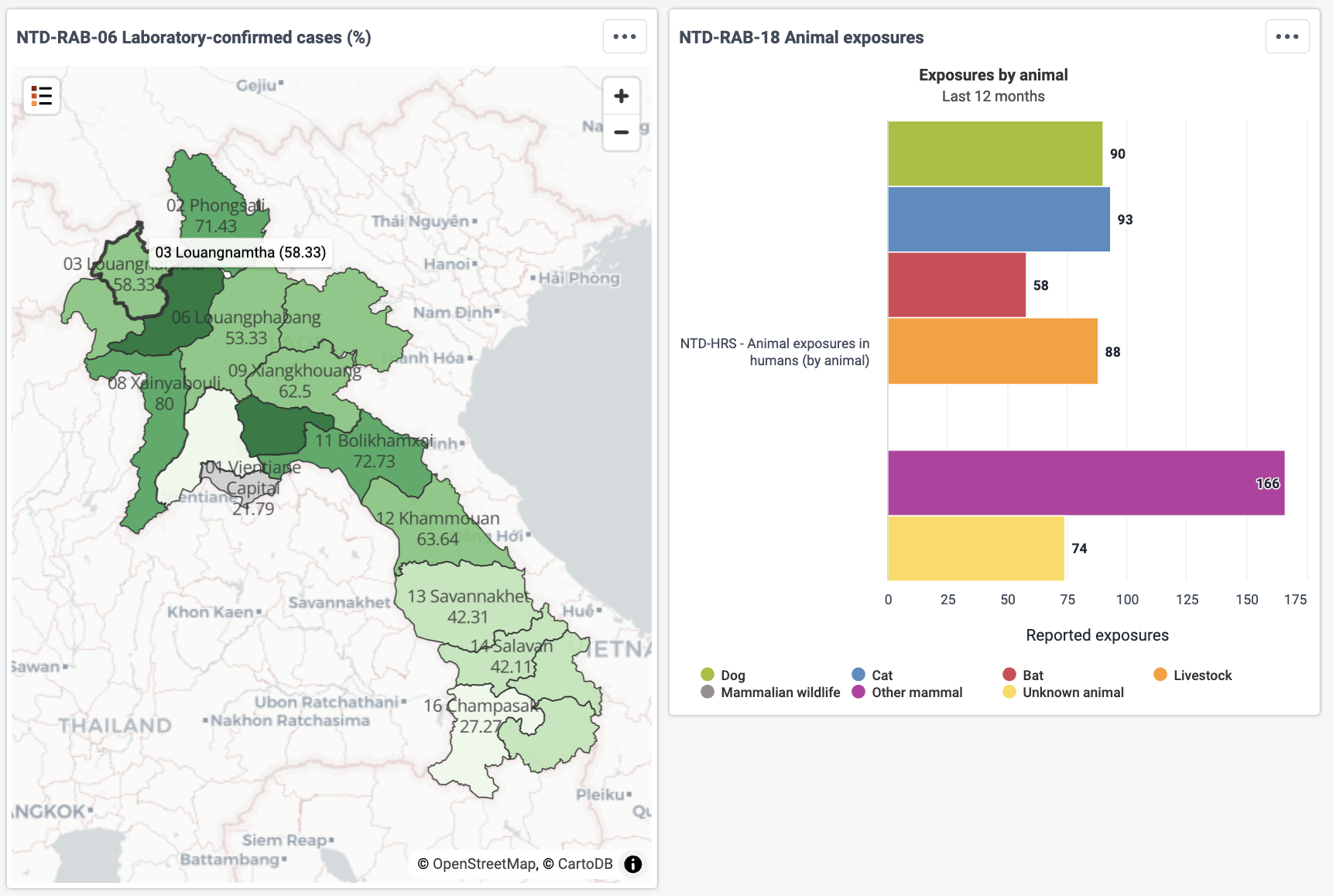

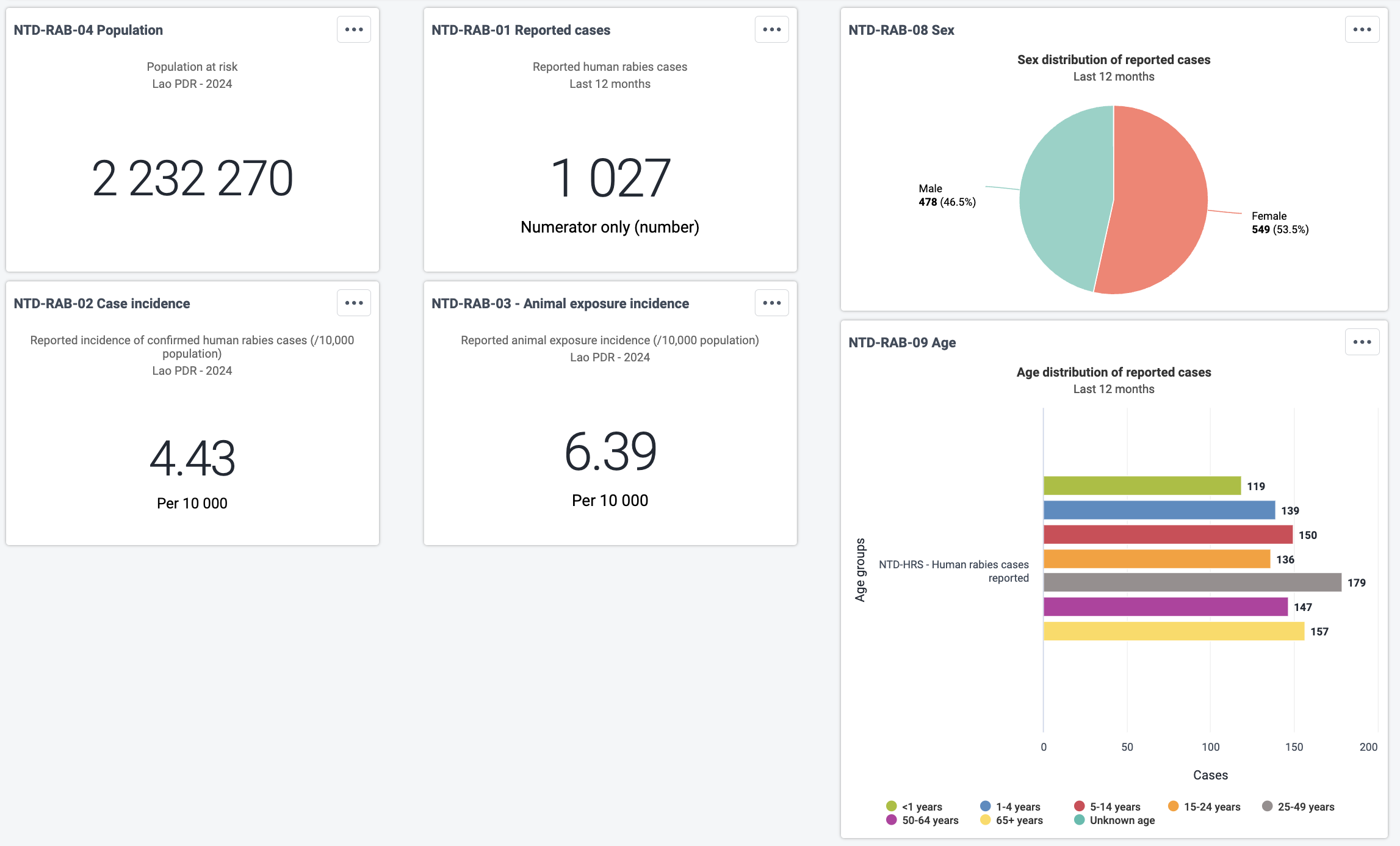

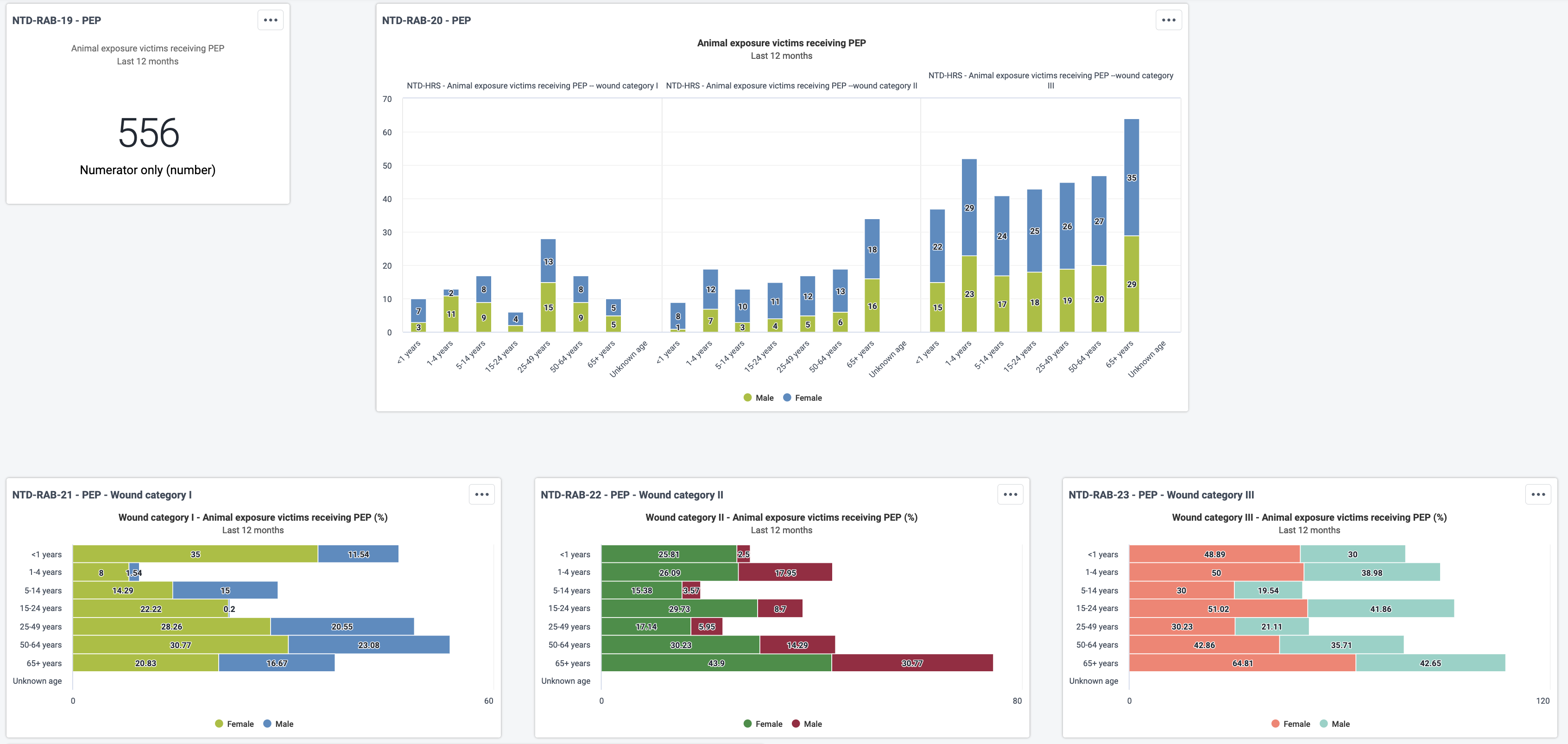

Examples of dashboard items are provided below:

Integration with the overarching NTD Module¶

Data collected in the Human Rabies Surveillance data set can be used to feed the data in the overarching Neglected Tropical Diseases data set. The mapping between the two data sets is provided below.

The metadata package contains a Data Exchange configuration that can be run in the core Data Exchange app. Data exchange can be triggered manually or scheduled to run periodically in the Scheduler app.

The mapping between Human Rabies Surveillance data set and the Human Rabies section in the overarching Neglected Tropical Diseases module is provided in the table below:

Human Rabies Surveillance data set		Neglected Tropical Diseases data set
Metadata object/s	Type	Metadata object/s	Type
NTD-HRS - Laboratory-confirmed rabies cases	Data element	NTD-RAB - Lab-confirmed human rabies cases	Data element
NTD-HRS - PEP received - wound category II	Data element	NTD-RAB - Humans receiving PEP - wound category II	Data element
NTD-HRS - PEP received - wound category III	Data element	NTD-RAB - Humans receiving PEP - wound category III	Data element
NTD-HRS - Human rabies deaths	Data element	NTD-RAB - Human rabies deaths	Data element
NTD-HRS - Dog-mediated human rabies deaths	Data element	NTD-RAB- Human dog-mediated rabies deaths	Data element
NTD-HRS - Dog-mediated human rabies deaths	Data element	NTD-RAB- Human dog-mediated rabies deaths	Data element
NTD-HRS - Animal exposures in humans, categories II and III, <01y, female NTD-HRS - Animal exposures in humans, categories II and III, <01y, male NTD-HRS - Animal exposures in humans, categories II and III, 01-04y, female NTD-HRS - Animal exposures in humans, categories II and III, 01-04y, male NTD-HRS - Animal exposures in humans, categories II and III, 05-14y, female NTD-HRS - Animal exposures in humans, categories II and III, 05-14y NTD-HRS - Animal exposures in humans, categories II and III, 15-24y, female NTD-HRS - Animal exposures in humans, categories II and III, 15-24y NTD-HRS - Animal exposures in humans, categories II and III, 25-49y, female NTD-HRS - Animal exposures in humans, categories II and III, 25-49y NTD-HRS - Animal exposures in humans, categories II and III, 50-64y, female NTD-HRS - Animal exposures in humans, categories II and III, 50-64y NTD-HRS - Animal exposures in humans, categories II and III, 65+y, female NTD-HRS - Animal exposures in humans, categories II and III, 65+y	Indicators	NTD-RAB - Human animal exposure/bite cases with wound category II and III	Data element
NTD-HRS - Dog-mediated exposures in humans, categories II and III, <01y, female NTD-HRS - Dog-mediated exposures in humans, categories II and III, <01y, male NTD-HRS - Dog-mediated exposures in humans, categories II and III, 01-04y, female NTD-HRS - Dog-mediated exposures in humans, categories II and III, 01-04y, male NTD-HRS - Dog-mediated exposures in humans, categories II and III, 05-14y, female NTD-HRS - Dog-mediated exposures in humans, categories II and III, 05-14y, male NTD-HRS - Dog-mediated exposures in humans, categories II and III, 15-24y, female NTD-HRS - Dog-mediated exposures in humans, categories II and III, 15-24y, male NTD-HRS - Dog-mediated exposures in humans, categories II and III, 25-49y, female NTD-HRS - Dog-mediated exposures in humans, categories II and III, 25-49y, male NTD-HRS - Dog-mediated exposures in humans, categories II and III, 50-64y, female NTD-HRS - Dog-mediated exposures in humans, categories II and III, 50-64y, male NTD-HRS - Dog-mediated exposures in humans, categories II and III, 65+y, female NTD-HRS - Dog-mediated exposures in humans, categories II and III, 65+y, male	Indicators	NTD-RAB - Human dog exposure/bite cases with wound category II and III	Data element
NTD-HRS - Human rabies cases reported, <01y, female NTD-HRS - Human rabies cases reported, <01y, male NTD-HRS - Human rabies cases reported, 01-04y, female NTD-HRS - Human rabies cases reported, 01-04y, male NTD-HRS - Human rabies cases reported, 05-14y, female NTD-HRS - Human rabies cases reported, 05-14y, male NTD-HRS - Human rabies cases reported, 15-24y, female NTD-HRS - Human rabies cases reported, 15-24y, male NTD-HRS - Human rabies cases reported, 25-49y, female NTD-HRS - Human rabies cases reported, 25-49y, male NTD-HRS - Human rabies cases reported, 50-64y, female NTD-HRS - Human rabies cases reported, 50-64y, male NTD-HRS - Human rabies cases reported, 65+y, female NTD-HRS - Human rabies cases reported, 65+y, male	Indicators	NTD-RAB - Human rabies cases	Data element
NTD-HRS - Dog-mediated human rabies cases reported, <01y, female NTD-HRS - Dog-mediated human rabies cases reported, <01y, male NTD-HRS - Dog-mediated human rabies cases reported, 01-04y, female NTD-HRS - Dog-mediated human rabies cases reported, 01-04y, male NTD-HRS - Dog-mediated human rabies cases reported, 05-14y, female NTD-HRS - Dog-mediated human rabies cases reported, 05-14y, male NTD-HRS - Dog-mediated human rabies cases reported, 15-24y, female NTD-HRS - Dog-mediated human rabies cases reported, 15-24y, male NTD-HRS - Dog-mediated human rabies cases reported, 25-49y, female NTD-HRS - Dog-mediated human rabies cases reported, 25-49y, female NTD-HRS - Dog-mediated human rabies cases reported, 50-64y, female NTD-HRS - Dog-mediated human rabies cases reported, 50-64y, male NTD-HRS - Dog-mediated human rabies cases reported, 65+y, female NTD-HRS - Dog-mediated human rabies cases reported, 65+y, male	Indicators	NTD-RAB - Dog-mediated human rabies cases	Data element

Integration with the Human Rabies Surveillance Tracker¶

If implemented, DHIS2 Human Rabies Surveillance tracker may replace registers and tally sheets to populate all variables in the aggregate data set at any hierarchical level. The metadata package contains a Data Exchange configuration that can be run in the core Data Exchange app. Data exchange can be triggered manually or scheduled to run periodically in the scheduler app. Data exghange may be configured to send data internally within one instance of DHIS2 or externally to push data from the tracker instance to the instance with the aggregate data set. Default configuration is set to internal monthly data exchange on facility level.
