Trainer’s Guide to Tracker Maps - Event and TEI Layer¶

What is this guide?¶

This guide is a support document for DHIS2 Academy trainers for the session “Maps.” This session follows the standard Academy training approach with

1. a live demo session where the trainer demonstrate and explain the features, and

2. praktické sezení se cvičeními, kde si účastníci procvičí stejné funkce.

Tato příručka pomůže školiteli připravit se na živou ukázku. Sekce „Živá ukázka krok za krokem“ obsahuje podrobný návod všech kroků, které je třeba předvést, s vysvětleními a snímky obrazovky, které by měly být snadno sledovatelné. Použijte to při přípravě na živé ukázkové sezení.

K dispozici je také Rychlý průvodce, který uvádí kroky velmi stručně a je míněn jako průvodce vyhledáváním nebo „cheatsheet“ BĚHEM dema, aby si trenér zapamatoval všechny kroky a průběh dema.

Learning objectives for this session¶

1. Describe the maps app as it relates to tracker data
2. Describe the limitations of maps when working with tracker data
3. Create maps using tracker data within:
4. The event layer
5. The tracked entity layer

Time Requirements¶

• Live Demo: 2 demos, 15 minutes each
• Hands-on Exercises: 2 exercises, 15 minutes each
• Assignment:

Pozadí¶

This session is a mix of a review of what the participants would have learned through the event fundamentals academy and also introduces the tracked entity instance layer. This is because working with the event layer when using tracker data is no different then when you are using event data, which would have been covered in great detail within event fundamentals. The tracked entity layer is a new concept however currently has several limitations. This limitations will be discussed within the demonstration.

Note that the thematic layer is discussed during the program indicators session, not during this session.

Preparations¶

This session will see you creating a number of visualizations. Ensure that you have run analytics in the demo database you are using and that all the data is being populated correctly. If you find that data is not present for the correct period or year, please contact the training content team so we can advise how to move the data correctly.

Před prezentací byste měli zvážit, jak si celé demo projít. Poté byste si měli vzít stručnou příručku a doplnit ji o další poznámky, které jste si udělali během procházení ukázky. Pokud zjistíte jakékoli změny, které mohou být vyžadovány, nebo dodatečné vysvětlení, které by mohlo být užitečné v rámci relace, uveďte prosím obsah týmu školení, abychom mohli vyhodnotit, jak nejlépe začlenit tuto zpětnou vazbu do materiálu.

Každá vizualizace, o jejíž vytvoření budete požádáni, byla uložena a měla by být sdílena pro veřejné zobrazení. Pokud si nejste jisti obsahem některého z vizualizací, můžete si každou otevřít a zkontrolovat, jak byla vytvořena.

Hlavním materiálem, který bude studentovi poskytnut s podrobnými kroky pro neklasifikovaná cvičení, a také s klíčovými sděleními ze sezení, jsou také příručka pro studenta a shrnutí relace. Projděte si je také, abyste se ujistili, že tyto klíčové body během své demonstrace dokážete probrat.

Best Practices¶

Před zahájením demonstrace mějte prosím na paměti, že nejdůležitější je, aby je publikum sledovalo, takže nezapomeňte publiku položit otázky, abyste si ověřili, že je sledují. Pokud je něco nejasné, vraťte se a projděte si to pomalu. Pokud nemáte čas na všechny kroky, je lepší některé kroky zkrátit, než jít rychle, zatímco nikdo nerozumí.

V online prostředí budete pravidelně dělat přestávky, abyste jim umožnili provádět různá neklasifikovaná cvičení, abyste udrželi pozornost.

In an in-person setting, the participants may be doing the demo with you at the same time. In this scenario, it is ideal if there are other trainer's moving around the room to support participant's as it will be difficult for the trainer leading the session to answer many individual questions during the demonstrations.

Quick Guide¶

1. Review how tracker co-ordinates are captured during both registration and within an event
2. Create a map using the event layer

Create the map with the following inputs

• Layer Type : Org unit
• Level 3 (District)
• Layer Type : Event (CBS Location)
• Data:
  • Program : Case-based Surveillance
  • Stage : Stage 1 - Diagnostic and clinical information
  • Coordinate field : CBS Location
  • Event status : all
• Období: Tento rok
• Org Units : User sub-x2-units
• Filter :
  • Data item : Fever = Yes

• Style :

  • Group events
  • GEN - Sex

  Note that dealing with event or tracker data when using the event layer is exactly the same

• Create a map using the TEI layer with relationships

• Layer 1 Type : Org Unit - User sub - units

• Layer 2 Type : Tracked Entity
• Data:
  • Tracked Entity Type : Person
  • Program : Case-base Surveillance
  • Program status : all
• Relationships :
  • Display tracked entity relationships = yes
  • Relationship type : Has Been in Contact with
• Period :
  • Program/Enrollment date: the date a tracked entity was registered or enrolled in a program: Decemeber 31, 2023 - July 17, 2024
• Org Units : 12 Khammouan
  • Selection mode : Selected and all below
• Style : Radius in meters = 100

Discuss the limitations of this layer in its current state (no relationships across other programs, can't just collect the co-ordinate during registration and combine this with data within one of the events)

1. Review the recap slide
2. Have them perform the assignment

Live Demo step by step¶

Review how tracker co-ordinates are captured during both registration and within an event¶

To start this demonstration, let us discuss where we get the co-ordinates that are used on the TEI and event layer in regards to tracker data.

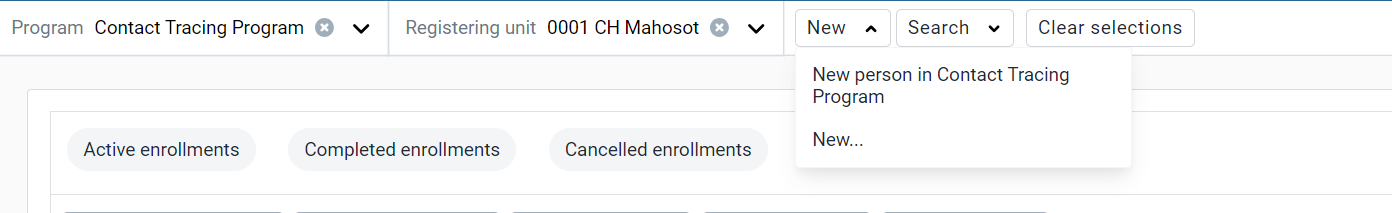

Go to capture and select any Level 4 OU (facility) along with the Contact tracing program. You will see a list of TEIs after making this selection

Proceed to register a new person into this program

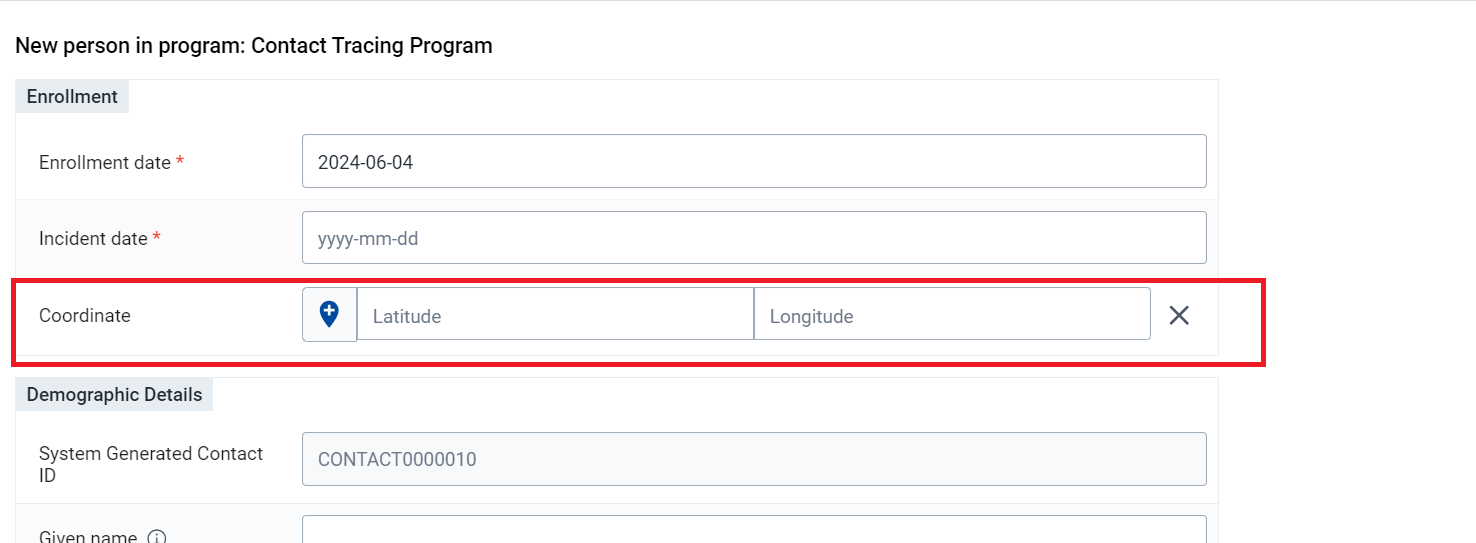

In this page, you will notice the co-ordinate field present. This co-ordinate field is for the tracked entity and can be used by the tracked entity layer within the maps app.

On android, you are able to capture the co-ordinate using your location; while on the web you must enter or select it from the map.

Cancel the registration and open up one of the existing records in the Contact tracing Program; this will take you to their TE dashboard in tracker capture.

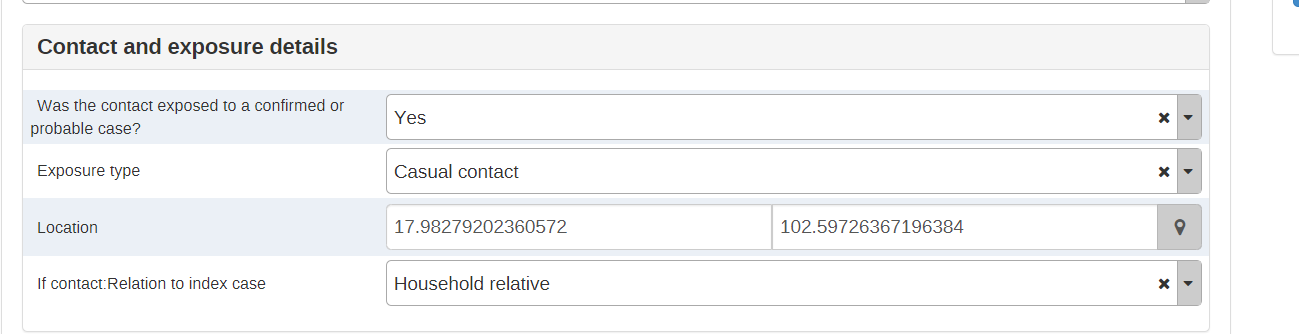

Review the program stage Initial contact. Each of these events will have a field called "Location"

This is the co-ordinate field that is used to display data within the event layer and is captured in the same way as the registration co-ordinate (on android, you are able to capture the co-ordinate using your location; while on the web you must enter it or select it from the map).

In cases where it is needed, scripts can be used to transfer the tracked entity coordinate into each event so it does not need to be captured manually each time; however this is highly situational dependent.

Create a map using the event layer¶

As a review, you can create a map using the event layer.

We can create a map using data from the Case based surveillance Program for Fever cases from Diagnostic and clinical information.

Open the maps app, then open the map "CBS - Fever cases, this year, by home location." This the map that you will create. You can explain the layout to the participants before continuing.

Clear your inputs by going to File -> New.

Create the map using the event layer with the following inputs:

• Layer Type : Org unit
• Level 3 (District)
• Layer Type : Event (CBS Location)
• Data:
• Program : Case-based Surveillance
• Stage : Stage 1 - Diagnostic and clinical information
• Coordinate field : CBS Location
• Event status : all
• Období: Tento rok
• Org Units : User sub-x2-units
• Filter :
• Data item : Fever = Yes
• Style :
• Group events
• GEN - Sex

The map should look like this

Data Tab

Period Tab

Org Units Tab

Filter Tab

Style Tab

As the events are grouped together, and you have chosen to style them by sex, we see the doughnut charts when we are zoomed out. As you zoom in however you will start to see the individual locations of each of these events. Select an event to see the details.

As we can see, using this layer is the same whether we are using event or tracker data. As with our other analyses, we do have to keep in mind that the event layer will be displaying all the events within a program on this map; so in the case of repeated event data you can have multiple events on the map representing each of these events.

Review how to save a map¶

Go to the file menu and select the "Save" option

Give the map a name and a description and select "Save"

Review how to download a map¶

Select the download option from within the app. This will open up a new dialog. Position your legend where you want it and select "Download" to download the map. This will download a PNG file of the map to your downloads folder.

STOP! Have them perform Exercise 1¶

Create a map using the TEI layer with relationships¶

We will now create a map using data from the Case-Based Surveillance Program where we will display relationships on the map.

Open the map "CBS - Cases and Contacts" This is the map that you will create. It is showing a person along with their relationships. In the context of this program, it means it is displaying index cases along with their contacts. The red circle in the map is the index case (or where the relationship was initiated from) and the black circles are the contacts.

Clear your inputs by going to File -> New.

Create the map using the tracked entity layer with the following inputs:

• Layer 1 Type : Org Unit - User sub - units
• Layer 2 Type : Tracked Entity
• Data:
• Tracked Entity Type : Person
• Program : Case-base Surveillance
• Program status : all
• Relationships :
• Display tracked entity relationships = yes
• Relationship type : Has Been in Contact with
• Period :
• Select periods when last updated
  • the date a tracked entity was registered or enrolled in a program: January 1, 2024 - July 13, 2024
• Org Units : 12 Khammouan
• Selection mode : Selected and all below

The map should look like this

Boundary Layer

Tracked Entity Layer

Data Tab

Relationships Tab

Explain the relationships tab in a bit more detail as you are configuring this part of the map. This allows you to show relationships between tracked entities, but has a large warning message as it is still in development.

Period Tab

Org Units Tab

Style Tab

Explain the style tab in a bit more detail as you are reviewing it. You can see here you can select the colour of tracked entity, its related entities and the line used to represent the relationship.

The "Buffer" option in the Style tab is used to create a buffer zone around geographical points, lines, or areas (polygons). This buffer zone visually represents a specified distance from the selected geographic feature and can be useful for various analytical purposes.

This allows you to customize the output of these relationship outputs slightly when creating the map layer.

Discuss the map output along with limitations of this layer¶

As we can see, we are able to display tracked entities along with their relationships using this layer. We have already discussed that we are only able to display relationships within the same program currently, but in addition you are not able to apply any event data to filter out the tracked entities that you are showing. Therefore, the tracked entity layer can not be combined with any information from the events within a program stage.

To je nešťastné, protože to vyžaduje, abychom shromažďovali souřadnice pro každou událost v rámci trasovacího programu, místo abychom byli schopni shromáždit souřadnice jen jednou a použít je ve spojení s našimi daty událostí.

This is something that is being worked on however and is expected in future releases.

STOP! Have them perform Exercise 2 in the learner's guide.¶

Recap¶

Před provedením úkolu si s nimi na konci sezení prohlédněte rekapitulační snímek

Assignment¶

After you have completed all demos and they have finished the exercises, have them complete the graded assignment for this session. If you find you are running out of time, assign the graded assignment to them and ask them to complete it outside of the live scheduled session.
