Learner’s Guide to Reports¶

ما هو هذا الدليل؟¶

This guide contains all exercises and detailed steps to perform them related to the use of the reports app for the Analytics Tools Level 1 academy. Please perform each of the exercises when prompted to by your instructors.

الأهداف التعليمية لهذه الجلسة¶

Create a data set report
Create a reporting rate summary
Describe how reporting rates can be viewed in other applications
Create an organisation unit distribution report
Describe how resources can be uploaded

Time needed for this session¶

Live demo: 2 demos, ~ 20 mins each

Hands-on exercises: 5 exercises, 5-15 mins each

Table of Contents/Quick Guide¶

Exercises¶

Exercise 1 - Data Set Report¶

Access the reports app¶

Apps -> Reports

Review the reports app¶

The modules that are available here are described in this presentation:

Open the data set report module¶

This is an example of a data set report from the Immunization data set.

Run the data set report¶

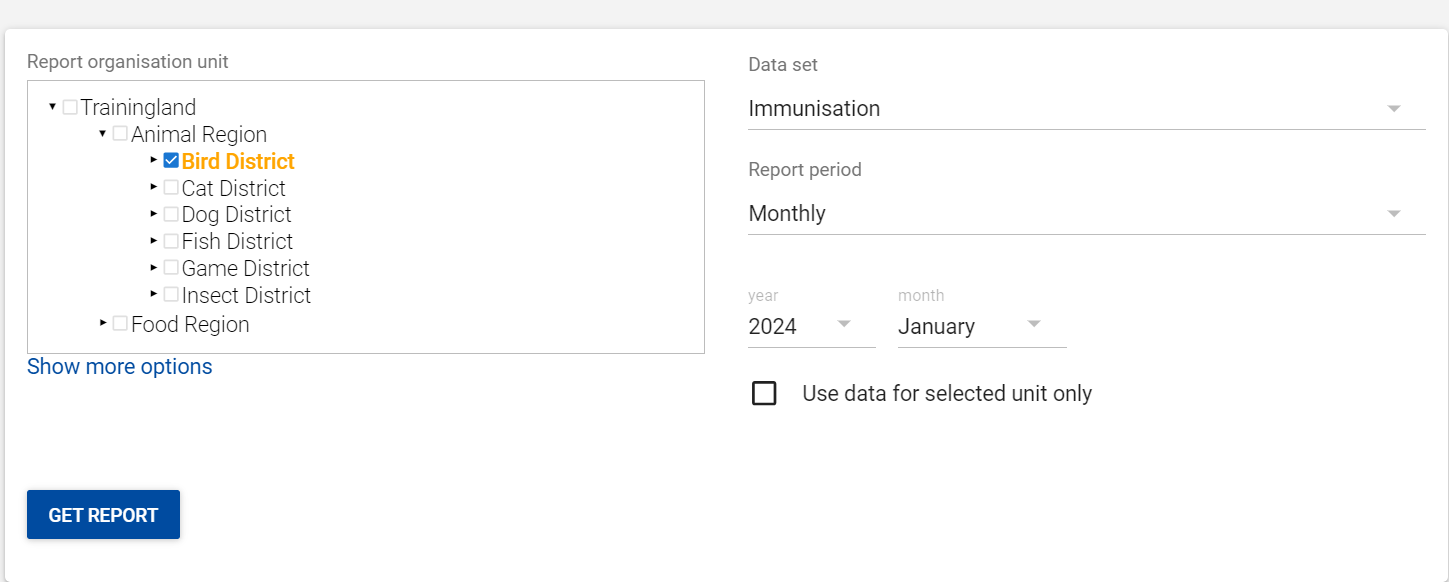

Select inputs for the Org unit, Data Set and Period. In this example, the data set report is being run using the following:

Org Unit : Bird District
Data Set : Immunisation
Report period : Monthly, Year: 2022, Month: October

After selecting your inputs, select “Get report”

Review the data set report¶

Review the report with the group. Note that this is an output of the data set exactly as it appears in data entry. Depending on your outputs, it may have aggregated values from various org units and time periods and placed them into the data set for review.

Review download options¶

You are able to download the data set report as either an excel or PDF file

Exercise 2 - Run a data set report within an orgunit group¶

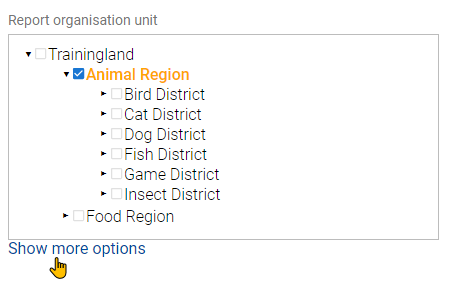

Create another data set report. This time select the “Show more options” button to show available org unit group sets.

After selecting “Show more options” you will see the available org unit group sets

Select an orgunit group in addition to the other inputs for the report¶

Select inputs for the Org unit, Data Set and Period. In this example, the data set report is being run using the following:

Org Unit : Animal Region
Data Set : Immunisation
Report period : Monthly, Year: 2024, Month: January

In addition, the “Public” Org unit group has been selected from the “Ownership” group set. Select “Get report” in order to retrieve the report.

Review the data set report¶

The data set report is the same as before, however now it has filtered out the aggregation. Only data from public facilities has been included in the data set report.

Exercise 3 - Reporting Rate Summary¶

Select the Reporting Rate Summary module from within the reports app¶

OR

Reviewing the reporting rate summary concept¶

This is available within the accompanying slides if you require additional review. Reporting rate summary allows you ro check the system-defined completeness and timeliness for one period of any aggregate data set in the system. There are several drawbacks to the reporting rates as calculated by DHIS2, but may often be used as a best estimate in a number of circumstances.

This is an example summary from the Immunisation data set.

Run the reporting rate summary¶

Select inputs for the Org unit, Data Set and Period. In this example, the reporting rate summary is being run using the following:

Org Unit : Dog District
Data Set : Immunisation
Report period : Yearly, Year: 2023

Note that, just like for data set reports you are also able to select “show more options” and select additional org unit group filters if you need to. In this example, none have been selected but the same principles as data set reports would apply.

After selecting your inputs, select “Get report”

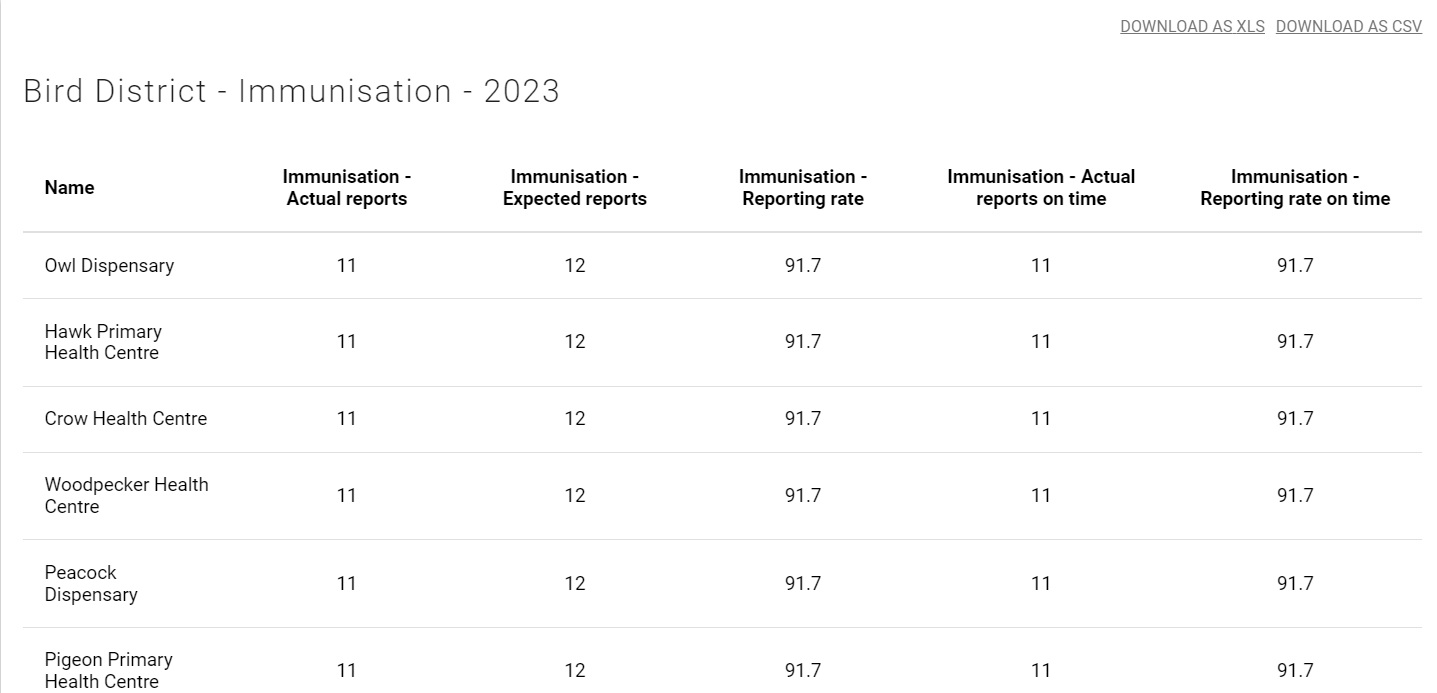

Review the reporting rate summary¶

Review the report with the group and explain the outputs.

Review download options¶

You are able to download the data set report as either an excel or PDF file

Exercise 4 - Reporting Rates in Other Tools¶

The reporting rate summary is a very user-friendly tool; however one critical disadvantage of the reporting summary is that only one period can be viewed at a time. In addition, the report rate summary does not respect the organisation unit “closing date;” this may cause a problem if you have permanently closed a facility but the data set you are reviewing is still assigned to that facility.

We can also review reporting rates in charts, tables or maps and even combine them with other data by using combination charts.

Open the chart “EPI - Completeness - 2023 months” in Data Visualizer¶

Here we can see that we review completeness over many periods.

Edit the data selection¶

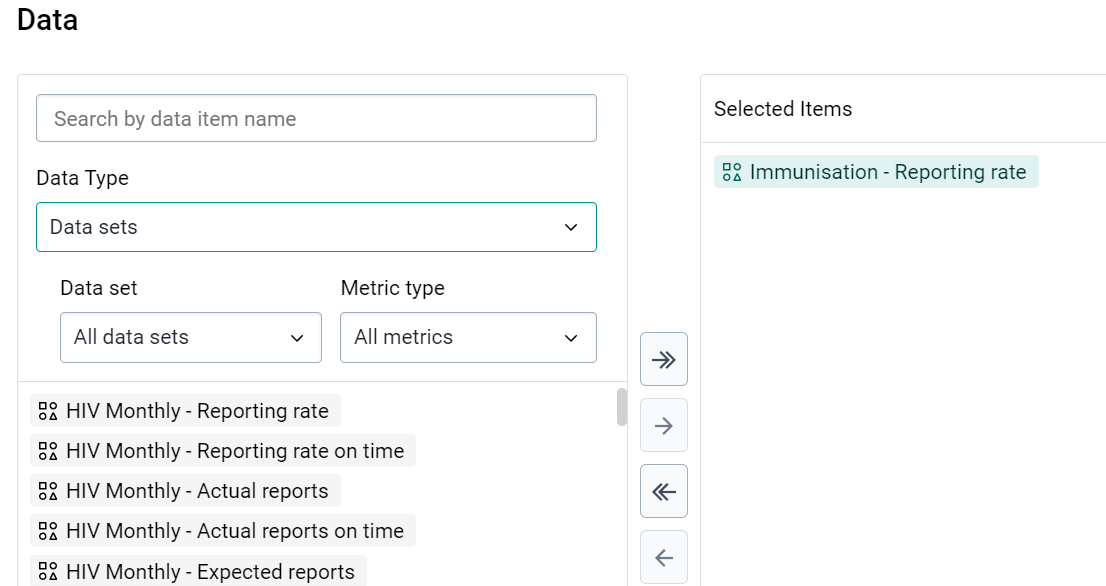

If we open the data tab and select “Data sets” you will be able to see the various metrics associated with data set reporting rates.

Add in the reporting rate “HIV Monthly Reporting rate” as an example.

Select Update to review the chart. Another advantage when using these apps is that you can view reporting rates not only across multiple periods, but also across multiple data sets at the same time.

Exercise 5 - Org Unit Distribution¶

Select the “Org Unit Distribution report” module from within the reports app¶

OR

Review the org unit distribution report¶

This is available within the accompanying slides if you need to review it. This report allows you to review the number of organisation units that belong to an organisation unit group. It is a good tool to verify this count is correct and to determine if you can use these groups in indicator values and expect the correct result.

This is an example from the Ownership group set.

Run the org unit distribution report¶

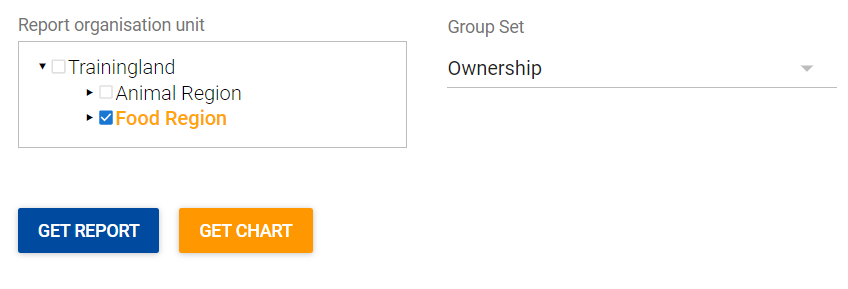

Select inputs for the Org unit and Org unit Group Set. In this example, the org unit dist. report is being run using the following:

Org Unit : Food Region
Group Set : Ownership

After selecting your inputs, select “Get report”

Review the org unit distribution report¶

Review the report and explain the outputs.

Review download options¶

You are able to download the data set report as either an excel or PDF file

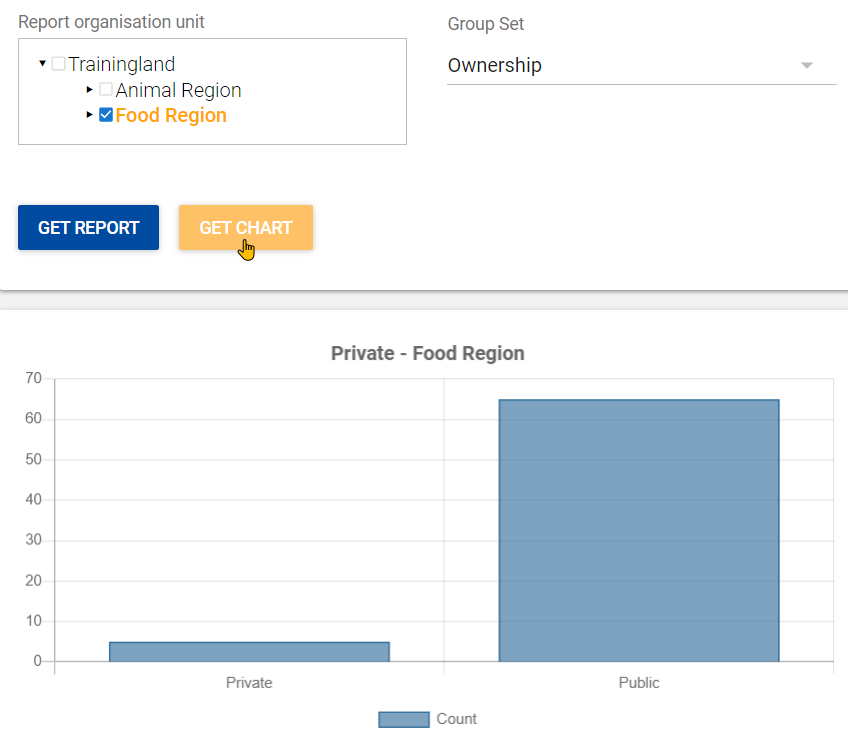

Run the report again by selecting “Get Chart”¶

You can also output org unit distribution via chart options; we can see that it is not nearly as detailed however as a breakdown by the child orgunits is not available in this view.
